1x32 PLC Fiber Splitter with LC/APC Simplex Adapter Input and 2.0mm Pigtails Output for FTTH FTTX Applications
Datos del producto:
| Lugar de origen: | Shénzhen, China |
| Nombre de la marca: | DF/Takfly/Neutral |
| Certificación: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Número de modelo: | TK-PLC-1x16-SA-1M |
Pago y Envío Términos:
| Cantidad de orden mínima: | 100 |
|---|---|
| Precio: | US$0.01~US$13.99/PC |
| Detalles de empaquetado: | Embalaje estándar de exportación |
| Tiempo de entrega: | 5-7 días laborables |
| Condiciones de pago: | LC, T/T, Unión Occidental |
| Capacidad de la fuente: | 5000PCS/SEMANA |
|
Información detallada |
|||
| Nombre del producto: | Divisor de fibra PLC 1x32 con entrada de adaptador simple LC/APC y salida de coletas de 2,0 mm, SM G | Tipo de fibra: | G.657A |
|---|---|---|---|
| Longitud de onda: | 1260 ~ 1650nm | Diámetro del cable: | 2,0 mm |
| Aporte: | Adaptador LC simplex | Producción: | Cable flexible de 2,0 mm |
| Longitud del cable: | el 1M, el 1.5M, modificaron para requisitos particulares | Tamaño de embalaje: | 100X80X10m m |
| Max. Uniformity: | 1.5 dB | Solicitud: | Ftth fttb fttx pon Catv |
| Resaltar: | 1x32 Split Ratio PLC Fiber Splitter,LC/APC Simplex Adapter Input Fiber Optic PLC Splitter,2.0mm Pigtails Output Optical PLC Splitter |
||
Descripción de producto

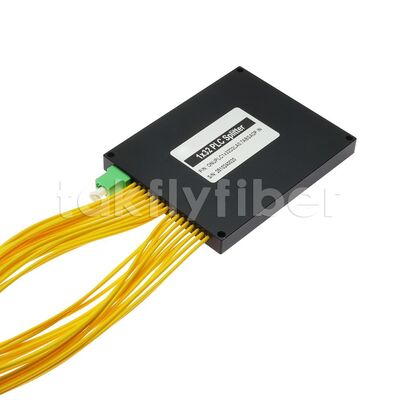

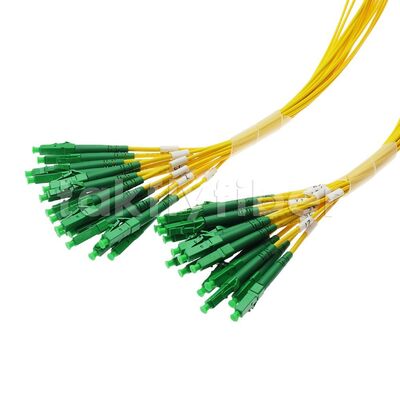

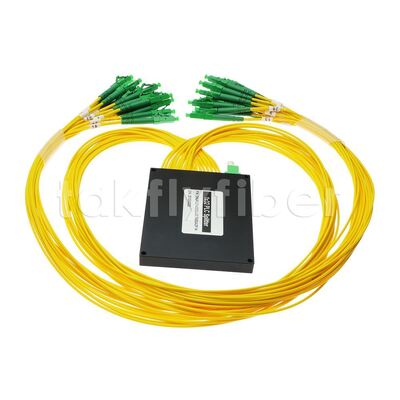

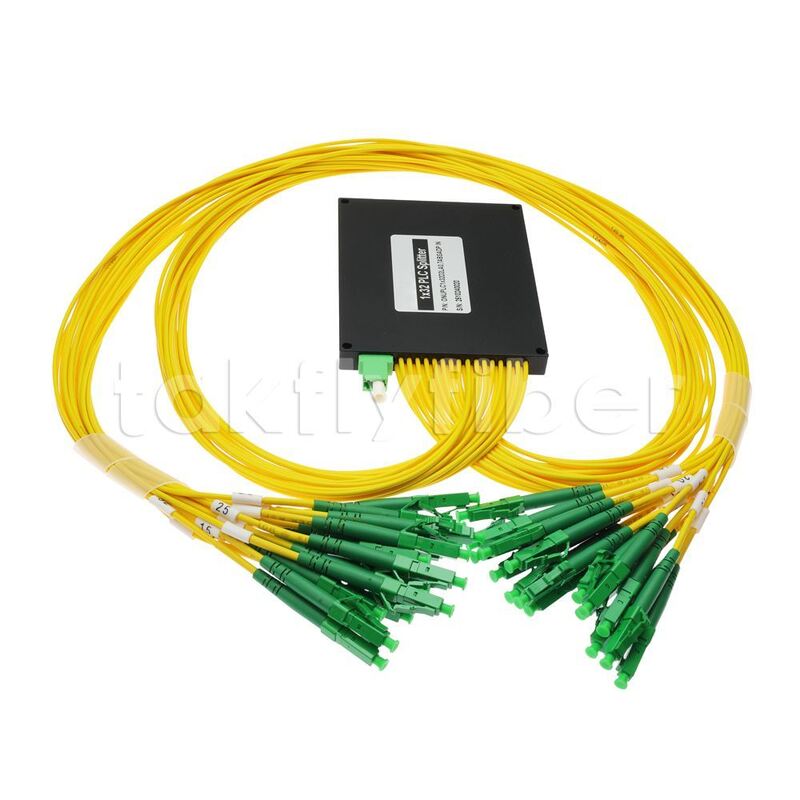

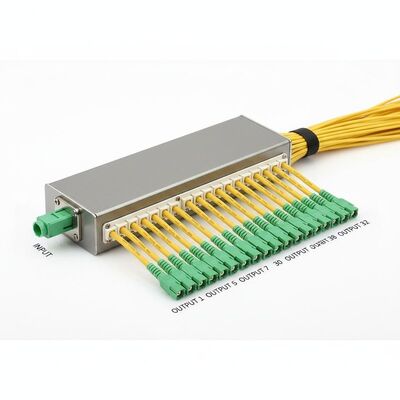

1x32 PLC Fiber Splitter with LC/APC Simplex Adapter Input and 2.0mm Pigtails Output
This PLC fiber splitter features LC/APC simplex adapter input and 2.0mm pigtails output, constructed with SM G657A1 fiber and housed in an aluminum alloy box for optimal protection and installation convenience.
Product Overview
Planar lightwave circuit (PLC) splitters are optical power management devices fabricated using silica optical waveguide technology. Designed to distribute optical signals from Central Office (CO) to multiple premise locations, this 1x32 splitter equally divides a single input signal at 1260-1650nm into 32 output signals. It utilizes bend insensitive fiber (BIF) with a 10mm bend radius to minimize loss and provides complete protection for inner optical components and cables.
Key Features
- Broadband operation wavelength range
- Low insertion loss and PDL
- Compact, space-efficient design
- Excellent channel-to-channel uniformity
- High reliability and stability
- Superior environmental stability
- Good uniformity across all channels
Applications
- Fiber to The Home (FTTH)
- Passive optical networks (PON)
- Local Area Networks (LAN)
- Cable Television (CATV)
- Test Equipment
- FTTX Systems
- PON Networks
- CATV Links
- Optical Signal Distribution
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating Wavelength | 1260 ~ 1650 nm |
| Fiber Type | ITU-T G657A1, G657A2 and G.652D |
| Max. Insertion Loss (1x32) | 16.8 dB |
| Max. Uniformity (1x32) | 1.5 dB |
| Min. Return Loss | 55 dB |
| Max. PDL (1x32) | 0.3 dB |
| Max. Temperature Stability | 0.5 dB (Typical 0.3 dB) |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
Packaging Dimensions
Available in various packaging options including basic metal box (60×7×4 mm for 1x32), mini module metal box (80×20×6 mm for 1x32), and module plastic box (120×80×18 mm for 1x32) configurations.
Why Choose TAKFLY
- More than 25 years manufacturing experience in fiber optic products
- Over 450 assembly workers with 6+ years experience
- 10+ R&D Engineers dedicated to product development
- 16 sets of Germany imported injection machines and production lines
- 30+ sets of testing machines including OTDR, 3D, VFL, IL&RL test instruments
- OEM branding accepted
- Regular exhibition participation worldwide
Quality Control
- Spot check raw material incoming inspection before production
- Full inspection after every individual process completion
- Full inspection of production half-done stages
- Full inspection of finished products before packing
- Spot check before shipping
Delivery Information
- Samples: 1-3 working days
- Mass production orders: 3-7 working days
- Packaging: Plastic bag, carton and pallet options available
