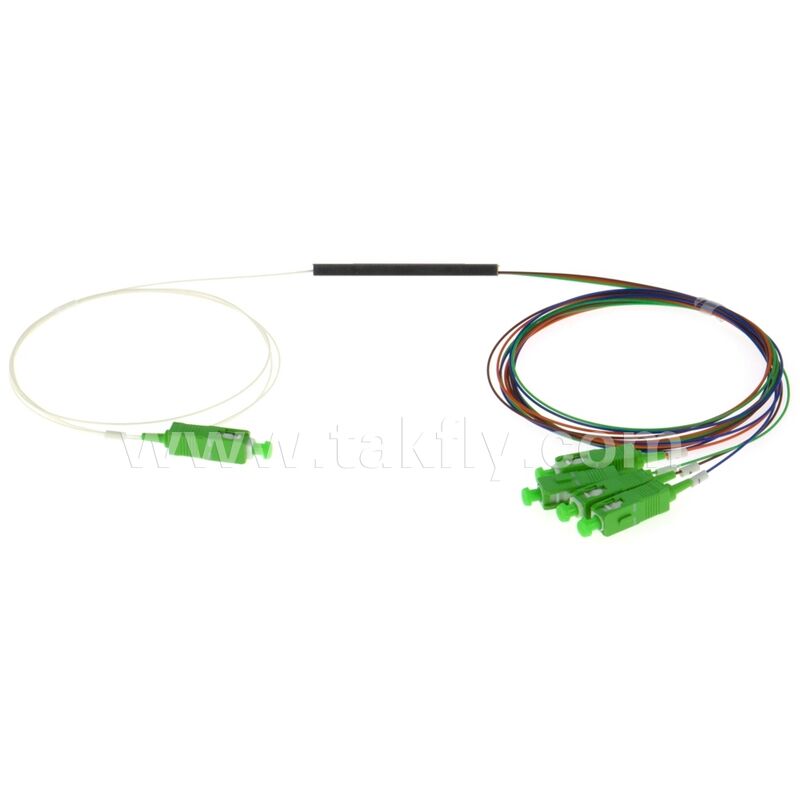

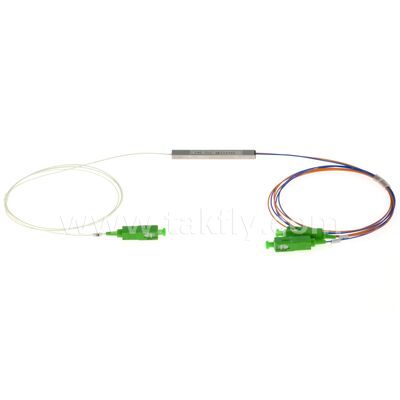

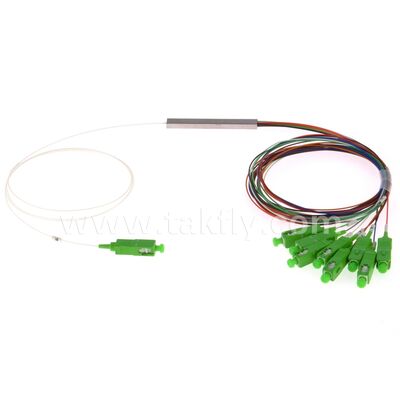

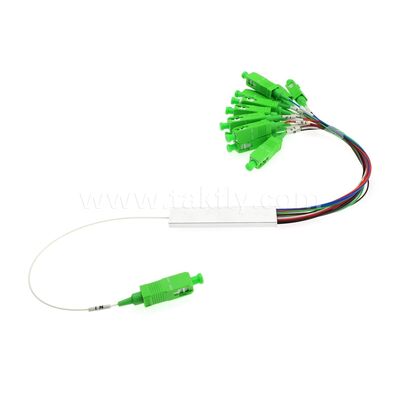

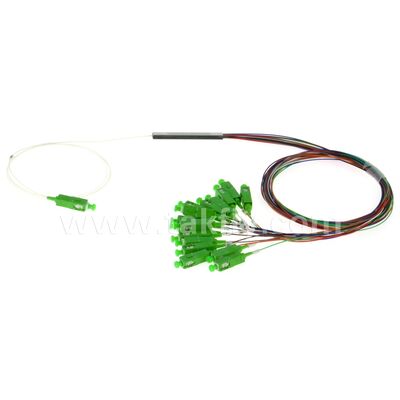

Fiber Optic PLC Splitter 0.9mm colored outlets Mini Steel Tube SC APC/UPC for Data Center Telecom FTTX
Datos del producto:
| Lugar de origen: | Porcelana |
| Nombre de la marca: | OEM |
| Certificación: | ISO, CE RoHS |
| Número de modelo: | DF-PLC-1xN-TUBO DE ACERO-Color |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 |
|---|---|
| Precio: | USD3-35/pc |
| Detalles de empaquetado: | Embalaje blister + cartón |
| Tiempo de entrega: | 5-8 días laborables |
| Condiciones de pago: | T/T, Unión Occidental |
| Capacidad de la fuente: | 50000 unidades por mes |
|
Información detallada |
|||
| Personalización: | Sí | ||
|---|---|---|---|
| Resaltar: | Fiber Optic PLC Splitter SC APC,Mini Steel Tube PLC Splitter,FTTX Data Center Fiber Splitter |
||
Descripción de producto
PLC optical splitter is a kind of power splitter based on the integrated quartz baseplate. Single mode PLC 1×N and 2×N splitter divide uniformly optical signals from one or two inputs to multiple outputs, and splitter can be operated in reverse direction to combine multiple signals into one fiber or two fibers.
Available with high quality ferrule, professional polishing technology, precise matching for optical endface to achieve more stable transmission and efficient connection.
TAKFLY's PLC optical splitter Mini steel tube has excellent performance parameters. The PLC optical splitter is insensitive to wavelength and has full-band signal transmission from 1260 to 1650 nm.
TAKFLY can provide a full range of PLC optical splitters and can be customized to meet specific requirements.
PLC optical splitter has the advantages of insensitivity to wavelength, high stability and uniform splitting. It is one of the most important passive devices in optical networks. Widely used in MAN (metropolitan area network), LAN (local area network), FTTX, etc.
| Item | Parameter |
|---|---|
| Type (1×N) | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
| Max. Insertion Loss (dB) | 3.9 | 7.2 | 10.3 | 13.5 | 16.8 | 20.3 |
| Max. Uniformity (dB) | 0.8 | 0.8 | 0.8 | 1.0 | 1.5 | 2.0 |
| Min. Return Loss (dB) | 55 |
| Max. PDL (dB) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Type (2×N) | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
| Max. Insertion Loss (dB) | 4.2 | 7.5 | 10.6 | 13.9 | 17.2 | 20.8 |
| Max. Uniformity (dB) | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 |
| Min. Return Loss (dB) | 55 |
| Max. PDL (dB) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Fiber Type | ITU-T G657A1, G657A2 and G652D |
| Operating Wavelength (nm) | 1260~1650 |
| Max. Temperature Stability (dB) | 0.5 (Typical 0.3) |
| Operating Temperature (℃) | -40~+85 |
| Storage Temperature (℃) | -40~+85 |
