MPO/MTP Patchcord Fanout Uniboot LC Multimode OM3 Breakout Fiber Optic Cable for Data Center Cabling AI Telecom
Datos del producto:
| Lugar de origen: | Porcelana |
| Nombre de la marca: | OEM |
| Certificación: | ISO, CE RoHS |
| Número de modelo: | MPO/MTP-MM-OM3-Uni LC |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 |
|---|---|
| Precio: | USD12-20/pc |
| Detalles de empaquetado: | Bolsa autosellante de PE + cartón |
| Tiempo de entrega: | 5-8 días laborables |
| Condiciones de pago: | T/T, Unión Occidental |
| Capacidad de la fuente: | 50000 unidades por mes |
|
Información detallada |
|||
| Material: | LSZH, OFNP | tipo de fibra: | milímetros |
|---|---|---|---|
| Color: | Agua | Personalizable: | Sí |
| Resaltar: | MPO MTP patchcord uniboot LC,OM3 breakout fiber optic cable,data center cabling fiber optic |
||
Descripción de producto

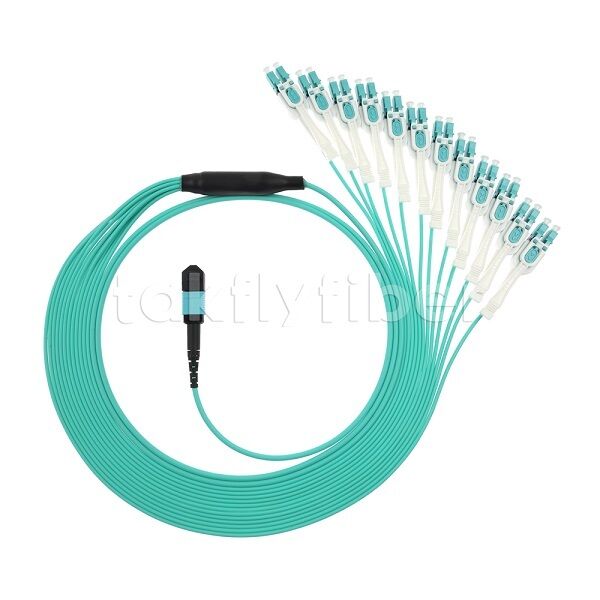

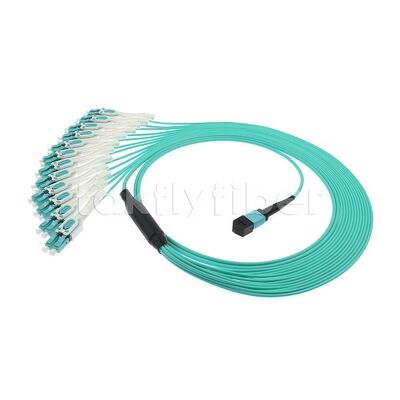

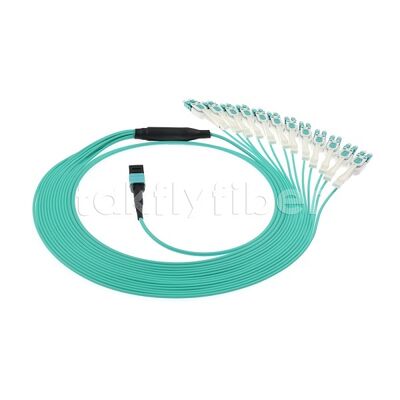

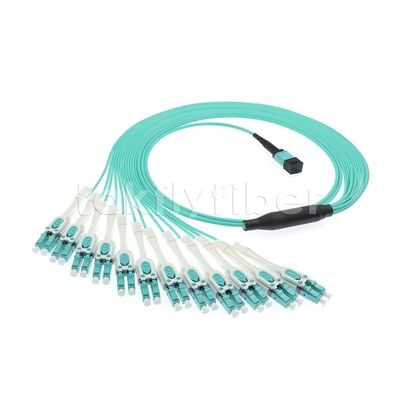

MPO/MTP Patchcord Fanout Uniboot LC Multimode OM3 Breakout Fiber Optic Cable
MPO/MTP breakout patch cords are designed for data center cabling and AI telecom applications, providing efficient optical connectivity in high-density environments.
Product Overview
MPO/MTP breakout patch cords consist of four main components: main cable, breakout cable, branching device, and connector. The multi-core main cable simplifies cabling management and prevents tangling, making it ideal for high-density optical cabling environments.
Key Features
- Changeable polarity with simple operation
- LC uniboot connector design saves 50% cabling space
- Compact and space-saving for high-density environments
- Tool-free outer housing opening
- High-quality ferrule with professional polishing technology
- Precise optical endface matching for stable transmission
- 100% tested for quality assurance
- Multiple types available with customization options
Applications
TAKFLY MPO/MTP breakout patch cords feature stable transmission and high reliability, making them ideal for optical network scenarios including data centers and various optical cabling applications.
Available Types
TAKFLY provides a full range of MPO/MTP-LC breakout patch cords with customizable transmission mode, cable type, and connector type options.
Technical Specifications
| Performance | Type | Multimode | Singlemode |
|---|---|---|---|
| Insertion Loss (IL) | MPO | Single Max: 0.35dB (L) Single Max: 0.60dB (G) |
Single Max: 0.35dB (L) Single Max: 0.75dB (G) |
| LC | Max: 0.10dB (L) Max: 0.15dB (G) |
Max: 0.30dB | |
| Return Loss (RL) | MPO | >20dB | >60dB (8 degree Angle Polish) |
| LC | >30dB | >50dB(UPC), >60dB(APC) | |
| Mechanical | MPO | <0.2dB, 200 times insertion | |
| LC | <0.2dB, 500 times insertion | ||
| Environmental | Working Temp | -20°C to +60°C | |
