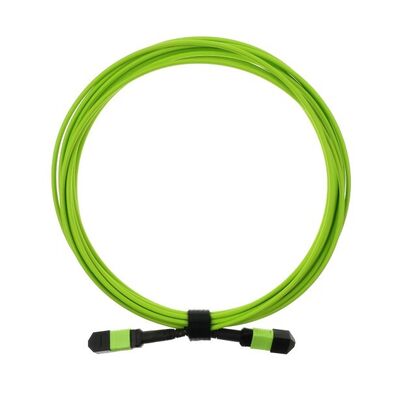

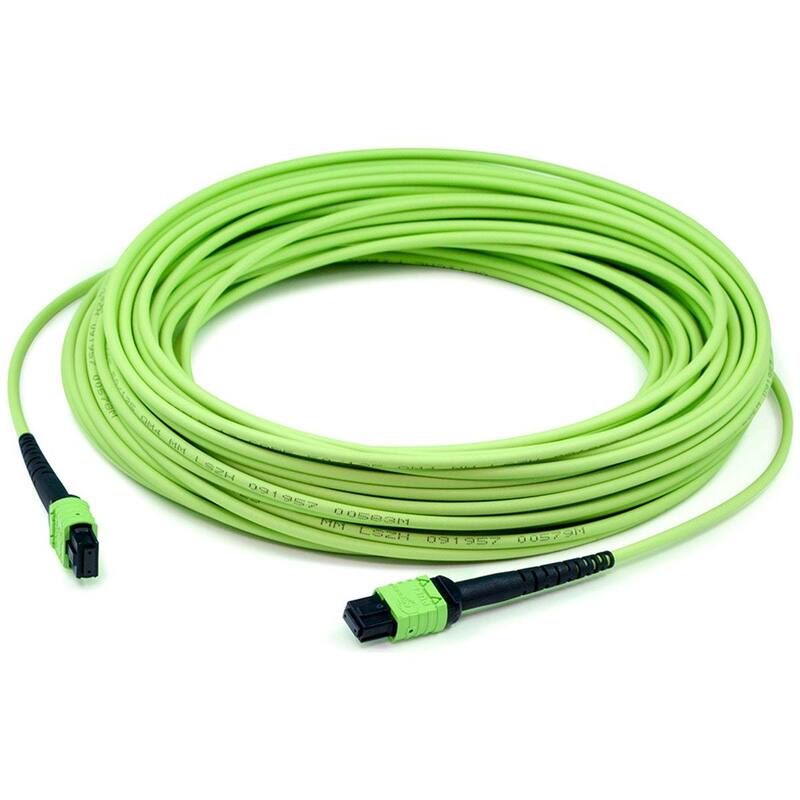

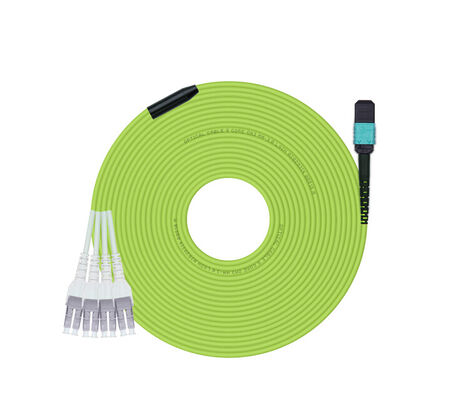

MPO MTP Patchcord Multimode OM5 Trunk Cable 12F Fiber Optic for Data Center AI Telecom Cabling
Datos del producto:
| Lugar de origen: | Porcelana |
| Nombre de la marca: | OEM |
| Certificación: | ISO, CE RoHS |
| Número de modelo: | DF-MPO-MM-OM5-12 |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 |
|---|---|
| Precio: | USD9-18/pc |
| Detalles de empaquetado: | Bolsa autosellante de PE + cartón |
| Tiempo de entrega: | 5-8 días laborables |
| Condiciones de pago: | T/T, Paypal |
| Capacidad de la fuente: | 50000 unidades por mes |
|
Información detallada |
|||
| tipo de fibra: | Multimodo | Color de la funda exterior: | Verde lima |
|---|---|---|---|
| Diámetro exterior: | 3,0 mm | Personalización: | Sí |
| Resaltar: | MPO MTP OM5 fiber optic cable,multimode trunk cable for data center,12F fiber optic patchcord telecom |
||
Descripción de producto
MPO/MTP fiber optic patch cords feature connectors at both ends of fiber optic cables, enabling active connections between optical network equipment and devices. These patch cords provide simple, convenient, and fast operation, making them essential passive components for optical network infrastructure.
TAKFLY offers a comprehensive range of MPO/MTP patch cords with customizable transmission modes, cable types, and connector configurations to meet specific application requirements.
Manufactured with high-quality ferrules and professional polishing technology, these patch cords ensure precise optical endface matching for stable transmission performance and efficient connectivity.
All TAKFLY MPO/MTP patch cords undergo comprehensive 100% testing to ensure compliance with industry standards and meet customer performance requirements.
TAKFLY provides a complete selection of MPO/MTP patch cords with customizable options to suit diverse application needs and specifications.
| Parameter | Standard SM | Low Loss (Elite) SM | Standard MM | Low Loss (Elite) MM |
|---|---|---|---|---|
| Insertion Loss (Typical) | 0.35dB | 0.20dB | 0.35dB | 0.20dB |
| Insertion Loss (Maximum) | 0.75dB | 0.35dB | 0.60dB | 0.35dB |
| Return Loss | ≥50 for PC | ≥60 for APC (8° Angle Polish) | ≥20 for PC | -- |
| Male/Female | Male: with Pins; Female: without Pins | |||
| Tensile Strength | ≤0.3 (Max 66N) | |||
| Vibration | ≤0.3 (10~55Hz) | |||
| Thermal Cycle | ≤0.3 (-40~75℃, 21 Cycles) | |||
TAKFLY MPO/MTP patch cords deliver stable transmission and high reliability, making them ideal optical cabling solutions for high-density environments. These patch cords are widely used in various optical network scenarios including:
- Data Centers
- AI Infrastructure
- Telecommunications Cabling
- Other Optical Networking Applications
