1U -19 inch MPO/MTP High-Density rack-mount fiber patch panel for Data Center Application
Datos del producto:
| Lugar de origen: | Shénzhen, China |
| Nombre de la marca: | Takfly/OEM |
| Certificación: | CE, ROHS, REACH, ISO9001, ISO14001 |
| Número de modelo: | TK-HRF-1096E |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 piezas |
|---|---|
| Precio: | Can be negotiated |
| Detalles de empaquetado: | Bolsas de PP + caja de cartón/caja de plástico + caja de cartón |
| Tiempo de entrega: | 3-7 días laborables |
| Condiciones de pago: | Western Union, MoneyGram, carta de crédito, T/T |
| Capacidad de la fuente: | 3000 unidades / semana |
|
Información detallada |
|||
| Nombre del producto: | Panel de conexión MPO MTP | Conector: | LC |
|---|---|---|---|
| Diámetro del cable: | 0,9/0,6 mm | Tipo de fibra: | En el caso de los productos |
| Solicitud: | Centro de datos | Pérdida de inserción: | ≤0,2 dB |
| recuento de fibras: | 12 | Pérdida de devolución: | ≥20dB |
| Resaltar: | 1U rack-mount MPO patch panel,19-inch MTP fiber panel for data center,High-density MPO/MTP patch panel with warranty |
||
Descripción de producto

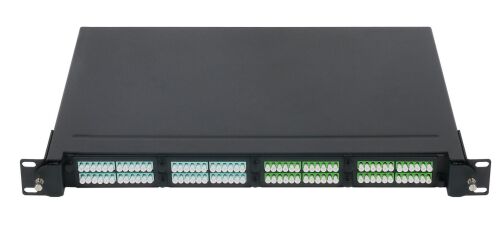

1U 19-Inch MPO/MTP High-Density Rack-Mount Fiber Patch Panel
Designed for large data center applications, this 1U rack-mount fiber patch panel supports 96-288 cores and is ideal for MDF applications, IDF wiring areas, optical fiber backbone connections, and high-density integrated fiber environments.
Key Features
- Constructed from high-quality aluminum alloy with electrostatic coating for durability
- Compatible with 19-inch racks and cabinets for centralized cassette module management
- Flexible configuration options: 96 fibers for LC interface or equipped with LC, SC, MPO/MTP adapter panels
- Supports both Male and Female MPO/MTP connectors with precise PIN and adapter connections
- Modular plug-in locking structure with clear line sequence identification for easy testing and maintenance
- Compact, lightweight design with impact-resistant, flame-retardant, and corrosion-resistant properties
Technical Specifications
Applications
- Fiber optic communication dense wiring systems between buildings
- Optical link interconnection in LAN cabling for active equipment
- Telecommunication base stations
- Data center rooms in industrial and commercial buildings
- CATV systems
- LAN and WAN networks
- FTTX deployments
Frequently Asked Questions
What is Takfly/OEM MPO/MTP?
Takfly/OEM MPO/MTP is a high-performance connector used in fiber optic cabling systems, manufactured in Shenzhen, China.
What are the benefits of Takfly/OEM MPO/MTP?
Takfly/OEM MPO/MTP offers superior performance, increased density, and significant cost savings.
What types of applications can Takfly/OEM MPO/MTP be used for?
Takfly/OEM MPO/MTP is suitable for data centers, telecommunications, and other high-density cabling systems.
What is the warranty for Takfly/OEM MPO/MTP?
Takfly/OEM MPO/MTP comes with a comprehensive one-year warranty.
