Customized MPO/MTP-MPO/MTP Patch Cord Low Insertion Loss 3.0mm Male Female
Datos del producto:
| Lugar de origen: | Shenzhen, China |
| Nombre de la marca: | Takfly/OEM |
| Certificación: | CE, ISO, RoHS, CPR, FCC |
| Número de modelo: | MPO/MTP |
| Documento: | MPO Catalogue -2024-5-2.pdf |
Pago y Envío Términos:
| Cantidad de orden mínima: | 10 pcs |
|---|---|
| Precio: | Can be negotiated |
| Detalles de empaquetado: | Caja del cartón de los PP bag+ |
| Tiempo de entrega: | 3-15 días hábiles |
| Condiciones de pago: | T/T, Western Union, Moneygram, PayPal |
| Capacidad de la fuente: | 50000 piezas por mes |
|
Información detallada |
|||
| Tipo de conector: | MPO/MTP | Conteo de fibra: | 8/12/24 |
|---|---|---|---|
| Polaridad: | A/B/C/ESPECIAL (Personalizado) | Tipo de modo: | SM(G652、G655、G657);MM(OM1-OM5) |
| Color de cable: | Regular / personalizado | Pérdida de retorno: | UPC SM: 40DB APC SM ： 60 dB PC MM ： 25 dB |
| Longitud de onda de prueba (nm): | SM:1310/1550 MM:850/1300 | Temperatura de funcionamiento: | -20 ℃ ~ 70 ℃ |
| Temperatura de almacenamiento: | -40 ℃ ~ 80 ℃ | Material de vaina exterior: | PVC, LZH |
| Longitud: | Personalizado | ||
| Resaltar: | Customized MPO/MTP Patch Cord,Low Insertion Loss MPO/MTP Patch Cord,Wide Temperature Range MPO/MTP Patch Cord |
||
Descripción de producto

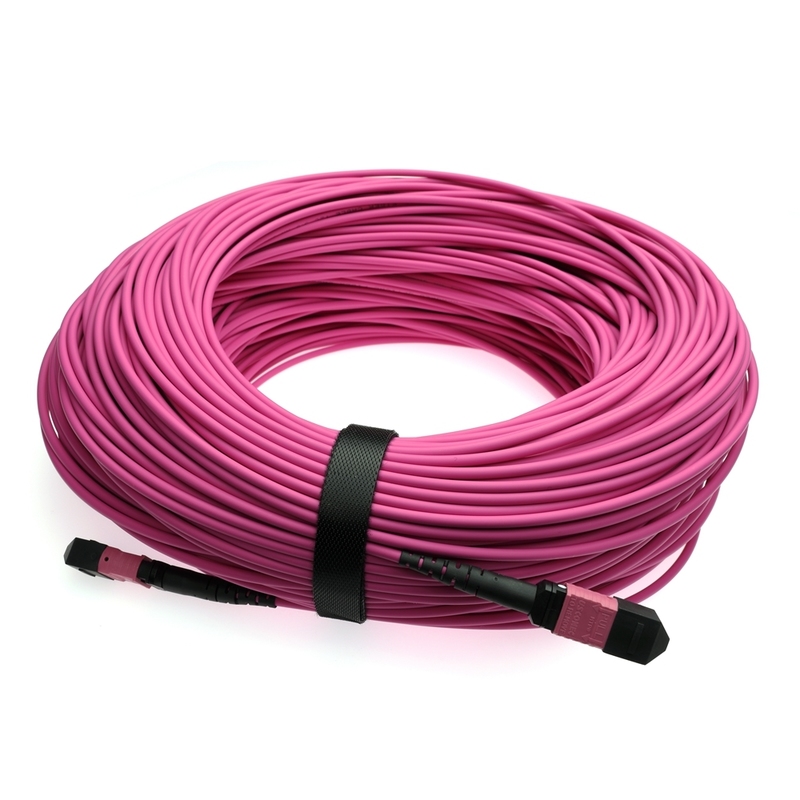

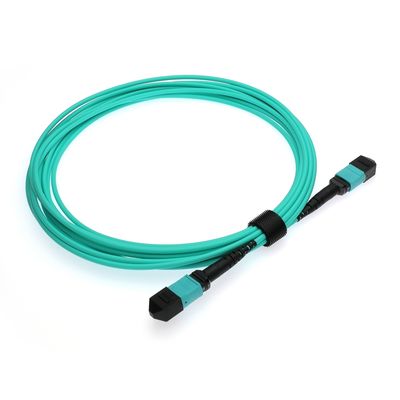

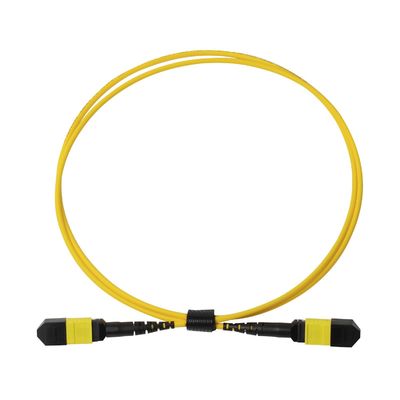

Customized MPO/MTP-MPO/MTP Patch Cord Low Insertion Loss 3.0mm Male Female
Applications
- Asynchronous Transmission Mode (ATM)
- Gigabit Ethernet
- Active Devices/Transceiver Interface
- CATV, Video and Multimedia
- Premise Installations
- Telecommunication Networks
- Parallel optical interconnect between PC Cards and patch panels
- Interconnection for O/E modules
- Industrial & Military
- Optical Switch interframe connections
Features
- Precision molded MT ferrule
- High precision guide pins for exact alignment
- Compact design, up to 4,8,12,24 fibers
- IEC 61754-7 Compliant
- EIA/TIA-604-5 Compliant
Specifications
Polarity
Selection Guide
- Connector type: MPO / MTP
- Mode type: single mode (UPC and APC) / multi mode (PC)
- Cable diameter: 0.9 / 2.0 / 3.0 mm (could customize other diameters)
- Coating material: PVC / LSZH
- Fiber count: simplex / duplex / 8 cores /12 cores / 24cores /48 cores / 96 cores
- Cable type: G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
- Patch cord length: according to your requirement
- MPO/MTP connector type: specify brand and method (A type / B type /C type), male or female
Why Choose TAKFLY?
Core Advantages
- Founded in 2000, Located in Shenzhen (south of China neighbor Hongkong)
- FTTH, DATA Center Solution, One-stop fiber optic components supply
- ISO 9001/14001/RoHS/CE/FCC certified quality
- Factory-direct pricing & strict quality control
- Customized production & on-time delivery
- 25 years' expertise + 30 engineers' R&D support
- Accept trial/small orders
- Main customers: Vodafone, Orange, Telefornica, Movistar, Ericsson, etc.
- Worldwide exhibitions: OFC, CommunicAsia, ECOC, Netcom, Cable Tech, Network X, SVIAZ ICT, AFRICACOM, CAIRO ICT, etc.
Premium Services
- 3-7 days for samples; 2-3 weeks for bulk (urgent orders supported)
- 100% pre-shipment testing
- Prompt response & full after-sales support
Q&A
Q: Are you a manufacturer?
A: Yes, we are a manufacturer, FTTH solution and data center total solution provider in Shenzhen, China, established in 2000.
Q: What's your MOQ?
A: MOQ could be 1 pcs, but more quantity, the price will be more competitive.
Q: Can you quote FOB price?
A: Yes. We can delivery by air, DHL, TNT, UPC, FEDEX, etc. For large quantity we will deliver them by sea. We can quote price with freight and lead time for you, after you let us know detailed requirements with quantity. We have competitive shipping forwarders. For more solutions, you can feel free to contact us.
Q: How is your quality?
A: Our production is according to IEC, Europe standard. CE, ISO, RoHS, CPR, and ANATEL certified. All the products are 100% test before delivery.
Q: What's your lead time?
A: It depends on the quantity and products. For fiber optic patch cord, the lead time can be 2-3 working days within 5000 pcs. We keep the regular products in stock. Also, we can deal with urgent orders.
Q: What's your warranty?
A: Depends on different product, we have 1 year warranty for patch cord since delivery, but only responsible for non-artificial damage. For artificial damage, we can repair it for you for free, freight will be paid by your side.
Q: What's your packing?
A: International export standard package. If you need to print your logo on the packing, please let us know before we quote.
Q: Can you offer OEM/ODM?
A: Yes, we can. All products accept OEM/ODM. We can sign the Confidentiality Agreement.
Q: Can I have a sample?
A: It depends on which products, free sample provide under 10 usd. Freight will be paid by yourside before delivery.
Q: How can I order?
A: 1. Send mail or inquiries with product name, specification, and quantity to us. Provide your receive address if you need FOB, CIF, CFR price.
2. We will offer our quotation with lead time.
3. After the quotation confirmed, we will send PI with our bank account.
4. Production will be arranged after the payment received.
5. Confirm the consignee with you before we deliver it.
6. The tracking number will be provided after the delivery.
2. We will offer our quotation with lead time.
3. After the quotation confirmed, we will send PI with our bank account.
4. Production will be arranged after the payment received.
5. Confirm the consignee with you before we deliver it.
6. The tracking number will be provided after the delivery.
Q: What your payment term?
A: T/T, Western Union, Paypal, MoneyGram at once. For big amounts, can be 50% deposit in advance, 50% balance paid before delivery.
