CPR 24C Fiber Optic Patch Cord Data Center MPO Fiber Cable

Datos del producto:

Lugar de origen: Shenzhen, China
Nombre de la marca: Neutral/OEM/Takfly
Certificación: CE/ROHS/REACH/CPR/ISO9001/ISO14001
Número de modelo: Cordón de remiendo de MPO

Pago y Envío Términos:

Cantidad de orden mínima: 1
Precio: Negotiable
Detalles de empaquetado: Bolso del PE
Tiempo de entrega: días 3-7working
Condiciones de pago: Western Union, L/C, T/T, Paypal
Capacidad de la fuente: 100Pcs/day
Mejor precio Contacto

Información detallada

Corazones: 24 corazones Tipo de la fibra: SM y milímetro
Longitud: el 1m, 3M, los 5m y modificado para requisitos particulares. diámetro del cable: 3,0 mm, 4,5 mm
Tipo del conector: MPO Chaqueta del cable: lszh
Color del cable: Amarillo, aguamarina, violeta, verde lima Uso: Data Center
Nombre de producto: Cordón de remiendo de la fibra óptica MPO La otra manera del Fanout: MTP, LC disponible

Descripción de producto

Fiber Optic MPO 24 Cores Patch Cord Data Center MPO-MPO Fiber Cable


Fiber Optic MPO Patch Cord Name:



Fiber Optic 24 Cores MPO-MPO Patch Cord



Fiber Optic MPO Patch Cord Description:

This MPO-MPO Patch Cord is for the 24 Cores, and can do it for SM and MM according to the requirements. Other cores like 8 cores, 12 cores also available.



This type cable diameter is commonly for 3.0mm, and 4.5mm diameter is also available. The MPO patch cord is with very high density, which is widely used in the Data Center with high performance.


Fiber Optic MPO Patch Cord Features:



Precision molded MT ferrule
High precision guide pins for exact alignment
Compact design, up to 4,8,12,24 fibers
IEC 61754-7 Compliant
Cable diameter 3.0mm, and 4.5mm available





Fiber Optic MPO Patch Cord Applications:

  • Telecommunication Networks
  • Active Deviced/Transceiver Interface
  • Gigabit Ethernet
  • CATV, Video and Multimedia
  • Premise Installations
  • Optical Switch interframe connections
  • Data Center

Fiber Optic MPO Patch Cord Specifications:



Item LC,SC,ST,FC.......                                  MPO/MTP
End face type PC,UPC and APC PC and APC
Fiber type SM(G652,G655,G657);MM(OM1-OM5)
Core number 12, 24
Cable Diameter 0.9,2.0,3.0 Mini Round cable:Max4.5mm; Ribbon cable:Max3.0*5.0mm
Insertion loss(dB)  ≤ 0.3 Standard:≤0.35/0.7(Typical/Max) Low Loss:≤0.2/0.35(Typical/Max)
Return loss(Min)

UPC SM:40dB

APC SM:60 dB

PC MM:25 dB

SM: APC:60dB MM: PC:20dB
Test Wavelength (nm) SM:1310/1550 MM:850/1300
Repeatability ≤ 0.1dB
Durability ≤ 0.2dB
Interchangeability ≤ 0.2dB

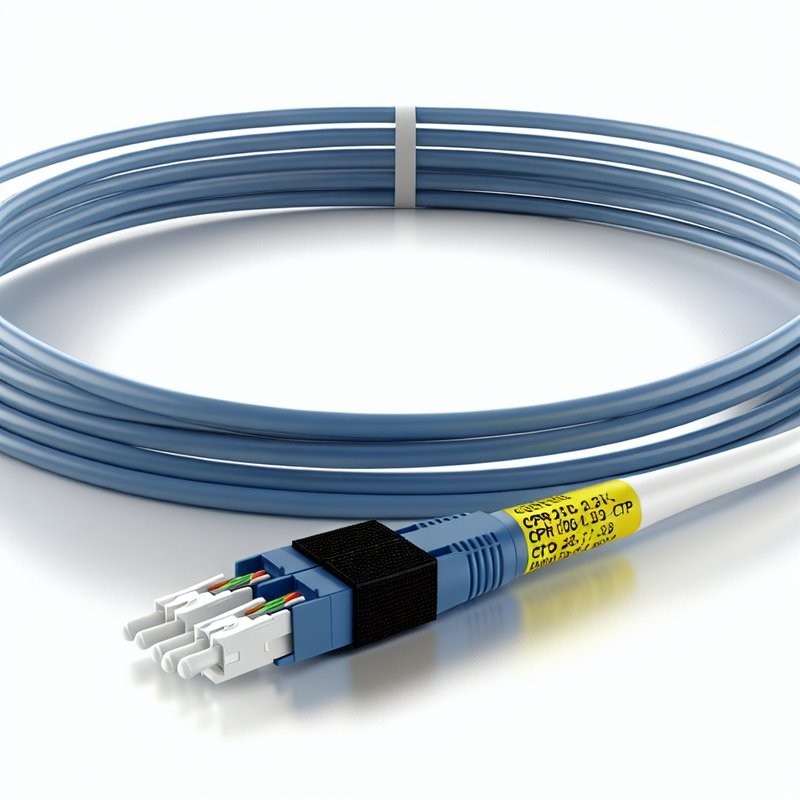

CPR 24C Fiber Optic Patch Cord Data Center MPO Fiber Cable 0

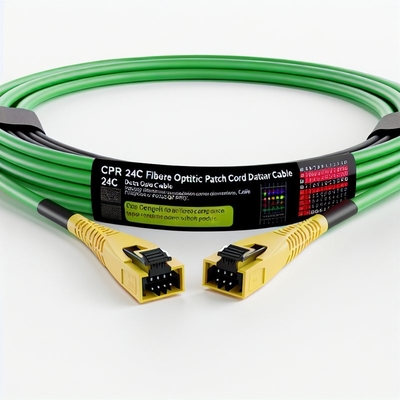

CPR 24C Fiber Optic Patch Cord Data Center MPO Fiber Cable 1


Why choose TAKFLY--Advantages as follows:
Professional manufacturer:

  • With more than 21 years manufacturing experience in Fiber optic products;
  • More than 450 assembly workers with 3 years experienced;
  • More than 10 R&D Engineers;
  • 16 Sets Germany imported Injection Machine and 16 Production Lines;
  • More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, ect.
  • OEM Brand is acceptable.
  • Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia ,Global Soure Electronic Exhibition,etc.

Quality Control:

  • Spot check the raw material incoming inspection before production;
  • Fully check after every individual process finished;
  • Fully check production half done;
  • Fully check the finished products before packing;
  • Spot check before shipping;

Delivery:

  • Samples: 1-3 working days.
  • Mass Production Order: 3-7 working days.
  • Packaging: Plastic Bag, Carton and Pallet are available according to your request.

Price: If your QTY is big, the price could be negotiated.
