FTTX Multifunction Optical Fiber Identifier (OFI) For Maintenance & Installation & Troubleshooting
Datos del producto:
| Lugar de origen: | China, Shenzhen |
| Nombre de la marca: | DF/OEM/Nuetral |
| Certificación: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Número de modelo: | Identificador de fibra óptica multifunción (OFI) FTTX para mantenimiento, instalación y resolución d |
Pago y Envío Términos:
| Cantidad de orden mínima: | Negociable |
|---|---|
| Precio: | negotiable denpend on QTY |
| Detalles de empaquetado: | Caja de ampolla + cartón |
| Tiempo de entrega: | Entre 5 y 9 días laborables dependiendo del QTY |
| Condiciones de pago: | En el caso de las empresas de servicios financieros, el importe de las cuotas es igual al importe de |
| Capacidad de la fuente: | 1000 unidades/día |
|
Información detallada |
|||
| Nombre del producto: | Identificador de fibra óptica multifunción (OFI) FTTX para mantenimiento, instalación y resolución d | Rango de longitud de onda identificado: | 800-1700 nanómetro |
|---|---|---|---|
| Tipo de señal identificada: | CW, 270 Hz±5%, 1 kHz±5%, 2 kHz±5% | Tipo de detector: | Ø1mm InGaAs 2 piezas |
| Dirección de la señal: | LED izquierdo y derecho | Peso (g): | 200 |
| Dimensión: | 196X30.5X27 | Temperatura de funcionamiento: | -10°C～+60°C |
| Marca de fibra: | Corning, YOFC, OFS, Draka | ||
| Resaltar: | FTTX optical fiber identifier,multifunction fiber optic tool,OFI for fiber troubleshooting |
||
Descripción de producto
FTTX Multifunction Optical Fiber Identifier (OFI)
Essential tool for fiber optic maintenance, installation, and troubleshooting. Allows technicians to identify live fibers, determine signal direction, and measure relative optical power without interrupting network service.
Product Overview
Quickly identifies transmission direction and displays relative core power without interrupting current service. Recognizes modulation tones including 270Hz, 1kHz, and 2kHz with continuous audible tone.

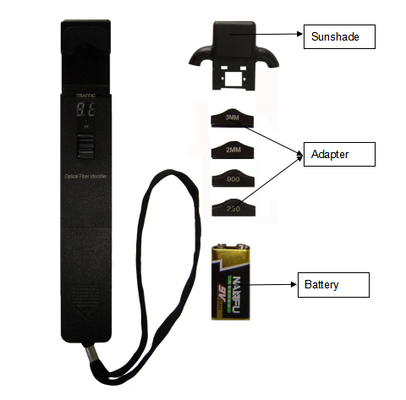

Four adapter heads available: Ø0.25, Ø0.9, Ø2.0 and Ø3.0. Powered by 9V alkaline battery.
Key Features
- Portable, compact size and easy-to-use design
- Efficiently identifies traffic direction and frequency tone (270Hz, 1KHz, 2KHz) without fiber damage
- Core power display for tested fibers
- Low bending loss and high efficient output
- Easy to replace adaptors (Ø0.25, Ø0.9, Ø2.0, Ø3.0)
Function Description
(1) Clamp
Clamp and hold the fiber in suitable location.
(2) Clamp Pushing Button
Push button up and press downward to fix adapter head. Press button again to loosen adapter head.

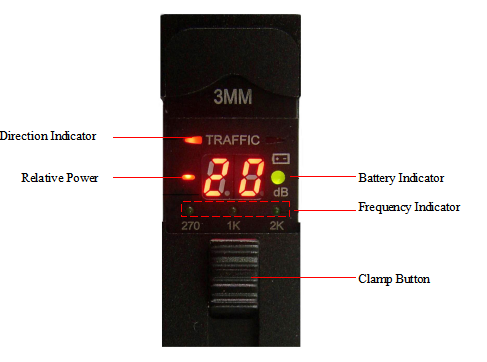

(3) LED Indicator
LED indicator shows signal direction, modulation, and battery level.
Technical Specifications
| Type | Optical Fiber Identifier |
|---|---|
| Identified Wavelength Range | 800-1700 nm |
| Identified Signal Type | CW, 270Hz±5%, 1kHz±5%, 2kHz±5% |
| Detector Type | Ø1mm InGaAs 2pcs |
| Adapter Type | Ø0.25 (Bare Fiber), Ø0.9 (Ø0.9 Cable), Ø2.0 (Ø2.0 Cable), Ø3.0 (Ø3.0 Cable) |
| Signal Direction | Left & Right LED |
| Single Direction Test Range (dBm, CW/0.9mm bare fiber) | -46~10(1310nm), -50~10(1550nm) |
| Signal Power Test Range (dBm, CW/0.9mm bare fiber) | -50~+10 |
| Signal Frequency Display (Hz) | 270, 1k, 2k |
| Frequency Test Range (dBm, Average Value) | Ø0.9, Ø2.0, Ø3.0: -30~0 (270Hz,1KHz), -25~0 (2KHz) Ø0.25: -25~0 (1KHz,2KHz), -20~0 (2KHz) |
| Insertion Loss(dB, Typical Value) | 0.8 (1310nm), 2.5 (1550nm) |
| Alkaline Battery(V) | 9 |
| Operating Temperature(℃) | -10－+60 |
| Storage Temperature(℃) | -25－+70 |
| Dimension (mm) | 196X30.5X27 |
| Weight (g) | 200 |
Optical Fiber Identification Process
- Insert fiber into adapter head, push button up to lock clamp and cover sunshade
- When optical signal passes through fiber, LED illuminator indicates traffic direction with intermittent audible tone and displays relative core power digitally
- If no optical signal passes through fiber, LED remains off and "LO" displays in core power position
- Detects presence of 2KHz, 1KHz and 270Hz modulated tones with continuous audible tone
Maintenance Guidelines
- Place fiber in groove according to specific type
- Regularly clean detector surface with cotton swabs to prevent dust accumulation
- Remove battery when not in use for extended periods
Product Image
