FTKS-1806-02U FTTH Desk Box For Network Telecommunication & LAN/WAN From China
Datos del producto:
| Lugar de origen: | China, Shenzhen |
| Nombre de la marca: | DF/OEM/Nuetral |
| Certificación: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Número de modelo: | TKS-1806-02U |
Pago y Envío Términos:
| Cantidad de orden mínima: | Negociable |
|---|---|
| Precio: | negotiable denpend on QTY |
| Detalles de empaquetado: | Caja de ampolla + cartón |
| Tiempo de entrega: | Entre 5 y 9 días laborables dependiendo del QTY |
| Condiciones de pago: | En el caso de las empresas de servicios financieros, el importe de las cuotas es igual al importe de |
| Capacidad de la fuente: | 1000 unidades/día |
|
Información detallada |
|||
| Nombre del producto: | Caja de distribución de fibra óptica TKS-1806-02K para la construcción de redes de comunicación FTTx | Dimensión exterior (mm)): | 89,3*89,3*11 |
|---|---|---|---|
| Adaptador: | 2SC o 2 LC dúplex | Material: | ABS |
| Color: | Blanco | Almacenamiento de fibras: | G.657/G652 |
| Marca de fibra: | Corning, YOFC, OFS, Draka | ||
| Resaltar: | FTTH desk box for LAN/WAN,fiber optic termination box with warranty,telecommunication desk box for FTTH |
||
Descripción de producto

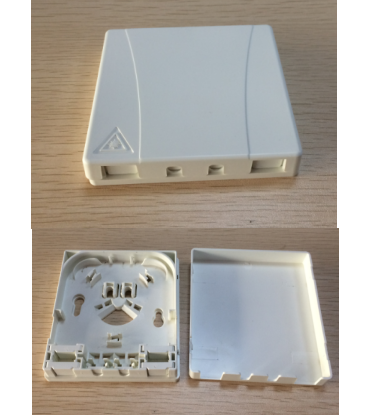

FTKS-1806-02U FTTH Desk Box
Professional fiber termination box designed for FTTx communication network systems, serving as a critical connection point between feeder cables and drop cables.
Product Overview
TKS-1806-02U is a desk mounted or wall mounted termination box for end user, indoor use, capable to handle fiber fusion, fiber cables and pigtails.
Applications
- Telecommunication subscriber loop systems
- Fiber to the Home (FTTH) installations
- LAN/WAN network infrastructure
Key Features
- Support termination, splicing and storage for fiber optic cable systems
- Compact structure and perfect fiber management
- Engineered fiber routing protect bend radius through the unit to ensure signal integrity
- Applicable for wall-mounted and top of table
Technical Specifications
| Parameter | Value | Remark |
|---|---|---|
| Model | TKS-1806-02U | |
| Outside Dimension (mm) | 89.3*89.3*11 | |
| Material | ABS | |
| Color | White | |
| Storage of fibers | G.657/G652 | |
| Splice capacity | 2f single fiber | |
| Splice Method | Fusion Splice | 40mm sleeve |
| Adapter | 2SC or 2 LC Duplex | Adapter type and count |
| Input cable (mm) | Max 5.0 | From side or bottom |
Included Components
| No. | Name | Qty. |
|---|---|---|
| 1 | Fiber splice protection sleeve | 2pcs |
| 2 | Expansion bolts for the outlet | 2set |
Why Choose TAKFLY?
Manufacturing Excellence
- 26+ years of specialized fiber optic manufacturing experience
- 450+ skilled assembly workers with 3+ years average experience
- 10+ dedicated R&D engineers for continuous product improvement
- 16 sets of German injection machines with 16 production lines
Quality Assurance & Testing
- 30+ advanced testing machines including OTDR, 3D, VFL, IL & RL test instruments
- Tension strength testers and crush resistance testers
- Power meter testers and comprehensive light checking equipment
Global Presence & Customization
- OEM branding services available
- Active participation in major international exhibitions: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control Process
- Raw material inspection before production begins
- Full inspection after each manufacturing process
- Comprehensive half-done production quality checks
- Complete finished product inspection before packaging
- Final spot check verification before shipping
Delivery Information
- Samples: 1-3 working days
- Mass production orders: 3-7 working days
- Packaging options: Plastic bag, carton, and pallet available according to customer requirements
Frequently Asked Questions
How can I get your catalogue and price list?
Please provide your email or contact information through our website to receive our comprehensive catalogue and current price list.
Can I negotiate the prices?
Yes, we offer competitive pricing and may consider discounts for multiple container loads of mixed goods.
How much will the shipping charges be?
Shipping charges depend on your shipment size and preferred shipping method. We provide detailed cost breakdowns upon request.
Can I visit your facility?
Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment for a facility tour.
What if there is a quality problem when we receive the goods?
If you encounter quality issues upon unpacking, please document with photos for our reference. Our QC department will investigate thoroughly and provide optimal solutions, implementing improvements for future production.
What are your packing terms?
Standard packaging includes blister boxes and cartons. We accommodate custom packaging requests to meet specific customer requirements.
What are your payment terms?
Standard terms: T/T 30% deposit, 70% balance before delivery. We provide product and packaging photos before final payment.
What are your delivery terms?
We support EXW, FOB, CFR, CIF, and DDU delivery terms to accommodate global shipping requirements.
What is your delivery time?
Standard delivery: 5-7 working days after receiving advance payment. Specific timing depends on product items and order quantity.
Can you produce according to samples?
Yes, we specialize in manufacturing products based on customer samples or technical drawings with precision and quality.
If you're interested in our fiber optic products or have any technical questions, our engineering team is available to assist you at any time!
