ADSS-100M All-Dielectric Self-Supporting Aerial Cable – 4 to 96 Fibers, 100m Span
Datos del producto:
| Lugar de origen: | Guangdong, Shenzhen |
| Nombre de la marca: | TAKFLY |
| Certificación: | CE,ROHS,REACH,ISO9001,ISO14001 |
| Número de modelo: | DX-T1771 blindado |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 fotos |
|---|---|
| Precio: | US$0.01 ~ US$1200/PC |
| Detalles de empaquetado: | Espo + caja + cartón |
| Tiempo de entrega: | 3-7 días laborables |
| Condiciones de pago: | LC, D/A, D/P, T/T, Western Union, MoneyGram |
|
Información detallada |
|||
| Radio de curvatura: | 20D/15D | Instalación: | Aéreo |
|---|---|---|---|
| Vaina: | LSZH | Connetcor: | SC/PC a SC/PC: el valor de las emisiones de CO2 |
| Diámetro: | 8.5 ~ 16 mm | Tipo de cable: | Monomodo |
| Temperatura de funcionamiento: | -40°C a +70°C | Se permitió resistencia a la tracción: | 100n <1000n |
| Longitud: | 2000 m por rollo o personalizado | Número de fibra: | 2 núcleos/4 núcleos |
| Paquete de transporte: | Tambor de madera | Embalaje: | durm de madera |
| Chaqueta: | CLORURO DE POLIVINILO | Método de instalación: | Interior/Exterior |
| Tipo de conector: | LC/UPC | recuento de fibras: | 12 |
| Material de la chaqueta exterior: | educación física | Centro: | 12, opcional |
| Tiempo de garantía: | 20 años | Resistencia al triturador: | Se aplicarán las siguientes medidas: |
| Estructura de cables: | Tipo de arco tampón estrecho | Código de producto: | GJYXCH-1B |
| Material de vaina exterior: | MDPE | Resistencia a la tracción: | ≥100N |
| Resistencia a la tracción máxima: | 1000n | Modelo: | Las demás partidas de la lista |
| Pérdida de inserción: | 0.2db | Diámetro exterior: | 4.5 mm o según lo solicite el cliente |
| material exterior: | Cables metálicos | Estándar: | El número de unidades |
| Miembro de la fuerza: | OEM | Número de la fibra: | 12 núcleos |
| Año de fabricación: | 2010 | Color de la funda exterior: | Negro, gris, blanco |
| Longitud de onda de prueba: | 1310nm ~ 1550nm | Modelo del cable: | GJPFJV |
| Vibración: | ≤0,2 dB | Paquete: | Ram de madera |
| Reforzamiento: | De hierro o de CFRP o de FRP | Funda exterior: | educación física |
| Núcleo de fibra: | 2 ~ 144 núcleos | Velocidad de datos: | 4*10G |
| Opciones de fibra: | G652D, G657A,Om1,Om2,Om3,Om4 | Peso nominal: | 83 |
| Longitud de onda de atajo del cable: | λcc≤1260um | Instale la manera: | Polvo/instalación enterrada directa |
| Tubo: | Diseño del tubo suelto | Material: | PE/LSZH |
| Puerto: | Ningbó | Color: | Amarillo o personalizado |
| Material de la chaqueta: | CLORURO DE POLIVINILO | Número de núcleo: | conforme a su petición |
| Envío: | TNT,DHL,UPS,FEDEX o EMS | Interior o exterior: | Interior |
| Tamaño del tambor: | 300x300x300 | Longitud de la fibra: | 1m o personalizado |
| Modo de fibra: | Se trata de un modelo único G652D | Palabras clave: | Cable de ADSS |
| Red: | 4g, 3G | OEM: | Bienvenido |
| Número de conductor: | ≥ 10 | ||
| Resaltar: | ADSS fiber optic cable 100m span,All-dielectric aerial cable 96 fibers,Self-supporting fiber optic cable 4 fibers |
||
Descripción de producto

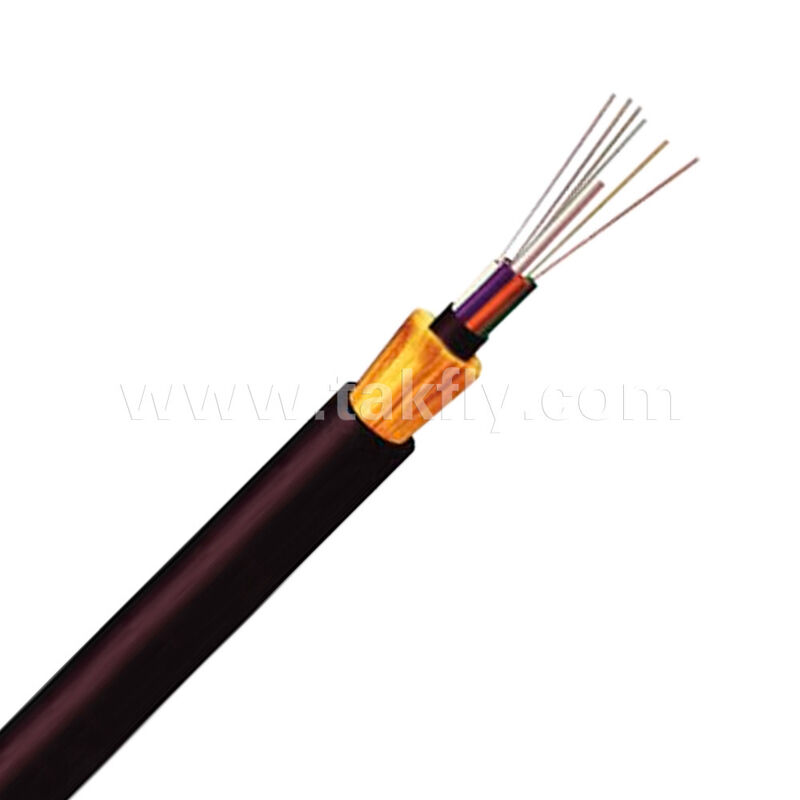

ADSS-100M All-Dielectric Self-Supporting Aerial Cable – 4 to 96 Fibers, 100m Span
This non-metallic, fully dielectric overhead cable is designed for a standard span of 100 meters. Available fiber counts: 4, 6, 12, 24, 48, 96 (G.652D single‑mode). The cable can be installed directly on poles or towers without a steel messenger. Suitable for power transmission lines (10kV-220kV) and telecommunication networks.
Fiber Optical & Geometrical Data (G.652D)
Attenuation, Dispersion & PMD Parameters
| Parameter | Unit | Before Cabling | After Cabling |
|---|---|---|---|
| Attenuation @1310 nm | dB/km | ≤0.34 | ≤0.38 |
| Attenuation @1550 nm | dB/km | ≤0.21 | ≤0.28 |
| Zero dispersion wavelength | nm | 1300-1324 | - |
| Zero dispersion slope | ps/(nm²*km) | ≤0.092 | - |
| Cable cut‑off wavelength λcc | nm | ≤1260 | - |
| Dispersion coefficient @1550 nm | ps/(nm*km) | ≤18 | - |
| Dispersion coefficient @1625 nm | ps/(nm*km) | ≤22 | - |
| PMD (max. individual fiber) | ps/√km | ≤0.1 | - |
| PMD (link design, M=20, Q=0.01%) | ps/√km | ≤0.06 | - |
| PMD (typical) | ps/√km | 0.04 | - |
| Group index (typ.) @1310 nm | - | 1.466 | - |
| Group index (typ.) @1550 nm | - | 1.467 | - |
| Macro‑bend loss (1 turn, 16mm radius) @1550 nm | dB | ≤0.05 | - |
| Macro‑bend loss (100 turns, 25mm radius) @1550 nm | dB | ≤0.05 | - |
| Macro‑bend loss (100 turns, 30mm radius) @1550 nm | dB | ≤0.05 | - |
Fiber Geometry Specifications
| Parameter | Unit | Value |
|---|---|---|
| Cladding diameter | µm | 125 ± 0.7 |
| Cladding non‑circularity | % | ≤1.0 |
| Coating diameter | µm | 235-250 |
| Coating/cladding concentricity error | µm | ≤12.0 |
| Coating non‑circularity | % | ≤6.0 |
| Core/cladding concentricity error | µm | ≤0.6 |
| Mode field diameter (MFD) @1310 nm | µm | 8.7-9.5 |
| Mode field diameter (MFD) @1550 nm | µm | 9.8-10.8 |

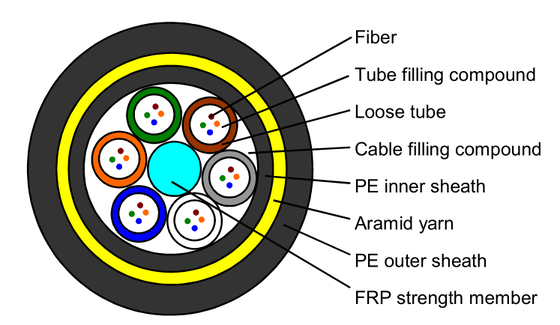

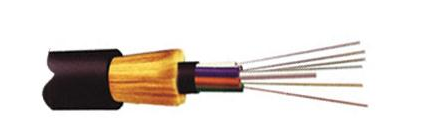

Cable Construction & Mechanical Specifications
The table below details loose tube stranded design for 24, 48 and 96 fibers. Configurations for 4, 6 and 12 fibers are available on request.
| Parameter | 24‑Fiber | 48‑Fiber | 96‑Fiber |
|---|---|---|---|
| Structure type | 1+6 | 1+6 | 1+8 |
| Central strength member (FRP) diameter | 2.0 mm | 2.0 mm | 2.0 / 3.7 mm |
| Loose tube material | PBT | PBT | PBT |
| Loose tube diameter | 2.0 mm | 2.0 mm | 2.0 mm |
| Number of loose tubes | 4 | 4 | 8 |
| Fibers per tube | 6 | 12 | 12 |
| Number of fillers | 2 | 0 | 0 |
| Water‑blocking | yarns + tape | yarns + tape | yarns + tape |
| Ripcords | 2 pieces | 2 pieces | 2 pieces |
| Peripheral strength member | Aramid yarns | Aramid yarns | Aramid yarns |
| Outer sheath material | MDPE (black) | MDPE (black) | MDPE (black) |
| Sheath nominal thickness | 1.7 mm | 1.7 mm | 1.7 mm |
| Cable diameter (±0.5 mm) | 9.5 mm | 10.0 mm | 11.8 mm |
| Cable weight (±10%, kg/km) | 70 kg/km | 75 kg/km | 110 kg/km |
| Maximum allowed tensile (MAT) | 2700 N | 2700 N | 2700 N |
| Span length | 100 m | 100 m | 100 m |
| Crush resistance - short term | 2200 N/100mm | 2200 N/100mm | 2200 N/100mm |
| Bending radius - operation | 15 × OD | 15 × OD | 15 × OD |
| Bending radius - installation | 25 × OD | 25 × OD | 25 × OD |
| Temperature - operation | -40℃ ~ +70℃ | -40℃ ~ +70℃ | -40℃ ~ +70℃ |
| Temperature - installation | -20℃ ~ +60℃ | -20℃ ~ +60℃ | -20℃ ~ +60℃ |
| Temperature - storage/shipping | -40℃ ~ +70℃ | -40℃ ~ +70℃ | -40℃ ~ +70℃ |
OD = Cable outer diameter
Packing, Drum & Cable Marking
| Item | Specification |
|---|---|
| Standard reel length | 2.0 - 4.0 km per wooden composite drum (export type) |
| Fumigation | Report and stamp provided upon request |
| Cable marking | Inkjet printed every meter: year, cable type, fiber count, length. Custom marking available. |
Applicable Standards
- DL/T 788‑2016 / YD/T 980‑2002
- IEC 60794‑4 / IEEE 1222
- Telcordia GR‑20
Ordering Options
| Model | Fiber Count | Span | Sheath Color |
|---|---|---|---|
| ADSS‑100M‑4X | 4 | 100 m | Black |
| ADSS‑100M‑6X | 6 | 100 m | Black |
| ADSS‑100M‑12X | 12 | 100 m | Black |
| ADSS‑100M‑24X | 24 | 100 m | Black |
| ADSS‑100M‑48X | 48 | 100 m | Black |
| ADSS‑100M‑96X | 96 | 100 m | Black |
For detailed construction drawings of 4/6/12‑fiber variants, please contact us.
