1 to 2 Port Gigabit Waterproof PoE Extender with 250m Extension and IEEE 802.3af/at Standard
Datos del producto:
| Nombre de la marca: | Takfly/DF |
| Certificación: | CE, ROHS, ISO14001, ISO9001, CPR,ANATEL,REACH |
| Número de modelo: | TK-MPO-PC |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 |
|---|---|
| Detalles de empaquetado: | embalaje internacional de la exportación |
| Tiempo de entrega: | 1-3 días laborables (depende de la cantidad) |
| Condiciones de pago: | TT 100% |
| Capacidad de la fuente: | 3000 piezas/día |
|
Información detallada |
|||
| material de la funda: | CLORURO DE POLIVINILO | Longitud de onda de operación: | 1310/1550 nm |
|---|---|---|---|
| Pérdida de inserción: | 0.3dB | Intercambiabilidad: | ≤0,2 dB |
| Polaridad: | Tipo A, B o C | Cantidad de fibra: | 24 |
| Modo: | En el caso de los productos | Material de la virola: | Cerámico |
Descripción de producto

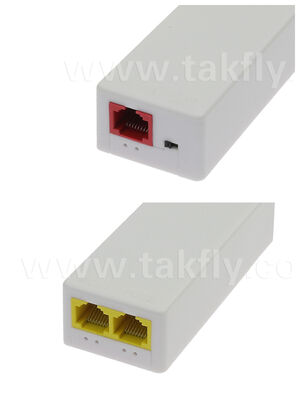

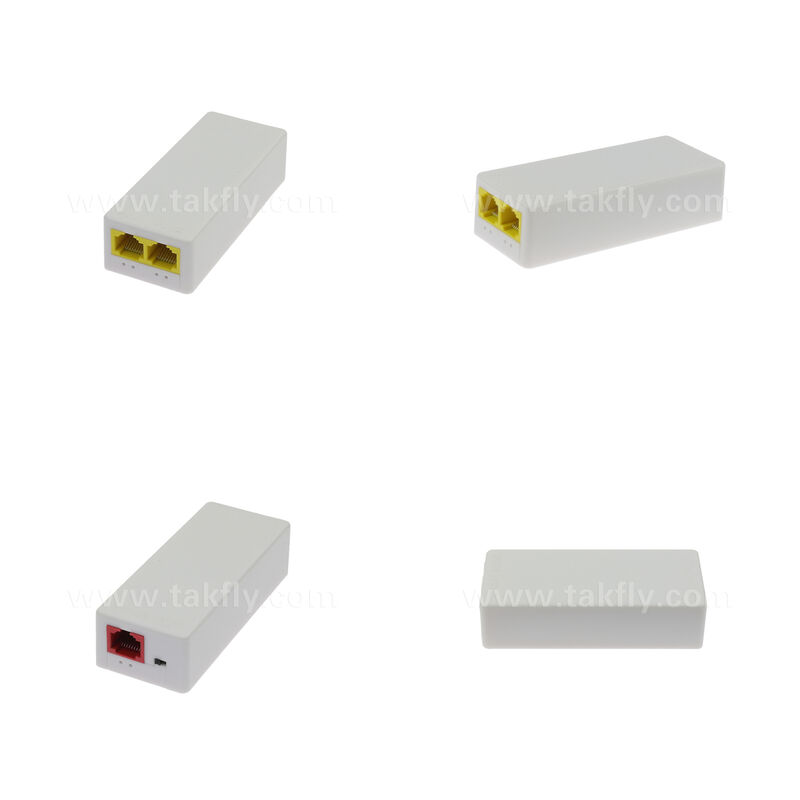

1 to 2 Port Gigabit Waterproof PoE Extender with 250m Extension
Product Introduction
The PoE extender splits the signal into two data channels, with each port supporting the IEEE 802.3af/at standard. The built-in switch supports extended transmission distances of up to 250 meters.
Designed to work with PSE power sourcing equipment, this PoE extender provides power to network devices such as wireless access points, routers, IP cameras, and IP phones in environments where power outlets are not readily available or are located far away.
In many surveillance applications, the ideal camera position may not have easy access to power. The PoE extender makes it easier to integrate terminal devices into a PoE network, allowing surveillance equipment to be installed at the optimal location without being limited by the placement of power outlets.
The housing is made of ABS engineering plastic, which offers high heat resistance and good thermal insulation.
Technical Features
- The device provides 1 Fast Ethernet RJ45 input port and 2 Fast Ethernet RJ45 output ports
- Supports PoE standard power supply with intelligent power detection; supports 1236/4576 power supply modes and 4-core/8-core network cables
- Compliant with IEEE 802.3af/at standards; compatible with PoE switches and IP cameras from brands such as HK, DH, TP, and others
- Extends transmission distance up to 250 meters at 10Mbps data rate; stable signal transmission with auto-negotiation for 10/100Mbps network environments
- Auto MDI/MDIX support for easy installation and system debugging
- Built with high-quality components and a robust design, ensuring reliable transmission across a wide range of applications
- Housing made of ABS engineering plastic, offering high temperature resistance and good thermal insulation
Technical Parameters
| Parameter | Specification |
|---|---|
| Product Type | PoE Extender |
| MTBF | 100,000 hours |
| Input Voltage | DC 44-57V |
| Output Voltage | DC 44-57V |
| Total Power Consumption | < 25W (full load) |
| Operating / Storage Temperature | -20℃ ~ +70℃ |
| Relative Humidity | 5% ~ 95% (non-condensing) |
| LED Indicator | Power LED |
| Switch | When enabled, extends transmission distance up to 250 meters at 10Mbps |
| Ingress Protection | IP30 |
| Model Number | GW-POE012 |
| Interfaces | 1 RJ45 input port + 2 RJ45 output ports |
| Weight | 55g / unit |
| Dimensions | 94 × 38 × 24 mm |
| Carton Quantity | 270 units / carton |
Frequently Asked Questions
Purchasing Process & Payment
Q: How do I place an order?
A: Our standard process is as follows:
- Please send us your inquiry including product name, specifications, quantity, and destination port (for FOB/CIF/CFR quotes)
- We will provide a formal quotation with lead time
- Upon confirmation, we will issue a Proforma Invoice (PI) with our bank details
- Production commences after receipt of payment
- We will confirm the consignee details with you before shipping
- A tracking number will be provided upon dispatch
Q: What are your payment terms?
A: We accept T/T, Western Union, PayPal, and MoneyGram. For large orders, we can arrange 50% deposit with the balance due before delivery.
Orders & Logistics
Q: What is your MOQ?
A: Our minimum order quantity starts from 1 piece. Please note that pricing becomes significantly more competitive with larger volumes.
Q: What are your lead times?
A: Lead times depend on the product and order quantity. For standard items like fiber optic patch cords (up to 5,000 pcs), production typically takes 2-3 business days. We maintain stock for regular products and can accommodate urgent requests.
Q: Can I request a sample?
A: Yes. Samples for products valued under $10 USD are complimentary; the customer is responsible for shipping costs, which must be settled prior to dispatch.
Q: Can you quote FOB prices?
A: Certainly. We provide FOB quotes and can ship via air (DHL, TNT, UPS, FedEx) or sea for bulk orders. Once we receive your detailed requirements and quantity, we will provide a comprehensive quotation with freight and lead time.
Products & Services
Q: Can you offer OEM/ODM services?
A: Yes, we accept OEM/ODM for all products and can sign a Confidentiality Agreement to protect your designs.
Q: How is your quality assured?
A: We adhere to IEC and European standards and hold certifications including CE, ISO, RoHS, CPR, and ANATEL. All products undergo 100% testing prior to delivery.
Q: What is your warranty policy?
A: Warranty terms vary by product. For example, our patch cords carry a standard 1-year warranty against non-artificial defects from the date of delivery. We also offer free repair for accidental damage; customers are responsible for associated shipping costs.
Q: What is your packaging?
A: We use standard export-grade packaging. Custom logo printing is available upon request; please inform us prior to quotation.
Company Overview
Q: Are you a manufacturer?
A: Yes, we are a manufacturer and total solutions provider for FTTH and data center applications, founded in 2000 and based in Shenzhen, China.
