Fiber Optic Attenuator Fixed Female-Female LC/SC/FC for FTTx Telecom Data Center
Datos del producto:
| Lugar de origen: | Porcelana |
| Nombre de la marca: | OEM |
| Certificación: | ISO, CE RoHS |
| Número de modelo: | DF-FFA |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 |
|---|---|
| Precio: | USD0.5-1/pc |
| Detalles de empaquetado: | Bolsa de plástico + cartón |
| Tiempo de entrega: | 5-8 días laborables |
| Condiciones de pago: | T/T, Unión Occidental |
| Capacidad de la fuente: | 100000 unidades por mes |
|
Información detallada |
|||
| Personalización: | Sí | ||
|---|---|---|---|
| Resaltar: | Fiber optic attenuator LC SC FC,Fixed female-female fiber attenuator,FTTx telecom data center attenuator |
||
Descripción de producto
Fiber Optic Attenuator Fixed Female-Female LC/SC/FC for FTTx Telecom Data Center
Product Overview
Takfly Fixed Type Attenuator family offers high performance of variously fixed attenuation for industrial standard connections. Wide attenuation range, extremely low return loss, polarization insensitive, and excellent repeatability. With our highly integrated design and manufacturing capability, Takfly can also provide customized products to help our customer for better opportunities. Our attenuator complies with industry green initiative such as ROHS.
Key Features
- Highly protective dust cap, fast installation: Snap-on fixing, convenient and fast, dust cap protection, prevent debris and pollution, RoHS compliant.
- Featured high quality ceramic sleeves: High-quality and high-precision ceramic sleeves are used to achieve high-precision alignment of connectors to ensure long-term stable mechanical and optical performance.
- Multiple Types Optional: TAKFLY's female to female fixed attenuators are available in various types, as well as various styles of dust caps.
Applications
It is widely applied to test equipment, data center, CATV system etc.
Technical Parameters
| Type | Parameter | UPC | APC | MM |
|---|---|---|---|---|
| Insertion Loss | SM: 1310nm/1550nm MM: 850nm/1300nm |
≤0.3dB | ≤0.3dB | ≤0.3dB |
| Duration | >1000times | <0.1dB | ||
| Tensile Strength | >100N | <0.1dB | ||
| Tolerance | DB Value≤10dB =±0.5 & DB Value≥10dB =±0.75 | |||
| Operating Temperature(℃) | -40℃~+85℃ | |||
| Storage Temperate(℃) | -40℃~+85℃ | |||

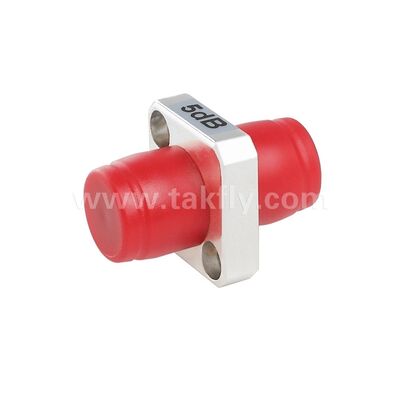

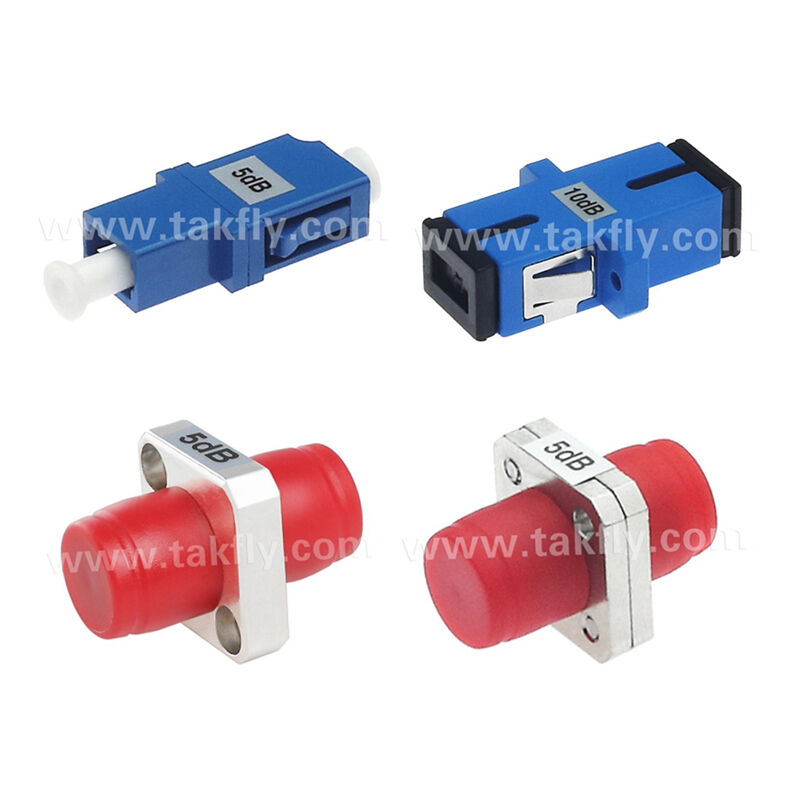

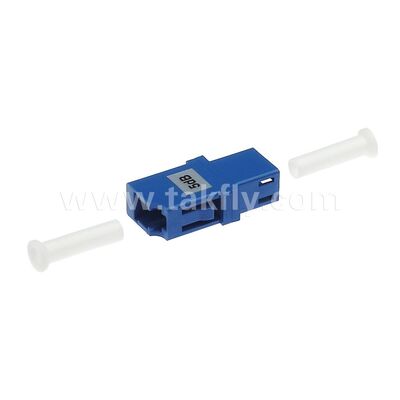

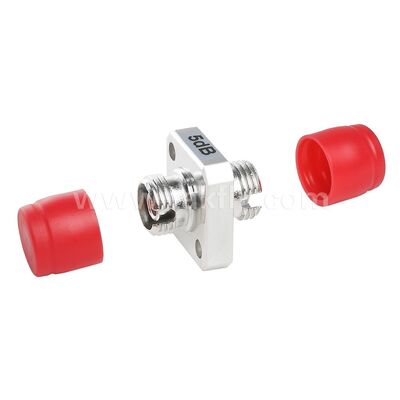

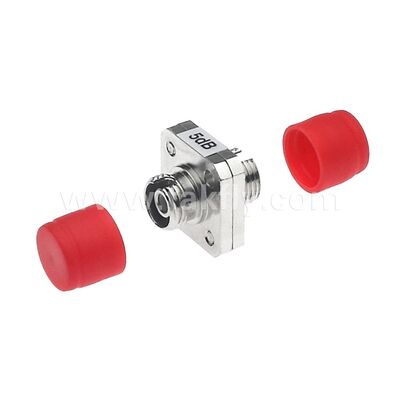

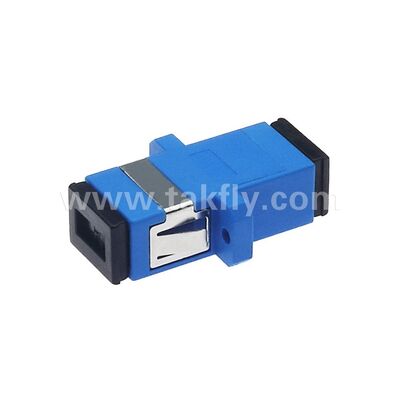

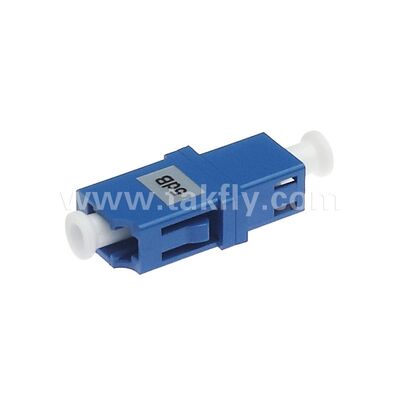

Product Images
