36CH FAU Fiber Array Unit with Hybrid Structure High Density and Precision Alignment for Data Centers
Datos del producto:
| Lugar de origen: | Shénzhen, China |
| Nombre de la marca: | OEM/Takfly |
| Certificación: | CE, ROSH REACH |
| Número de modelo: | DF-MT-2FA |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 piezas |
|---|---|
| Precio: | Can be negotiated |
| Detalles de empaquetado: | Bolsas de PP + caja de cartón/caja de plástico + caja de cartón |
| Tiempo de entrega: | 3-15 días hábiles según cantidad y requisitos |
| Condiciones de pago: | LC, T/T, Western Union, MoneyGram, Paypal |
| Capacidad de la fuente: | 20000 unidades por mes |
|
Información detallada |
|||
| Nombre del producto: | Unidad de matriz de fibra 36CH FAU (32SM+4PM) | Tipo de fibra: | OM3, OM4; OM1, OM2; OS1, OS2; P.M; OM5 |
|---|---|---|---|
| recuento de fibras: | 36Fibra | Ángulo FA: | 0/42,5° |
| Longitud de la fibra: | 20~100 mm, longitud personalizada disponible | ||
| Resaltar: | Hybrid Structure Fiber Array Unit,High Density FAU,Precision Alignment 36CH Fiber Array Unit |
||
Descripción de producto

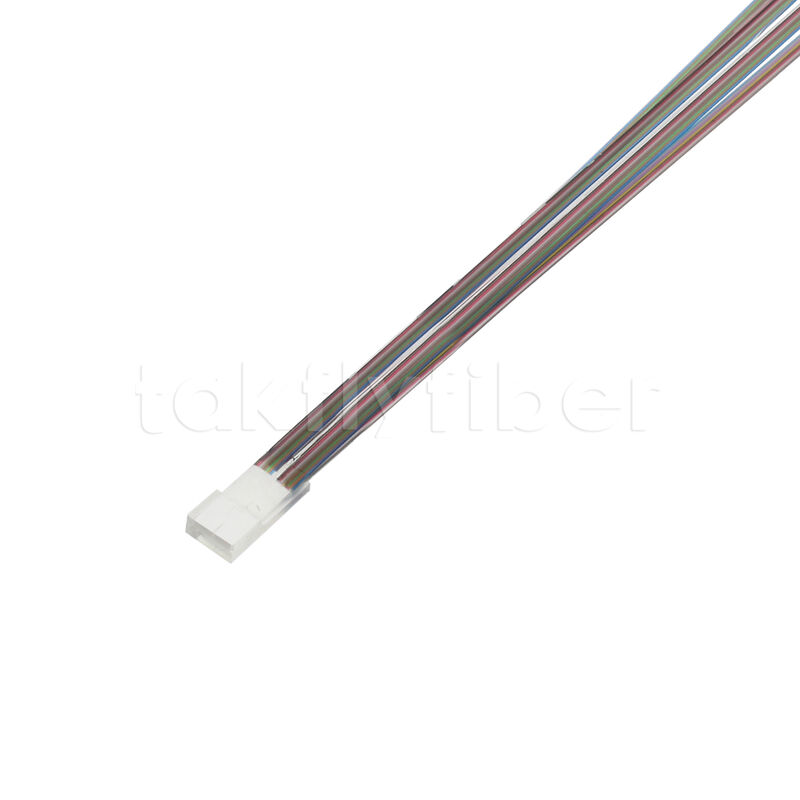

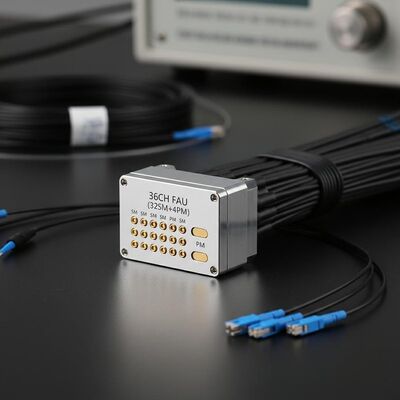

36CH FAU (32SM+4PM) Fiber Array Unit
Takfly designs and produces a comprehensive selection of fiber array units (FAUs) engineered for long-haul and metro networks, as well as data center applications. Leveraging our expertise in specialty fibers and customizable V-groove chips and covers, our FAU products can be tailored to meet your specific requirements, including inter-fiber core pitch and precision, number of channels, fiber type, and termination type.
Each fiber array unit delivers ultra-accurate fiber core positioning, ensuring low insertion loss and high optical return loss, achieved through our advanced dicing machines and core pitch measurement systems. Takfly Group also provides FA-integrated connectors and interposers to support the evolving needs of photonic integrated circuit (PIC) development.
Key Features
- Customizable Design: Tailored to meet specific customer dimensional requirements

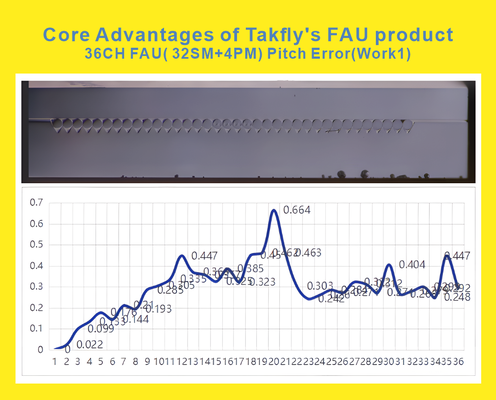

- Ultra-Precision Pitch Control: Achieved through proprietary process technology, with Pitch Error < 0.8μm
- Hybrid Structure: Combines 32 SM fibers for high-bandwidth, long-distance transmission with 4 PM fibers for maintaining polarization in specialized sensors or coherent systems
- High Density: 36 channels designed for parallel optics, compact spacing, and efficient coupling, ideal for silicon photonics and Co-Packaged Optics (CPO)
- Precision Alignment: Utilizes high-precision V-grooves and specialized adhesives to ensure minimal insertion loss between PIC waveguides and fiber cores
- Customization: Typical configurations allow for specific fiber pitches, polishing angles, and fiber types to match specific chip designs
Typical Applications
- Data center interconnects
- Optical telecommunications
- High-speed optical computing
- Biomedical devices
- Silicon photonic integration
- Coherent communication modules
- High-speed optical modules
Technical Specifications
Frequently Asked Questions
Could you customize the MT to FA for customers?
Yes, we can. OEM is available. Welcome to send us your drawing requirements.
What's your production capacity for MT-FA?
Our production capacity is 20K ~40K pieces per month, depending on different channel configurations.
Can I visit your facility?
Sure, our factories are located in Shenzhen and Zhongshan, Guangdong, China. Please contact us to schedule an appointment.
What if there is a quality problem when we receive the goods?
If quality issues arise upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, and we'll implement improvements for future production.
What are your packing terms?
Generally, we pack goods in blister boxes and cartons, but we can also accommodate custom packaging requests.
What are your payment terms?
We accept T/T, Paypal, Western Union, Alipay, and other payment methods.
What are your delivery terms?
We offer EXW, FOB, CFR, CIF, and DDU delivery terms.
How about your delivery time?
Generally, 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
