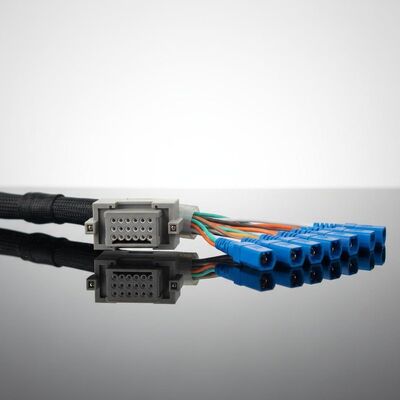

MT to FA Fiber Array Assemblies with Customized Length High Accuracy and Multi-Channel Transmission for Data Centers
Datos del producto:
| Lugar de origen: | Shénzhen, China |
| Nombre de la marca: | OEM/Takfly |
| Certificación: | CE, ROSH REACH |
| Número de modelo: | DF-MT-2FA |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 piezas |
|---|---|
| Precio: | Can be negotiated |
| Detalles de empaquetado: | Bolsas de PP + caja de cartón/caja de plástico + caja de cartón |
| Tiempo de entrega: | 3-15 días hábiles según cantidad y requisitos |
| Condiciones de pago: | LC, T/T, Western Union, MoneyGram, Paypal |
| Capacidad de la fuente: | 20000 unidades por mes |
|
Información detallada |
|||
| Nombre del producto: | Conjuntos de matrices de fibra MT a FA para centros de datos y aplicaciones de detección | Tipo de fibra: | OM3, OM4; OM1, OM2; OS1, OS2; P.M; OM5 |
|---|---|---|---|
| recuento de fibras: | 2F/4F/8F/12F/16F/24F | Ángulo FA: | 0/42,5° |
| género MT: | Macho femenino | Longitud de la fibra: | 20~100 mm, longitud personalizada disponible |
| Resaltar: | Customized Length Fiber Array Assemblies,High Accuracy MT to FA Fiber Array Assemblies,Multi-Channel Transmission Fiber Optic Patchcord |
||
Descripción de producto
MT to FA Fiber Array Assemblies for Data Centers and Sensing Applications
Takfly designs and manufactures precise fiber arrays for data centers and sensing applications. Our arrays are widely configurable, allowing customers to specify parameters such as number of channels, fiber pitch, fiber type, front face polishing type, and outer dimensions. Fiber array units feature minimal fiber core offsets thanks to our proprietary extremely precise v-grooves and lids.
Key Features
- GR-1435, GR-1221 compliant
- Transmission mode: multi-channel, both serial and parallel
- High accuracy performance
- Support for various configurations: 12 x 1.25~3.5G, 2X40G(4x10G), 2X100G(4x25G), 10X10G, 12x10G, 4x32G, 8X10G, 8X25G, 8X50G, 8X100G
- Coupling Mode: Active coupling with light source (0~45 degrees) and Passive coupling with guide pins (90 degrees)
- IL/RL Specifications: MT IL ≤0.60 dB typical 0.20 dB, MT RL ≥20 dB
- Operating temperature range: -40℃ to +85℃
Technical Specifications
| Connector A | MT Ferrule with guide pin |
|---|---|
| Connector B | FA, customized size/angle available |
| Fiber shape | Ribbon/single fibers |
| Fiber count | 2F/4F/8F/12F/16F/24F |
| Fiber type | OM3, OM4; OM1, OM2; OS1, OS2; PM; OM5 |
| Length | 20~100mm, customized length available |
| Length tolerance | +500um/-0um |
Frequently Asked Questions
Could you customize the MT to FA for customers?
Yes, we can. OEM is available. Welcome to send us your drawing requirements.
What's your production capacity for MT-FA?
Our production capacity is 20K ~40K pieces per month, depending on different channel configurations.
Can I visit your facility?
Sure, our factories are located in Shenzhen and Zhongshan, Guangdong, China. Please contact us to schedule an appointment.
What if there is a quality problem when we receive the goods?
If quality issues arise upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, and we'll implement improvements for future production.
What are your packing terms?
Generally, we pack goods in blister boxes and cartons, but we can also accommodate custom packaging requests.
What are your payment terms?
We accept T/T, Paypal, Western Union, Alipay, and other payment methods.
What are your delivery terms?
We offer EXW, FOB, CFR, CIF, and DDU delivery terms.
How about your delivery time?
Generally, 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
