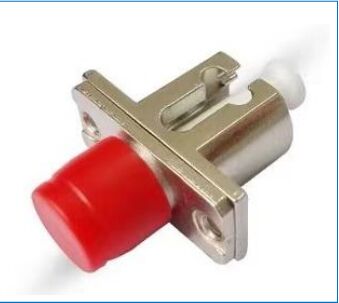

FC-LC Single-core metal flanges Adapter SM/MM Low IL 0.3dB High Performance
Datos del producto:
| Lugar de origen: | China, Shenzhen |
| Nombre de la marca: | DF/OEM/Nuetral |
| Certificación: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Número de modelo: | Adaptador de bridas metálicas unipolares FC-LC |
Pago y Envío Términos:
| Cantidad de orden mínima: | Negociable |
|---|---|
| Precio: | $ 6.5/per |
| Detalles de empaquetado: | Caja de ampolla + cartón |
| Tiempo de entrega: | Entre 5 y 9 días laborables dependiendo del QTY |
| Condiciones de pago: | En el caso de las empresas de servicios financieros, el importe de las cuotas es igual al importe de |
| Capacidad de la fuente: | 1000 unidades/día |
|
Información detallada |
|||
| Nombre del producto: | FC-LC Bridas metálicas unipolares Adaptador SM/MM Bajo IL 0.3dB Alto rendimiento | Pérdida de inserción: | <0.2dB |
|---|---|---|---|
| Pérdida de devolución: | SM≥45dB | Repetibilidad: | <0.2dB |
| Tipos de fibra óptica: | SM/mm | Rango de temperatura de almacenamiento (℃): | -40℃ - +75℃ |
| Certificado: | CE/ROHS/REACH: las normas de seguridad y de seguridad | ||
| Resaltar: | FC-LC fiber optic adapter,single-core metal flange adapter,low insertion loss fiber adapter |
||
Descripción de producto
FC-LC Single-core Metal Flanges Adapter SM/MM Low IL 0.3dB High Performance
This adapter differs from ordinary adapters and is primarily used for connecting two ends with different inserting core diameters.
Applications
- Telecommunication
- CATV
- LAN & WAN
- Network
- Broadband
- FTTH
Features
- SM and MM connector can be used interchangeably
- Precision connection with sleeve
- Low insertion loss, High echo loss
- Good interchangeability and reliability
- High precision of mechanical dimensions accuracy
- Meet IEC and ROHS standards
Technical Parameters
| Parameter | Specification |
|---|---|
| Interchangeability(dB) | ≤ 0.30 |
| Insertion Loss(dB) | ≤ 0.50 |
| Repeatability(dB) | ≤ 0.30 |
| Casing Material | Zirconium dioxide ceramics |
| Storage Temperature(℃) | -40℃ to +85℃ |
| Operating Temperature Range(℃) | -20℃ to +70℃ |
Why Choose TAKFLY?
Manufacturing Excellence
- Over 25 years of manufacturing experience in fiber optic products
- More than 500 assembly workers with 5+ years of experience
- 10+ R&D Engineers dedicated to product innovation
- 16 sets of Germany imported injection machines and 16 production lines
- 30+ sets of testing equipment including OTDR, 3D, VFL, IL & RL test instruments, tension strength testers, crush resistance testers, power meter testers, and light checkers
- OEM branding available
- Regular participation in major industry exhibitions: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control
- Raw material incoming inspection with spot checks before production
- Comprehensive inspection after each manufacturing process
- Thorough inspection of work-in-progress
- Complete finished product inspection before packaging
- Final spot checks before shipping
Delivery & Packaging
- Samples: 1-3 working days
- Mass production orders: 3-7 working days
- Flexible packaging options: Plastic bags, cartons, and pallets available according to customer requirements
