SC Round Bare Fiber Adapter SM/MM Low IL 0.2dB High Performance
Datos del producto:
| Lugar de origen: | China, Shenzhen |
| Nombre de la marca: | DF/OEM/Nuetral |
| Certificación: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Número de modelo: | Rendimiento bajo desnudo redondo del adaptador SM/MM IL 0.2dB de la fibra del SC alto |
Pago y Envío Términos:
| Cantidad de orden mínima: | Negociable |
|---|---|
| Precio: | negotiable denpend on QTY |
| Detalles de empaquetado: | Caja de ampolla + cartón |
| Tiempo de entrega: | Entre 5 y 9 días laborables dependiendo del QTY |
| Condiciones de pago: | En el caso de las empresas de servicios financieros, el importe de las cuotas es igual al importe de |
| Capacidad de la fuente: | 1000 unidades/día |
|
Información detallada |
|||
| Nombre del producto: | Rendimiento bajo desnudo redondo del adaptador SM/MM IL 0.2dB de la fibra del SC alto | Férula el diámetro interior de: | 125/126/127um |
|---|---|---|---|
| Diámetro exterior de la virola: | 2,5 mm/1,25 mm | Pérdida de inserción: | <0.2dB |
| Repetibilidad: | <0.2dB | Tipos de fibra óptica: | SM/mm |
| Frecuencia de conexión y extracción: | ＞ 1000 veces | Rango de temperatura de almacenamiento (℃): | -40℃ - +80℃ |
| Certificado: | CE/ROHS/REACH: las normas de seguridad y de seguridad | ||
| Resaltar: | SC round fiber optic adapter,low insertion loss fiber adapter,SM MM fiber optic connector |
||
Descripción de producto

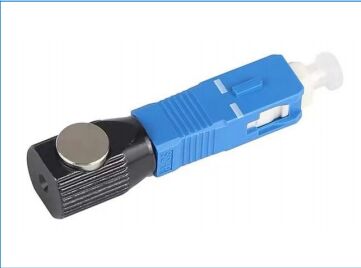

SC Round Bare Fiber Adapter SM/MM Low IL 0.2dB High Performance
SC Round Bare Fiber Adapter SM/MM Low IL 0.2dB High Performance
SC Round Bare Fiber Adapter Overview
Bare fiber adapter is an auxiliary tool for optical fiber data testing. Because the bare adapter plug hole and bare fiber through the hole without epoxy glue and any medium, the bare fiber is easy to be inserted and pulled out and repeatedly used, and has low insertion loss and easy operate.
SC Round Bare Fiber Adapter Applications
- Acting on bare fiber, temporary connection OTDR, optical power meter, light source and other fiber port data and test instrumentation equipment
- Temporary connection of optical fiber and emergency repair of optical fiber
SC Round Bare Fiber Adapter Features
- Easy to operate intuitive, can be observed by the naked eye
- Single mode and multimode fiber are available
- The use of unique metal sheet crimp fiber clamp design, safe, reliable, low insertion loss
- The inserts and through holes are free of epoxy glue and any medium, easy to nail fiber insert, pull out and repeat multiple use
- The ferrule and connector modules can be replaced, the size of the ferrule and the connector can be customized and can be varied
SC Round Bare Fiber Adapter Parameters
| Ferrule the inside diameter of | 125/126/127um |
| Ferrule Outside diameter | 2.5mm /1.25mm |
| Insert loss | ＜0.2dB |
| Repeatability | ＜0.2dB |
| Optical Fiber Types of | SM/MM |
| Plug and pull frequency | ＞1000times |
| Storage Temp Range(℃) | -40℃~+ 80℃ |
Why Choose TAKFLY
Manufacturing Excellence
- Over 25 years of manufacturing experience in fiber optic products
- More than 500 assembly workers with 5+ years of experience
- 10+ R&D Engineers dedicated to product innovation
- 16 sets of Germany imported injection machines and 16 production lines
- 30+ sets of testing equipment including OTDR, 3D, VFL, IL & RL test instruments, tension strength testers, crush resistance testers, power meter testers, and light checkers
- OEM branding available
- Regular participation in major industry exhibitions: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control
- Raw material incoming inspection with spot checks before production
- Comprehensive inspection after each manufacturing process
- Thorough inspection of work-in-progress
- Complete finished product inspection before packaging
- Final spot checks before shipping
Delivery & Packaging
- Samples: 1-3 working days
- Mass production orders: 3-7 working days
- Flexible packaging options: Plastic bags, cartons, and pallets available according to customer requirements
