5-port Megabit Industrial DIN-Rail POE Switch
Datos del producto:
| Lugar de origen: | China, Shenzhen |
| Nombre de la marca: | TAKFLY/OEM |
| Certificación: | CE, ROHS, REACH |
| Número de modelo: | Puerto RJ45 DF-5×10/100Mbps |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 |
|---|---|
| Precio: | Can be negotiated |
| Detalles de empaquetado: | caja de cartón |
| Tiempo de entrega: | 3-7 días |
| Condiciones de pago: | L/C, T/T, Western Union, Moneygram, PayPal |
| Capacidad de la fuente: | 5000 piezas por semana |
|
Información detallada |
|||
| Tipo de producto:: | Conmutadores industriales de carril DIN Megabit | Interfaz: | 5 puertos RJ45 de 10/100Mbps |
|---|---|---|---|
| Fuente de alimentación: | Válvula de entrada: DC48 57V/bloque de terminales | Caparazón: | Grado de protección IP40, carcasa metálica |
| Instalación: | Rincón | Clase de protección.:: | IP40 |
| Temperatura de funcionamiento:: | 40℃~+85℃ | ||
| Resaltar: | 5-port DIN-rail PoE switch,Megabit industrial Ethernet switch,DIN-rail fiber switch with PoE |
||
Descripción de producto

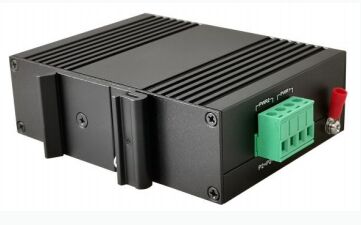

5-port Megabit Industrial DIN-Rail POE Switch
The 5-port Megabit Industrial DIN-Rail POE Switch adopts store-and-forward mode with high performance and low power consumption design. Featuring compact size, ease of use, and long lifespan, this product is engineered for industrial environments with comprehensive protection measures including lightning protection, anti-static, and reverse connection protection.
Operating temperature range of -40℃ to +85℃ ensures reliable performance in extreme conditions. The switch automatically learns and updates MAC addresses, enhancing network transmission and switching performance specifically for industrial applications.
Key Features

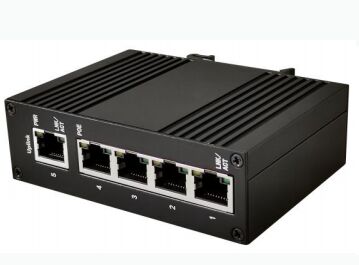

- 5×10/100Mbps RJ45 ports with Power over Ethernet (PoE) support
- Compliant with IEEE802.3 (Ethernet), IEEE802.3u (Fast Ethernet), and IEEE802.3x (flow control) standards
- Supports IEEE802.3af and IEEE802.3at PoE protocols
- Automatic negotiation for 10/100Mbps environments
- Auto MDI/MDIX crossover detection for easy installation
- Full-duplex and half-duplex communication support
- High-standard electromagnetic interference protection
- Dual redundant power inputs for uninterrupted operation
- Industrial-grade components with rigorous production control
- Full aluminum alloy casing for superior heat dissipation
- DIN rail mounting with IP40 protection rating
Technical Specifications
| Port Configuration | 5×10/100Mbps RJ45 ports |
|---|---|
| PoE Standards | IEEE802.3af, IEEE802.3at |
| Operating Temperature | -40℃ to +85℃ |
| Protection Rating | IP40 |
| Mounting | DIN rail |
| Power Input | Dual redundant power supply |
Applications
Intelligent transportation, industrial monitoring, mining, power generation, water conservancy, oil fields, infrastructure, ports, energy, agriculture, wireless coverage, military applications, and public utility markets. Ideal for harsh environments exceeding commercial product specifications.
