OCS Optical Switch 2D FA Product SM Low IL 0.3dB High Performance
Datos del producto:
| Lugar de origen: | China, Shenzhen |
| Nombre de la marca: | DF/OEM/Nuetral |
| Certificación: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Número de modelo: | Rendimiento bajo IL 0.3dB del producto SM del interruptor óptico 2.o FA de OCS alto |
Pago y Envío Términos:
| Cantidad de orden mínima: | Negociable |
|---|---|
| Precio: | negotiable denpend on QTY |
| Detalles de empaquetado: | Caja de ampolla + cartón |
| Tiempo de entrega: | Entre 5 y 9 días laborables dependiendo del QTY |
| Condiciones de pago: | En el caso de las empresas de servicios financieros, el importe de las cuotas es igual al importe de |
| Capacidad de la fuente: | 1000 unidades/día |
|
Información detallada |
|||
| Nombre del producto: | 3xFA-2xMT | Tipo de fibra: | Rendimiento bajo IL 0.3dB del producto SM del interruptor óptico 2.o FA de OCS alto |
|---|---|---|---|
| Pérdidas de interacción: | IL <0,3 dB (1310 nm) | Pérdida de devolución: | MT:UPC>35dB, APC>40dB RX:RL>35dB |
| Diámetro de fibra: | (8,6～9,5）±0,4um | atenuación: | ≤ 0,4 dB/km a 1310 nm ≤ 0,3 dB/km a 1550 nm |
| Temperatura de funcionamiento: | -40 ℃ ~ 85 ℃ | Calificación: | Grado de telecomunicaciones |
| Certificado: | CE/ROHS/REACH: las normas de seguridad y de seguridad | ||
| Resaltar: | OCS optical switch 2D FA,SM optical switch low IL,high performance optical switch |
||
Descripción de producto

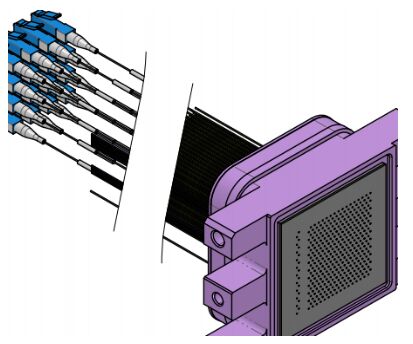

OCS Optical Switch 2D FA Product SM Low IL 0.3dB High Performance
OCS Optical Switch 2D FA Product SM Low IL 0.3dB High Performance
Product Overview
Two-dimensional FAU fiber optic array components are mainly used in OCS optical switching equipment to realize the input and output functions of array optical signals, providing data switching solutions for advanced data centers that support applications such as artificial intelligence (AI), machine learning (ML), and high-performance computing (HPC).
Key Applications
- High Port Density: Customized solutions are available to meet diverse customer needs
- Customizable Fiber Spacing: Precisely customized fiber spacing is available to meet specific customer requirements and adapt to different application scenarios
- High-Precision Fiber Positioning: Utilizing precision fiber array processing technology, high-precision fiber positioning is achieved, with core offset controlled within 1µm
- Low Transmission Loss: High-precision coupling alignment technology ensures efficient optical signal transmission, with insertion loss ≤0.8dB
- High Operational Stability: The product undergoes rigorous mechanical environment testing to ensure stable and reliable optical signal transmission during use
Product Features
- High-precision manufacturing process: Proprietary processes achieve ultra-precise pitch control, with a pitch error of <0.8μm, ensuring stable optical signal transmission
- Customized design: Customizable to meet specific customer size requirements, adapting to diverse application scenarios
- Clear production capacity planning: Offering a full range of FAU and derivative products, covering needs from 100G to 800G and even next-generation optical modules, enabling rapid response to market demands
- Superior performance: As shown in the performance curves, key indicators such as insertion loss are controlled at industry-leading levels, with a peak loss of only 0.664dB, and stable below 0.4dB in most ranges
Technical Parameters
| Fiber type | SM G652D/G657A/G657B3 |
| Fiber Diameter | (8.6～9.5)±0.4um |
| Cladding Diameter | 125±1um |
| Coat Diameter | 245±10um |
| Attenuation | ≤ 0.4 dB/km @ 1310nm ≤ 0.3dB/km @ 1550nm |
| Operating Temperature | -40℃～85℃ |
| Environmental friendly | Complies with the EU RoHS and lead-free |
Performance Specifications
| Plug Type | LC/MT/MPO and so on |
| FA | 0° |
| SM Insert Loss | IL＜0.3dB (1310nm) |
| SM Return Loss | MT:UPC＞35dB ,APC＞40dB RX:RL＞35dB |
| Operating Temperature | -40℃～85℃ |
| Operating Humidity | 0%～70% |
| Storage Temperature | -40℃～85℃ |
Why Choose TAKFLY
Manufacturing Excellence
- Over 26 years of manufacturing experience in fiber optic products
- More than 500 assembly workers with 5+ years of experience
- 10+ R&D Engineers dedicated to product innovation
- 16 sets of Germany imported injection machines and 16 production lines
- 30+ sets of testing equipment including OTDR, 3D, VFL, IL & RL test instruments, tension strength testers, crush resistance testers, power meter testers, and light checkers
- OEM branding available
- Regular participation in major industry exhibitions: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control
- Raw material incoming inspection with spot checks before production
- Comprehensive inspection after each manufacturing process
- Thorough inspection of work-in-progress
- Complete finished product inspection before packaging
- Final spot checks before shipping
Delivery & Packaging
- Samples: 1-3 working days
- Mass production orders: 3-7 working days
- Flexible packaging options: Plastic bags, cartons, and pallets available according to customer requirements
Interested in our products or have questions?
Feel free to contact us at any time for more information or technical support.
