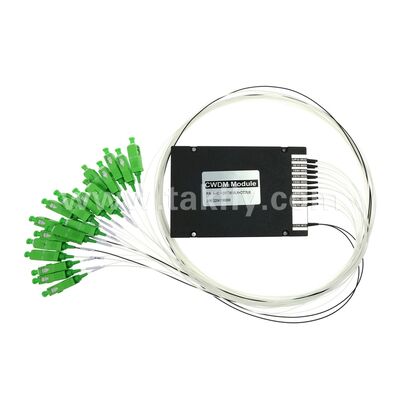

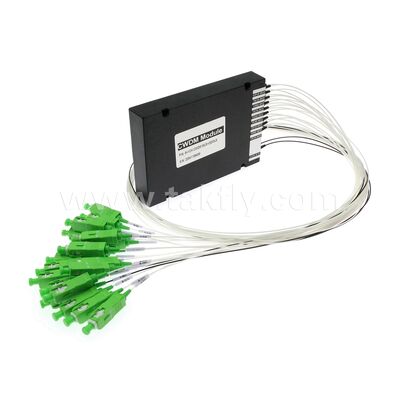

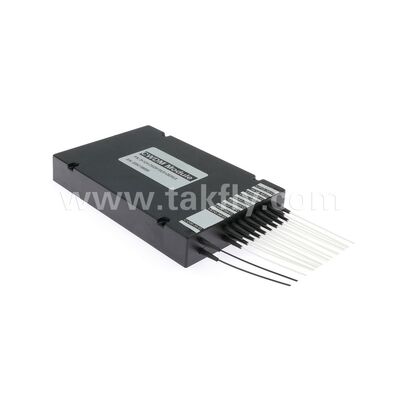

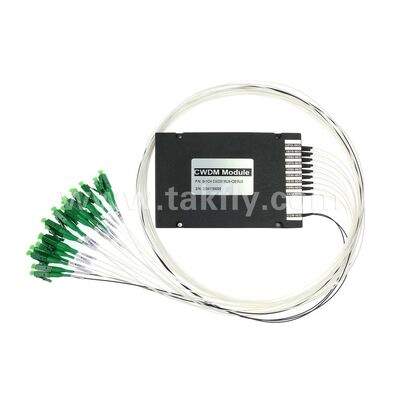

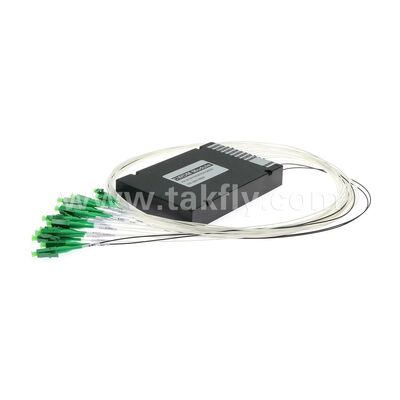

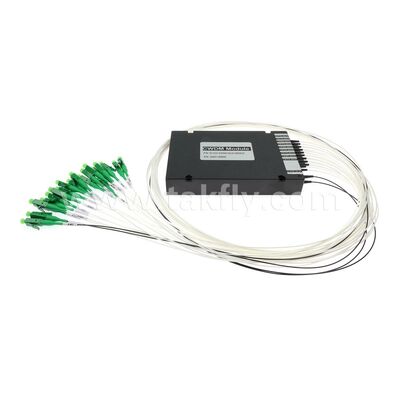

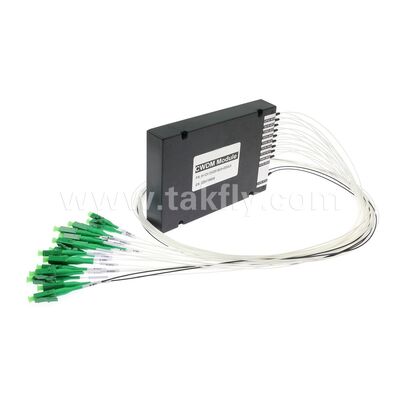

Fiber Optic CWDM 8+1Channel MUX & DEMUX ABS Module for Data Center FTTX
Datos del producto:
| Lugar de origen: | Porcelana |
| Nombre de la marca: | OEM |
| Certificación: | ISO, CE RoHS |
| Número de modelo: | DF-8+1 ABS CWDM |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 |
|---|---|
| Precio: | USD38-48/pc |
| Detalles de empaquetado: | CAJA DE CARTÓN |
| Tiempo de entrega: | 5-8 días laborables |
| Condiciones de pago: | T/T, Unión Occidental |
| Capacidad de la fuente: | 50000 unidades por mes |
|
Información detallada |
|||
| Conector: | para ser resuelto | ||
|---|---|---|---|
| Resaltar: | Fiber Optic CWDM MUX DEMUX module,8+1 Channel CWDM ABS module,Data Center FTTX WDM Mux Demux |
||
Descripción de producto
Fiber Optic CWDM 8+1 Channel MUX & DEMUX ABS Module for Data Center FTTX
8+1 Channel CWDM MUX & DEMUX ABS Module
Takfly's CWDM Mux & Demux ABS module utilizes wavelength division multiplexing technology based on TFF (thin film filter), offering multiple wavelength options. It multiplexes optical signals of different wavelengths into a single fiber for transmission and demultiplexes them into separate wavelength signals at the receiver end.
CWDM has established an important position in the access layer of Metropolitan Area Networks due to its wide band capabilities and low system equipment requirements.
Key Features
- Low Insertion Loss
- Wide Pass Band
- High Channel Isolation
- High Stability and Reliability
- Epoxy-free on Optical Path
Takfly provides multiple wavelengths and single or dual fiber transmission CWDM MUX+DEMUX options with customization capabilities.
Technical Specifications
| Parameter | Unit | Specifications |
|---|---|---|
| Channel Count | Ch | 8+1 |
| Channel Center Wavelength | nm | 1470/1490/1510/1530/1550/1570/1590/1610/UPGRADE 1270-1350 |
| Channel Passband | nm | ±7.5 |
| Insertion Loss | dB | <2.2 |
| Isolation Adjacent Channel | dB | 30 |
| Isolation Non-Adjacent Channel | dB | 40 |
| Passband Ripple | dB | 0.3 |
| Polarization Dependent Loss | dB | 0.1 |
| Directivity | dB | 55 |
| Return Loss | dB | 50 |
| Polarization Mode Dispersion | ps | 0.1 |
| Power Handling | mW | 500 |
| Pigtail and Connector Type | COM | 0.9/mm black loose tube with connector |
| Other ports | 0.9/mm white loose tube with connector | |
| Fiber Type | SMF-28e | |
| Fiber Length | m | ≥1 |
| Operating Temperature | ℃ | -10 ~ 70 |
| Storage Temperature | ℃ | -40 ~ 85 |
| Package Dimension | mm | ABS Module |
