SCAPC to SCAPC Transparent Patch Cord G657A2 PVC Invisible Fiber Optic Patch Cable
Datos del producto:
| Lugar de origen: | Porcelana |
| Nombre de la marca: | DF/OEM/Nuetral |
| Certificación: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Número de modelo: | TK-TI-PC--SA-AS-2.0x3.0-PVC-XXX |
Pago y Envío Términos:
| Cantidad de orden mínima: | 100 piezas |
|---|---|
| Precio: | US$0.01~4.69/PC |

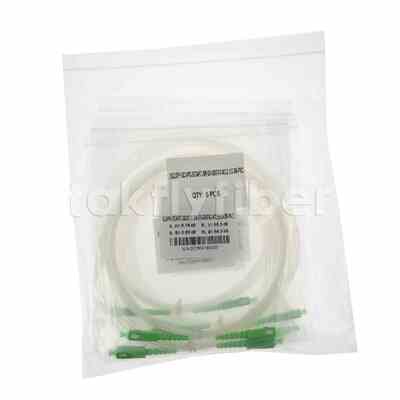

| Detalles de empaquetado: | Embalaje estándar de exportación |
| Tiempo de entrega: | Entre 5 y 9 días laborables dependiendo del QTY |
| Condiciones de pago: | En el caso de las empresas de servicios financieros, el importe de las cuotas es igual al importe de |
| Capacidad de la fuente: | 5000pcs/día |
|
Información detallada |
|||
| Nombre del producto: | SCAPC al cable de conexión de fibra óptica invisible de PVC transparente del cordón de conexión G657 | Pérdidas de interacción: | ≤0,3dB |
|---|---|---|---|
| Pérdida de devolución: | El sistema de control de velocidad (APC) SM ≥ 60 dB | Tipo de fibra: | Los requisitos de seguridad de los sistemas de seguridad de seguridad de los sistemas de seguridad d |
| Diámetro: | 2.0*3.0m m | Tipo de conector: | APC |
| Material de la chaqueta: | CLORURO DE POLIVINILO | Color: | Transparente |
| Longitud de onda: | 1310nm, 1550 nm | Longitud: | 3M o modificado para requisitos particulares |
| Temperatura de funcionamiento: | -20 ℃ ~ 70 ℃ | Diámetro de fibra: | 9/125 |
| Calificación: | Grado de telecomunicaciones | Certificado: | CE/ROHS/REACH: las normas de seguridad y de seguridad |
| Capacidad de producción: | 10000 unidades/día | ||
| Resaltar: | SCAPC to SCAPC fiber optic patch cable,transparent G657A2 fiber optic cord,PVC invisible fiber optic patchcord |
||
Descripción de producto

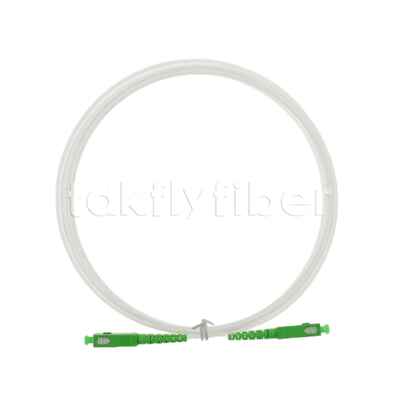

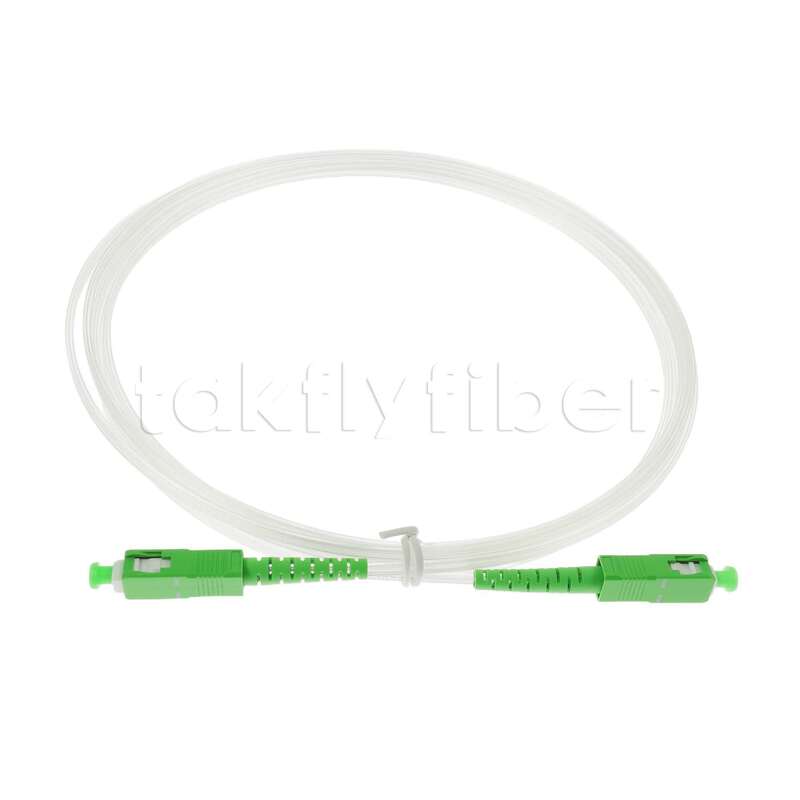

SCAPC to SCAPC Transparent Patch Cord G657A2 PVC Invisible Fiber Optic Patch Cable
Takfly SCAPC to SCAPC Transparent Patch Cord G657A2 PVC Invisible Fiber Optic Patch Cable is designed for indoor optical networks, offering a discreet and high-performance solution for modern fiber installations. Its ultra-thin and transparent design allows seamless integration into any indoor environment, making it perfect for fiber-to-the-room (FTTR) deployments.
Equipped with SC/APC connectors, the patch cord delivers reliable low-loss connections, supporting high-speed data transmission for telecom systems, smart homes, and enterprise networks. Built for flexibility, the 2.0*3.0mm cable is easy to install around tight spaces and provides long-term durability.
Product Specifications
Fiber Optic Attributes
- Mode field diameter: 8.6um±0.4um at 1310nm
- Cladding diameter: 125.0um±0.7um
- Coating diameter: 245um±10um
- Coating-cladding concentricity error: ≤12.5um
- Cut-off wavelength: ≤1260nm
- Attenuation coefficient: 1310≤0.4dB 1550≤0.3dB
FTTH Cable Information
- Number of fiber: 1 core
- Fiber type: G657A1/SM G657A2/G657B3
- Strength member material: FRP
- Diameter: 0.5mm*2
Outer Sheath
- Material: LSZH Black
- Cable size: 2.0*3.0mm
Connector Test Specifications
| Item | Specifications |
|---|---|
| Type | SC/APC(1310) |
| Insertion Loss | ≤0.3 dB + 0.36 dB/km*L(km) @ 1310nm ≤0.3 dB + 0.25 dB/km *L(km) @ 1550nm |
| Return Loss | ≥60dB |
| Endface | IEC 61300-3-35 |
| Durability(1000 Mating) | 0.2dB Max.increase |
| Installation Temperature | -10℃～+60℃ |
| Operating Temperature | -25℃~70℃ |
| Storage Temperature | -40℃~75℃ |
| Cable pull | 70N |
Optical Fiber Performance
| Parameter | Long Term | Short Term |
|---|---|---|
| Tensile strength (N) | 40 | 80 |
| Crush load (N) | 500 | 1000 |
| Wavelength (nm) | 1310/1550 | |
| Attenuation (dB) | 0.4/0.3 | |
| Cladding diameter (um) | 125±1 | |
| Cladding non-circularity | ≤1.0% | |
| Coating diameter (um) | 242±7 | |
Detailed Parameters
| NO. | Item | Unit | Specification SM G657A2 |
|---|---|---|---|
| 1 | Mode Field Diameter 1310nm | μm | 8.2~9.0 |
| Mode Field Diameter 1550nm | μm | 9.1~10.1 | |
| 2 | Cladding Diameter | μm | 125±0.7 |
| 3 | Cladding Non-Circularity | % | ≤0.7 |
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 |
| 5 | Coating Diameter | μm | 245±5 |
| 6 | Coating Non-Circularity | % | ≤6.0 |
| 7 | Cladding-Coating Concentricity Error | μm | ≤12 |
| 8 | Cable Cutoff Wavelength | nm | λcc ≤1260 |
| 9 | Attenuation(Max) 1310nm | dB/KM | ≤0.36 |
| Attenuation(Max) 1550nm | dB/KM | ≤0.25 | |
| 10 | Macro-Bending Loss 1 Turn x 7.5mm radius@1550nm | dB | ≤0.08 |
| Macro-Bending Loss 1 Turn x 7.5mm radius@1265nm | dB | ≤0.25 |
Applications
- FTTR (Fiber to the Room): Enables seamless fiber connectivity in residential or commercial indoor environments
- Indoor Optical Networks: Ideal for high-speed data transmission with minimal visibility impact
- Telecom Systems: Reliable connectivity for LAN, WAN, and metro networks
- Smart Homes: Supports modern home networks requiring aesthetically pleasing and high-performance cabling
- Enterprise Networking: Suitable for discreet indoor installations in offices and business centers
Key Features
- Invisible Fiber Design: 2.0*3.0mm cable with a transparent finish blends into surroundings for discreet indoor use
- High-Performance SC/APC Connectors: Ensures low insertion loss and high return loss for stable signal transmission
- Compact and Flexible: Easy to route around corners, walls, and ceilings without affecting performance
- Low Bend Sensitivity: Built with G.657A2/B3 fiber for excellent bend performance and durability
With more than 10 years of sales experience and shipping experience in optical fiber products, we have helped more than 127 customers to expand their business and increase sales. We believe we can provide you with professional guidance, help you save time and money, and increase your sales.
