Outdoor GYTS+2*4mm² Optical Cable Steel wire 12F
Resumen del producto
El cable óptico para exteriores GYTS+2*4 mm² integra 12 fibras con 2 cables de alimentación. Presenta un diseño de bloqueo de agua, durabilidad mecánica y transmisión simultánea de datos/potencia. Ideal para redes de telecomunicaciones, FTTH y proyectos de monitoreo con longitudes personalizadas disponibles.
Atributos personalizados del producto
Nombre del producto:
Cable óptico para exteriores GYTS+2*4mm² Cable de acero 12F
recuento de fibras:
12
Envases:
125 μm
Revestimiento (±5 µm):
250 μm
Diámetro del tubo suelto (mm):
2 mm
Material de tubo suelto:
PBT/PP
Miembro de fuerza Refuerzo central:
Cables de acero/cables de acero con cubierta de PE
Material de la funda:
MDPE/HDPE
Color:
Negro
Peso del cable (kg/km):
360
Temperatura de funcionamiento:
-20 ℃ ~ 70 ℃
Marca de fibra:
Corning, YOFC, OFS, y Draka
Resaltar:
Outdoor GYTS fiber optic cable
,12F steel wire optical cable
,4mm² armored fiber cable
Propiedades básicas
Lugar de origen:
China, Shenzhen
Nombre de la marca:
DF/OEM/Nuetral
Certificación:
CE/ROHS/REACH/ISO9001/ISO14001
Número de modelo:
Cable óptico para exteriores GYTS+2*4mm² Cable de acero 12F
Propiedades comerciales
Cantidad de orden mínima:
Negociable
Precio:
negotiable denpend on QTY
Detalles de empaquetado:
Caja de ampolla + cartón
Tiempo de entrega:
Entre 5 y 9 días laborables dependiendo del QTY
Condiciones de pago:
Las condiciones de venta de los productos incluidos en el presente anexo son las siguientes:
Capacidad de la fuente:
1000 unidades/día
Descripción del Producto
Outdoor GYTS+2*4mm² Optical Cable Steel wire 12F
The fibers,250μm,are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound.
The cable core is FRP or metallic strength member( some structures need add PE as bedding layer in the strength member). Electric wires and tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress. After two sides PSP are longitudinally applied over the inner sheath ,the cable is completed with PE or LSZH outer sheath.
Outdoor GYTS+2*4mm² Optical Cable Applications
-
Telecommunications network;
-
Construction of communication base stations in villages, remote areas in cities and towns ;
-
Residential areas and buildings FTTH;
-
Security monitoring project;
-
Others occasion which information together with electric power at the same time.
Outdoor GYTS+2*4mm² Optical Cable Features
-
Good mechanical and temperature performance;
-
Opto and electricity integrated, fully save pipeline resources;
-
Electric and optical cable maintain relatively independent structure, easy to import; export and link when installation;
-
Electricity lines, telephone lines, television lines, network lines, monitor lines and data lines are multi-one network, saves costs;
-
Larger operating temperature range;
-
Larger construction temperature range;
-
Cable diameter and bending radius are small, freely install in small space and compatible with optical signal and electric energy transmission.
Outdoor GYTS+2*4mm² Optical Cable Parameter and Properties
| Optical fiber type | G.652D | G.655 | 50/125um | 62.5/125um | |
|
Attenuation |
@850nm |
... |
... |
≤3.5 dB/km |
≤3.5 dB/km |
|
@1300nm |
... |
... |
≤1.5 dB/km |
≤1.5 dB/km |
|
|
@1310nm |
≤0.36 dB/km | ≤0.40 dB/km |
... |
... |
|
|
@1550nm |
≤0.22 dB/km |
≤0.23dB/km |
... |
... |
|
|
Bandwidth |
@850nm |
... |
... |
≥500 MHz·km |
≥200 MHz·km |
|
@1300nm |
... |
... |
≥1000 MHz·km |
≥600 MHz·km |
|
|
Numerical Aperture |
... |
... |
0.200±0.015NA |
0.275±0.015NA |
|
|
Cable Cut-off Wavelengthλcc |
≤1260nm |
≤1480nm |
... |
... |
|

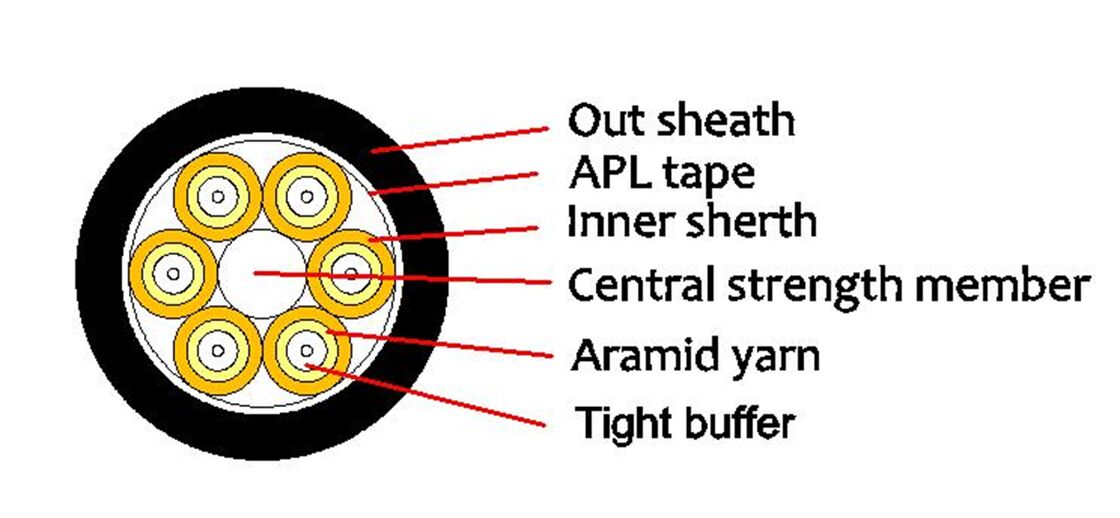

Outdoor GYTS+2*4mm² Optical Cable Structure
Other Requirements
Length of production optical cable:2000M
Optical cable outer sheath printing specifications, such as:
OPTICAL FIBER CABLE GYTS-12B1.3+2*4MM 12.5 MM/YY 00000M
Why choose TAKFLY?
Professional manufacturer:
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experienced
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
