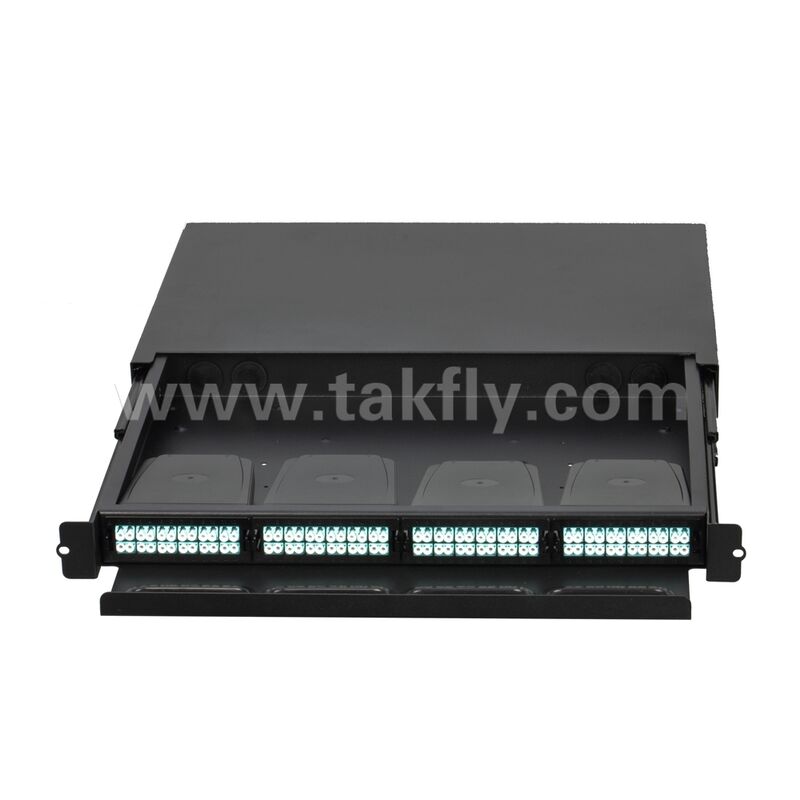

High Density 1U 96F MPO MTP - LC SM MM Fiber Optical Patch Panel / Fiber Optic Chassis / Fiber Optic ODF/ Fiber Optic Distribution Box
Datos del producto:
| Lugar de origen: | Shénzhen, China |
| Nombre de la marca: | OEM |
| Certificación: | CE/ROHS/CPR/REACH/ISO9001/ISO14001 |
| Número de modelo: | MPO MTP |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 |
|---|---|
| Precio: | USD10.00-100.00/Piece |
| Detalles de empaquetado: | con la caja del cartón |
| Condiciones de pago: | T/T, Western Union, Paypal |
|
Información detallada |
|||
| Conector de fibra: | MPO, MTP, TA, SC, LC, FC, ST, etc. | Núcleos de fibra: | Singlex, Duplex, 4, 8, 12, 24 fibras, etc. |
|---|---|---|---|
| Modo de fibra: | SM(G655,G652,G657), MM(OM1,OM2,OM3,OM4,OM5) | Tipo de pulido: | PC, UPC, APC |
| Género: | Masculino, Femenino | Diámetro del cable: | 250um, 0,9 mm, 2,0 mm, 3,0 mm o personalizado |
| Material de la chaqueta: | PVC, LSZH, OFNR, OFNP, etc. | Longitud del cable: | 0,5 M, 1 M, 3 M, 5 M o personalizado |
| Polaridad del cable: | Tipo A, Tipo B, Tipo C o Personalizado | Color de cables: | Amarillo, Aqua, Violeta, Lima o Personalizado |
| Resaltar: | 1U high density fiber optic patch panel,96F MPO MTP fiber optic chassis,SM MM fiber optic distribution box |
||
Descripción de producto
High Density 1U 96F MPO MTP - LC SM MM Fiber Optical Patch Panel / Fiber Optic Chassis / Fiber Optic ODF / Fiber Optic Distribution Box
High Density 1U 96F MPO MTP - LC SM MM Fiber Optical Patch Panel / Fiber Optic Chassis / Fiber Optic ODF / Fiber Optic Distribution Box.
MPO MTP LC SC FC ST Fiber Optical Patchcord / Optical Fiber Patch Cable / Fiber Optical Breakout Cable / Optical Fiber Trunk Cable /
Optical Fiber Fanout Cable designed for high-density connectivity applications, available in various configurations including
optical fiber patch cables, Fiber optical jumpers, and optical fiber trunk cables.
Technical Specifications
| Parameter | Standard SM | Low Loss (Elite) SM | Standard MM | Low Loss MM |
|---|---|---|---|---|
| Insertion Loss (Typical) | 0.35dB | 0.20dB | 0.35dB | 0.20dB |
| Insertion Loss (Maximum) | 0.75dB | 0.35dB | 0.60dB | 0.35dB |
| Return Loss | ≥60 for APC (8° Angle Polish) ≥20 for PC |
≥50 for PC | -- | -- |
| Male/Female | Male: With Pins, Female: Without Pins | |||
| Tensile Strength | ≤0.3 (Max 66N) | |||
| Vibration | ≤0.3 (10 ~ 55Hz) | |||
| Thermal Cycle | ≤0.3 (-40 ~ 75℃, 21 Cycles) | |||
