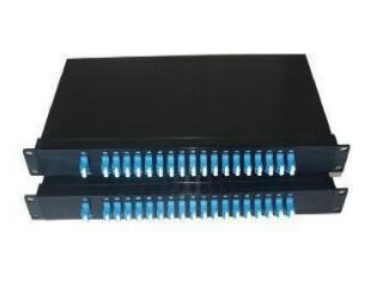

100GHz Dense Wavelength Division Multiplexer
Datos del producto:
| Lugar de origen: | China, Shenzhen |
| Nombre de la marca: | DF/OEM/Nuetral |
| Certificación: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Número de modelo: | Multiplexador de división de longitud de onda densa de 100 GHz |
Pago y Envío Términos:
| Cantidad de orden mínima: | Negociable |
|---|---|
| Precio: | negotiable denpend on QTY |
| Detalles de empaquetado: | Caja de ampolla + cartón |
| Tiempo de entrega: | Entre 5 y 9 días laborables dependiendo del QTY |
| Condiciones de pago: | Las condiciones de venta de los productos incluidos en el presente anexo son las siguientes: |
| Capacidad de la fuente: | 1000pcs/día |
|
Información detallada |
|||
| Nombre del producto: | Multiplexador de división de longitud de onda densa de 100 GHz | Longitud de onda de funcionamiento (NM): | Cuadrícula de 100 GHz de 100 GHz |
|---|---|---|---|
| Precisión de longitud de onda central (nm): | ± 0.05 | Espaciado de canales (GHz) GHz): | 100 |
| Pérdida de inserción: | ≤1,6 ≤2,5 ≤3,5 | Aislamiento (DB): | > 30 años |
| Pérdida de vuelta (DB): | >45 | Directividad (dB): | > 50 años |
| Temperatura de funcionamiento: | -5~+75 | Manejo de potencia máxima (mW): | 500 |
| Dimensión del paquete (mm): | L140xW100xH15 (módulo de 9 canales ~ 18 canales) 、 19 bastidores de 1U | Garantía: | 1 año, mantenimiento de por vida |
| Marca de fibra: | Corning, YOFC, OFS, y Draka | ||
| Resaltar: | 100GHz DWDM fiber optic multiplexer,dense wavelength division multiplexer with warranty,fiber optic patchcord DWDM module |
||
Descripción de producto
100GHz Dense Wavelength Division Multiplexer
Applications
- Channel Add/Drop
- DWDM Network
- Fiber Optical Amplifier
Key Features
- Low Insertion Loss
- Wide Pass Band
- High Channel Isolation
- High Stability and Reliability
Technical Specifications
| Parameter | 4 Channel | 8 Channel | 16 Channel |
|---|---|---|---|
| Channel Wavelength(nm) | ITU 100 GHz Grid | ||
| Center wavelength Accuracy(nm) | ±0.05 | ||
| Channel Spacing (GHz) | 100 | ||
| Channel Passband (@-0.5dB bandwidth) (nm) | ≥0.22 | ||
| Insertion Loss | ≤1.6 | ≤2.5 | ≤3.5 |
| Channel Uniformity | ≤0.6 | ≤1.0 | ≤1.5 |
| Channel Ripple | 0.3 | 0.3 | 0.3 |
| Isolation - Adjacent | N/A | >30 | >30 |
| Isolation - Non-adjacent | N/A | >40 | >40 |
| Insertion Loss Temperature Sensitivity (dB/℃) | ≤0.005 | ||
| Wavelength Temperature Shifting(℃) | <0.002 | ||
| Polarization Dependent Loss(dB) | <0.1 | ||
| Polarization Mode Dispersion(PS) | <0.1 | ||
| Directivity(dB) | >50 | ||
| Return Loss(dB) | >45 | ||
| Maximum Power Handling(mW) | 500 | ||
| Operating Temperature(℃) | -5~+75 | ||
| Storage Temperature(℃) | -40~85 | ||
Above specifications are for device without connector.
Product Information
| Configuration | Channel No. | Channel | Pigtail Type | Fiber length | Dimension (mm) | Connector |
|---|---|---|---|---|---|---|
| M=Mux D=Demux | 04=4 Channel 08=8 Channel 16=16 Channel N=N Channel |
C20=1561.42nm C21=1560.61nm |
0=250um 1=900um 2=2.0mm 3=3.0mm |
1=1m 2=1.5m 3=others |
1=L100xW80xH10 2=L140xW100xH15 3=19 1U Rack |
0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=others |
