SC/APC FTTH Drop Cable Pigtail with G657A1 Fiber and LSZH Black Jacket for Reliable Connectivity
Datos del producto:
| Lugar de origen: | Porcelana |
| Nombre de la marca: | Takfly |
| Número de modelo: | SM G657A1 |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 |
|---|---|
| Precio: | US$0.5-US$100 |
| Tiempo de entrega: | 3 a 12 días hábiles |
| Condiciones de pago: | T/T |
| Capacidad de la fuente: | 30000/mes |
|
Información detallada |
|||
| Resaltar: | SC/APC Connector Fiber Optic Pigtail,G657A1 Fiber FTTH Drop Cable Pigtail,LSZH Black Jacket SC/APC Pigtail |
||
|---|---|---|---|
Descripción de producto
SC/APC FTTH Drop Cable Pigtail, SM G657A1, 5.0*2.0mm, LSZH Black Jacket
Product Overview
This Fast Connect drop cable features an anti-vibration design for plug-and-play deployment, enabling rapid installation without splicing. It ensures high network reliability and durability for FTTH applications.
Outline Drawing
- Dust cap
- Connector: SC/APC SM
- Cable: SM G657A1 FTTH Drop Cable, Gray, LSZH jacket
Fiber Optic Specifications
- Mode field diameter: 8.6μm ± 0.4μm at 1310nm
- Cladding diameter: 125.0μm ± 0.7μm
- Coating diameter: 245μm ± 10μm
- Coating-cladding concentricity error: ≤12.5μm
- Cut-off wavelength: ≤1260nm
- Attenuation coefficient: 1310 ≤ 0.4dB, 1550 ≤ 0.3dB
Cable Construction
FTTH Cable Information
- Number of fiber: 1 core
- Fiber type: G657A1
- Strength member material: Steel wire
- Diameter: 0.45mm × 2
Self-Support Messenger Wire
- Material: Steel wire
- Diameter: 1.2mm
Outer Sheath
- Material: LSZH Black
- Cable size: 5.0 × 2.0mm
Connector Performance Specifications
| Parameter | Specification |
|---|---|
| Type | SC/APC (1310) |
| Insertion Loss | ≤0.3 dB + 0.36 dB/km*L(km) @ 1310nm ≤0.3 dB + 0.25 dB/km*L(km) @ 1550nm |
| Return Loss | ≥60dB |
| Endface | IEC 61300-3-35 |
| Durability (1000 Mating) | 0.2dB Max. increase |
| Installation Temperature | -10℃ to +60℃ |
| Operating Temperature | -25℃ to +70℃ |
| Storage Temperature | -40℃ to +75℃ |
| Cable Pull | 90N |
Optical Fiber Performance
| Parameter | Long Term | Short Term |
|---|---|---|
| Tensile Strength (N) | 300 | 600 |
| Crush Load (N) | 1100 | 2200 |
| Wavelength (nm) | 1310/1550 | |
| Attenuation (dB) | 0.4/0.3 | |
| Cladding Diameter (μm) | 125 ± 1 | |
| Cladding Non-Circularity | ≤1.0% | |
| Coating Diameter (μm) | 242 ± 7 | |
Schematic Drawing

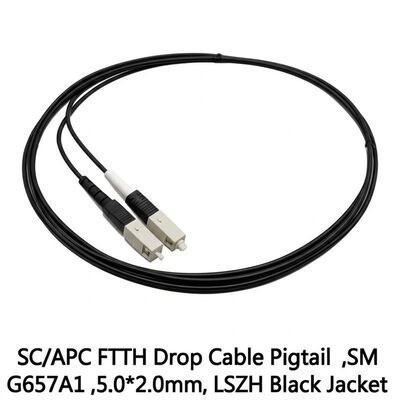

Product Image

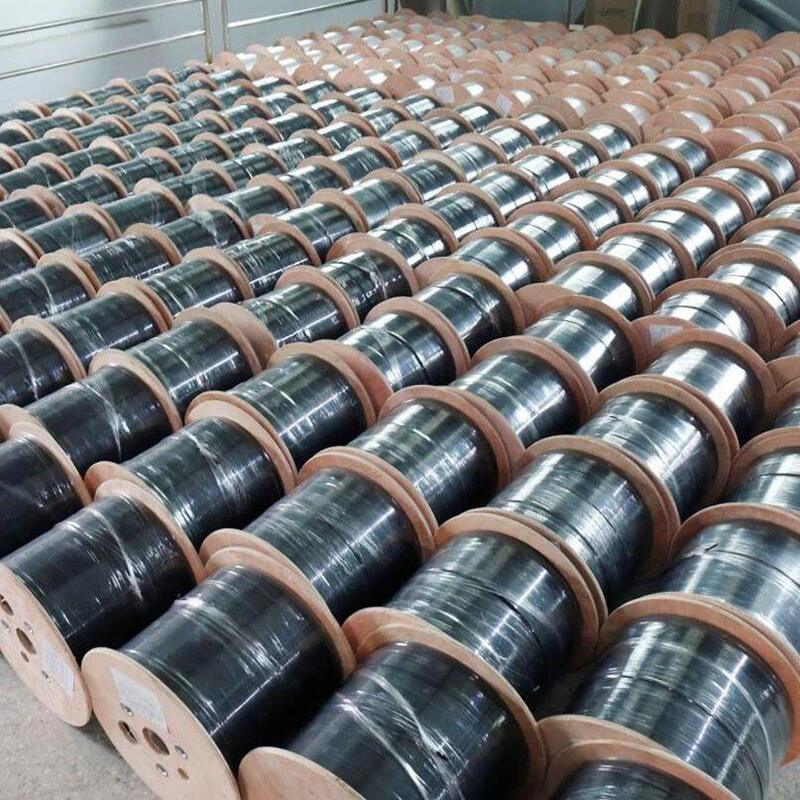

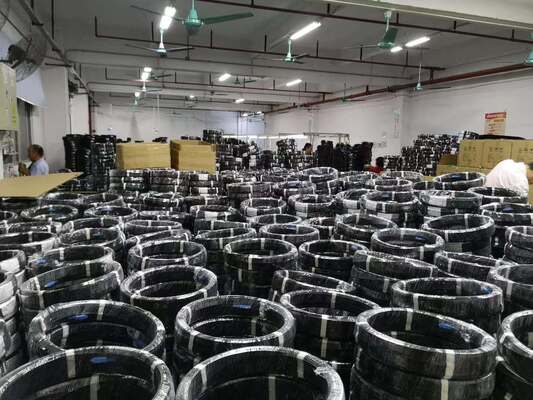

Packaging
Stretch film packaging of the offered products packaging as shown below:
