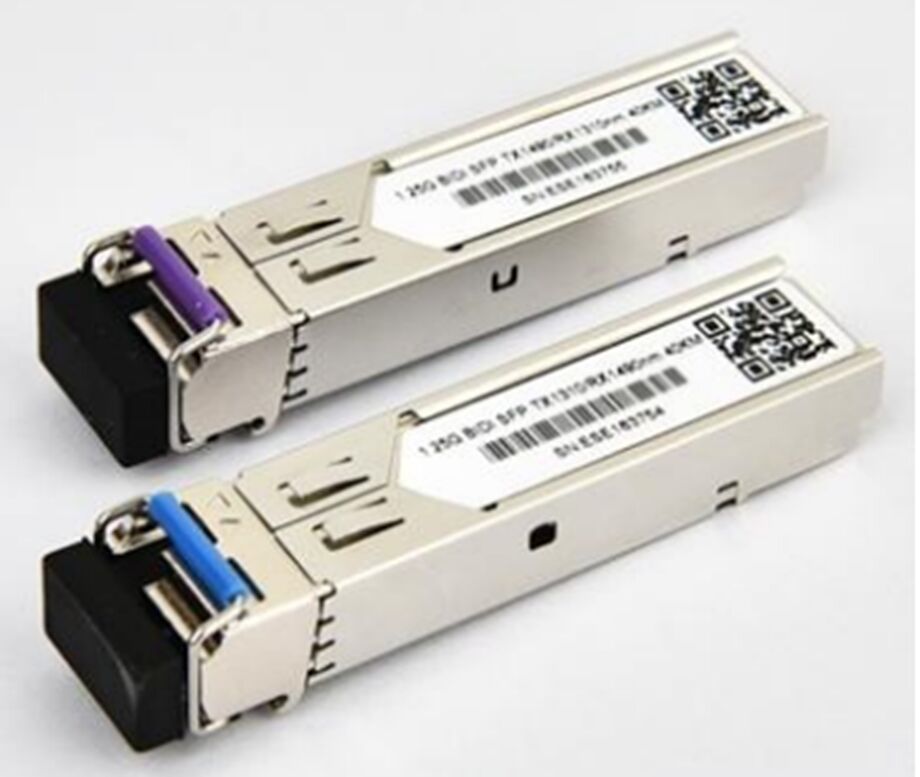

TK-B3424-3LCD20 1.25Gbps SFP Bi-Directional Transceiver, 20KM Reach Tx1310nm/Rx1490nm
Datos del producto:
| Lugar de origen: | China, Shenzhen |
| Nombre de la marca: | DF/OEM/Nuetral |
| Certificación: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Número de modelo: | Cable divisor PoE DF-PS-G 10/100/1000M (13W) |
Pago y Envío Términos:
| Cantidad de orden mínima: | Negociable |
|---|---|
| Precio: | negotiable denpend on QTY |
| Detalles de empaquetado: | Caja de ampolla + cartón |
| Tiempo de entrega: | Entre 5 y 9 días laborables dependiendo del QTY |
| Condiciones de pago: | Las condiciones de venta de los productos incluidos en el presente anexo son las siguientes: |
| Capacidad de la fuente: | 1000pcs/día |
|
Información detallada |
|||
| Nombre del producto: | Transceptor bidireccional SFP TK-B3424-3LCD20 de 1,25 Gbps, alcance de 20 km Tx1310nm/Rx1490nm | Tensión de alimentación: | 3,15-3,6 V |
|---|---|---|---|
| Corriente de suministro: | 185-280 mA | Impedancia diferencial de entrada: | 100 Ω |
| Oscilación de entrada de datos de un solo extremo: | 250-1200 mV | Transmitir deshabilitar tiempo de afirmación: | 10 nosotros |
| I Oscilación de salida de datos de un solo extremo: | 250-800 mV | Rechazo de la fuente de alimentación: | 100 mVpp |
| Temperatura de trabajo: | 0 °C al °C +70 | Temperatura de almacenamiento: | -40 °C a +85 °C (industrial) |
| Garantía: | 1 año, mantenimiento de por vida | Marca de fibra: | Corning, YOFC, OFS, y Draka |
| Resaltar: | 1.25Gbps SFP transceiver 20KM reach,Bi-Directional SFP module Tx1310nm/Rx1490nm,Optical transceiver module with 20KM range |
||
Descripción de producto
The SFP-BIDI transceivers are high-performance, cost-effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 20KM transmission distance with single-mode fiber.
The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472 specifications.
- Gigabit Ethernet
- Fiber Channel
- Switch to Switch interface
- Switched backplane applications
- Router/Server interface
- Other optical transmission systems
- Dual data-rate of 1.25Gbps/1.063Gbps operation
- 1310nm FP laser and PIN photodetector for 20KM transmission
- Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
- Digital Diagnostic Monitoring with Internal or External Calibration
- Compatible with SONET OC-24-LR-1
- RoHS compliant
- +3.3V single power supply
- Operating case temperature range: 0°C to +70°C (Commercial) / -40°C to +85°C (Industrial)
Notes:
- Connected directly to TX data input pins. AC coupled thereafter.
- Or open circuit.
- Into 100 ohms differential termination
- 20 - 80%
- Loss Of Signal is LVTTL. Logic 0 indicates normal operation; logic 1 indicates no signal detected.
- Receiver sensitivity is compliant with power supply sinusoidal modulation of 20 Hz to 1.5 MHz up to specified value applied through the recommended power supply filtering network.
