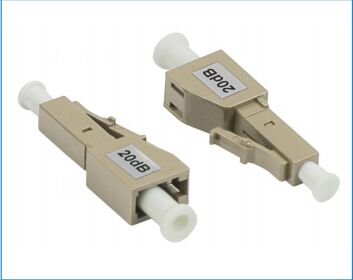

LC/UPC Multi-Mode Attenuator Low RL
Datos del producto:
| Lugar de origen: | China, Shenzhen |
| Nombre de la marca: | DF/OEM/Nuetral |
| Certificación: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Número de modelo: | TK-PC-48F-SC-OS2-50M |
Pago y Envío Términos:
| Cantidad de orden mínima: | Negociable |
|---|---|
| Precio: | negotiable denpend on QTY |
| Detalles de empaquetado: | Caja de ampolla + cartón |
| Tiempo de entrega: | Entre 5 y 9 días laborables dependiendo del QTY |
| Condiciones de pago: | Las condiciones de venta de los productos incluidos en el presente anexo son las siguientes: |
| Capacidad de la fuente: | 1000pcs/día |
|
Información detallada |
|||
| Nombre del producto: | Atenuador multimodo LC/UPC | Rango de longitud de onda de funcionamiento: | 850 nm/1300 nm |
|---|---|---|---|
| Tipo de UPC de pérdida de inserción: | ≤0,3dB | Tipo de UPC de pérdida de devolución: | ≥35dB |
| Tolerancia: | DB≤5dB =±0,5&DB≥5dB =±10% | Temperatura de funcionamiento: | -40 ℃～+85 ℃ |
| Temperatura de almacenamiento: | -40 ℃～+85 ℃ | Marca de fibra: | Corning, YOFC, OFS, y Draka |
| Resaltar: | LC/UPC multi-mode fiber attenuator,low RL fiber optic attenuator,LC/UPC attenuator with warranty |
||
Descripción de producto
LC/UPC Multi-Mode Attenuator Low RL
LC/UPC Multi-Mode Attenuator Low IL
Takfly LC/UPC Multi-Mode Attenuator family offers high performance of variously fixed attenuation for industrial standard connections. Wide attenuation range, extremely low return loss, polarization insensitive, and excellent repeatability.
Takfly LC/UPC Multi-Mode Attenuator family offers high performance of variously fixed attenuation for industrial standard connections. Wide attenuation range, extremely low return loss, polarization insensitive, and excellent repeatability.
With our highly integrated design and manufacturing capability, Takfly can also provide customized products to help our customer for better opportunities. Our attenuator complies with industry green initiative such as ROHS.
Product Applications
- FTTH, LAN, PON & Optical CATV
- Local ring net
- Optical fiber communication system
- Optical fiber test equipment
- Optical fiber network
Product Features
- Wide Attenuation Range
- Low Return Loss
- Low PDL
- Polarization Insensitive
- Various connector type
- Highly Reliable
Product Specifications
Product Picture
Why Choose TAKFLY
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experience
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
FAQ
Q1: How can I get your catalogue and price list?
A1: Please let us know your email or contacts from website directly for our catalogue and price list
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container load of mixed goods
Q3: How much will the shipping charges be?
A3: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested
Q4: Can I visit you?
A4: Sure, our factory is in Shenzhen, China. Please contact us to make an appointment
Q5: What if there is quality problem when we get the goods?
A5: If there is quality problem when you un-package the goods, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, Furthermore we will also take action to improve the quality in future
Q6: What is your terms of packing?
A6: Generally, we pack our goods in blister box and cartons, and can also accept customize packing by customers
Q7: What is your terms of payment?
A7: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance
Q8: What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
A9: Generally, it will take 5-7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order
Q10: Can you produce according to the samples?
A10: Yes, we can produce by your samples or technical drawings
If you're interested in our products or have any doubt, feel free to contact me at any time!
TAKFLY Fiber Optic Pigtail Product
