Mode-conditioning Patch cord LSZH SM/MM 2.0 / 3.0mm
Datos del producto:
| Lugar de origen: | China, Shenzhen |
| Nombre de la marca: | DF/OEM/Nuetral |
| Certificación: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Número de modelo: | TK-PC-48F-SC-OS2-50M |
Pago y Envío Términos:
| Cantidad de orden mínima: | Negociable |
|---|---|
| Precio: | negotiable denpend on QTY |
| Detalles de empaquetado: | Caja de ampolla + cartón |
| Tiempo de entrega: | Entre 5 y 9 días laborables dependiendo del QTY |
| Condiciones de pago: | Las condiciones de venta de los productos incluidos en el presente anexo son las siguientes: |
| Capacidad de la fuente: | 1000pcs/día |
|
Información detallada |
|||
| Nombre del producto: | Cable de conexión de acondicionamiento de modo | Tipo de la cara del extremo: | UPC y APC |
|---|---|---|---|
| Tipo de fibra: | G652D, G657A, G657B, OM1, OM2, OM3, OM4 | Diámetro de cable: | 2.0 / 3.0M M |
| Pérdida de inserción: | DB del ≤ 0,3 | Pérdida de retorno: | SM/UPC≥50dB,APC≥60dB;MM/UPC≥20dB |
| Repetibilidad: | 1000 veces el valor de cambio típico ≤ 0,20 dB | Temperatura de funcionamiento: | -20 ℃ ~ 65 ℃ |
| Temperatura de almacenamiento: | -40 ℃ ~ 85 ℃ | Material de vaina exterior: | Lszh |
| Radio de curvatura (estático/dinámico): | 10D/20D | Longitud: | Personalizado |
| Marca de fibra: | Corning, YOFC, OFS, y Draka | ||
Descripción de producto

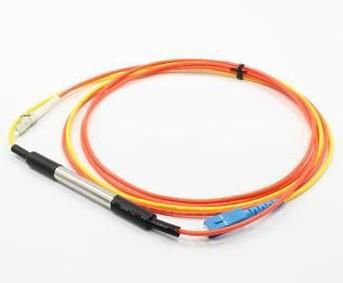

Mode-conditioning Patch cord LSZH SM/MM 2.0 / 3.0mm
Mode-conditioning patch cords are designed for longwave(1310nm) Gigabit Ethernet applications over multimode fiber. They consist an offset connection of a SM fiber to a MM fiber. There are two MM fibers on one end and one MM and one SM fiber on the other. This patch cords is required with -LX or longwave Gigabit Ethernet transceivers that use both SM and MM fibers.
When launching into a MM fiber, the transceivers can generate multiple signals that cause Differential Mode Delay (DMD) which can severely limit transmissiondistances. A mode conditioning patch cord removes these multiple signals, eliminating problems at the receiver end.
Product Applications
- CATV,LANs,WANs
- Telecommunication networks
- Active device termination
- FTTx
- Building network access
- Meet various requirements of market and clients
Product Features
- Low insertion loss and High reflection loss,Stricter than industry standards
- Good exchange ability and good durability,Stable optical properties
- Permanent displacement seal
-
Screen different value delay effection
-
Other connection mode available according customer requirements
- Standard connector,Various connector option: LC,SC,FC,ST etc.
-
Compliant with IEC61754,GR-326,TIA/EIA 568 standard
Product Specifications
Why choose TAKFLY?
Professional manufacturer:
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experienced
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
FAQ
Q1: How can I get your catalogue and price list?
A1: Please let us know your email or contacts from website directly for our catalogue and price list
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container load of mixed goods
Q3: How much will the shipping charges be?
A3: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested
Q4: Can I visit you?
A4: Sure, our factory is in Shenzhen, China. Please contact us to make an appointment
Q5: What if there is quality problem when we get the goods?
A5: If there is quanlity problem when you un-package the goods, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, Further-more we will also take action to improve the quality in future
Q6: What is your terms of packing?
A6: Generally, we pack our goods in blister box and cartons, and can also accept customize packing by customers
Q7: What is your terms of payment?
A7: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance
Q8: What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
A9: Generally, it will take 5-7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order
Q10: Can you produce according to the samples?
A10: Yes, we can produce by your samples or technical drawings
If you're interested in our products or have any doubt, feel free to contact me at any time!
