GJFXTKV Optical Cable MDPE/HDPE or LSZH 2-24F
Datos del producto:
| Lugar de origen: | China, Shenzhen |
| Nombre de la marca: | DF/OEM/Nuetral |
| Certificación: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Número de modelo: | TK-PC-48F-SC-OS2-50M |
Pago y Envío Términos:
| Cantidad de orden mínima: | Negociable |
|---|---|
| Precio: | negotiable denpend on QTY |
| Detalles de empaquetado: | Caja de ampolla + cartón |
| Tiempo de entrega: | Entre 5 y 9 días laborables dependiendo del QTY |
| Condiciones de pago: | Las condiciones de venta de los productos incluidos en el presente anexo son las siguientes: |
| Capacidad de la fuente: | 1000pcs/día |
|
Información detallada |
|||
| Nombre del producto: | Cable óptico GJFXTKV | Conteo de fibra: | 2 a 24 |
|---|---|---|---|
| Diámetro de fibra óptica (±1 µm): | 125 μm | Diámetro del revestimiento de fibra óptica (±5 µm): | 250 μm |
| Diámetro del tubo suelto (mm): | 1,8 2,2-2,5 3,0 | Refuerzo del núcleo: | Hilo de vidrio E o hilo de aramida |
| suplementario: | Relleno | Material de la funda: | Se aplicará el método siguiente: |
| Color: | Negro | Diámetro exterior (milímetros): | 6,0; 8.0 |
| Peso del cable (kg/km): | 45;55;85 | Temperatura de operación: | -20 ℃ ~ 70 ℃ |
| Marca de fibra: | Corning, YOFC, OFS, y Draka | ||
| Resaltar: | MDPE HDPE fiber optic cable,LSZH fiber optic cable,2-24F optical cable |
||
Descripción de producto
GJFXTKV Optical Cable MDPE/HDPE or LSZH 2-24F

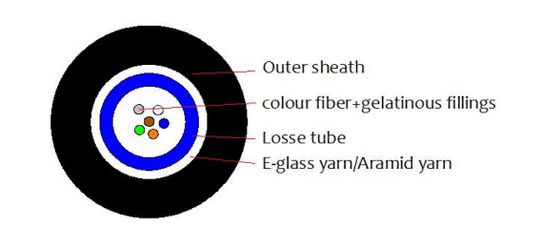

The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of water blocking glass yarn/Aramid yarn. Then the cable is completed with a PE/LSZH sheath.
Product Applications
- Adopted to indoor distribution
- Suitable for communication equipment served
- With excellent waterproofing performance
- Meet various requirements of market and clients
Product Features
- Good mechanical and temperature performance
- High strength loose tube that is hydrolysis resistant
- Special tube filling compound ensure a critical protection of fiber
- The following measures are taken to ensure the cable watertight:
- Loose tube filling compound
- 100% cable core filling
- Meet various requirements of market and clients
Optical Parameter and Properties

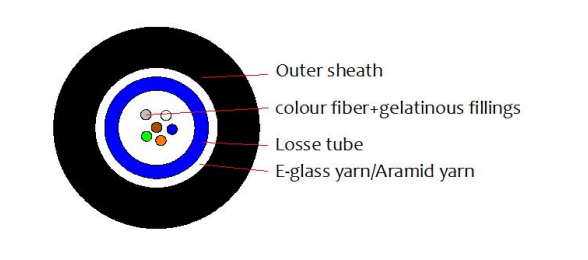

Product Structure
Other Requirements
- Length of production optical cable: 2000M
- Optical cable outer sheath printing specifications, such as:
OPTICAL FIBER CABLE GJFXTKV 24C 8.0 SM G652D MM/YY 00000M
Why choose TAKFLY?
Professional manufacturer:
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experienced
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
If you're interested in our products or have any doubt, feel free to contact me at any time!
