Outdoor ADSS Optical Cable PE/AT 2-24F 120M
Datos del producto:
| Lugar de origen: | China, Shenzhen |
| Nombre de la marca: | DF/OEM/Nuetral |
| Certificación: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Número de modelo: | TK-PC-48F-SC-OS2-50M |
Pago y Envío Términos:
| Cantidad de orden mínima: | Negociable |
|---|---|
| Precio: | negotiable denpend on QTY |
| Detalles de empaquetado: | Caja de ampolla + cartón |
| Tiempo de entrega: | Entre 5 y 9 días laborables dependiendo del QTY |
| Condiciones de pago: | Las condiciones de venta de los productos incluidos en el presente anexo son las siguientes: |
| Capacidad de la fuente: | 1000pcs/día |
|
Información detallada |
|||
| Nombre del producto: | Cables ópticos de publicidad para exteriores | Conteo de fibra: | 2 a 24 |
|---|---|---|---|
| Diámetro de fibra óptica (±1 µm): | 125 μm | Diámetro del revestimiento de fibra óptica (±5 µm): | 250 μm |
| Diámetro flojo del tubo: | 2 mm | Refuerzo central suplementario: | Hilo aramido |
| Material de protección: | Cinta de bloqueo de agua | Material de la funda: | TURBA |
| Color: | Negro | Luz(M): | 120 |
| Temperatura de operación: | -20 ℃ ~ 70 ℃ | Marca de fibra: | Corning, YOFC, OFS, y Draka |
| Resaltar: | Outdoor ADSS fiber optic cable,PE/AT fiber optic cable,24F ADSS optical cable |
||
Descripción de producto
Outdoor ADSS Optical Cable PE/AT 2-24F 120M

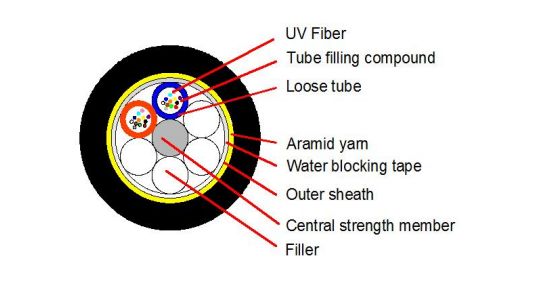

ADSS cable is loose tube stranded. Fibers, 250μm, are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound, it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
Product Applications
The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV, PE outer sheath is applied. For power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.
Product Features
- Can be installed without shutting off the power
- Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops
- Large span lengths and the largest span is over 1000m
- Good performance of tensile strength and temperature
- Meet various requirements of market and clients
Optical Parameter and Properties
Product Structure
Other Requirements
- Length of production optical cable: 2000M
- Optical cable outer sheath printing specifications, such as: OPTICAL FIBER CABLE ADSS 24C 10.7 SM G652D MM/YY 00000M
Why choose TAKFLY?
Professional manufacturer:
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experienced
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
If you're interested in our products or have any doubt, feel free to contact me at any time!
