Outdoor Waterproof Optical Cable PE/AT 2-12F
Datos del producto:
| Lugar de origen: | China, Shenzhen |
| Nombre de la marca: | DF/OEM/Nuetral |
| Certificación: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Número de modelo: | TK-PC-48F-SC-OS2-50M |
Pago y Envío Términos:
| Cantidad de orden mínima: | Negociable |
|---|---|
| Precio: | negotiable denpend on QTY |
| Detalles de empaquetado: | Caja de ampolla + cartón |
| Tiempo de entrega: | Entre 5 y 9 días laborables dependiendo del QTY |
| Condiciones de pago: | Las condiciones de venta de los productos incluidos en el presente anexo son las siguientes: |
| Capacidad de la fuente: | 1000pcs/día |
|
Información detallada |
|||
| Nombre del producto: | Cable óptico impermeable al aire libre | Conteo de fibra: | 2 a 12 |
|---|---|---|---|
| Diámetro de fibra óptica (±1 µm): | 125 μm | Diámetro del revestimiento de fibra óptica (±5 µm): | 250 μm |
| Diámetro de la subunidad (mm): | 2-3 mm | Refuerzo del núcleo: | Hilo aramido |
| Material de protección: | APL | Material de la funda: | TURBA |
| Color: | Negro | Luz(M): | 50m |
| Temperatura de operación: | -20 ℃ ~ 70 ℃ | Marca de fibra: | Corning, YOFC, OFS, y Draka |
| Resaltar: | Outdoor waterproof fiber optic cable,PE/AT fiber optic cable,2-12F fiber optic cable |
||
Descripción de producto
Outdoor Waterproof Optical Cable PE/AT 2-12F

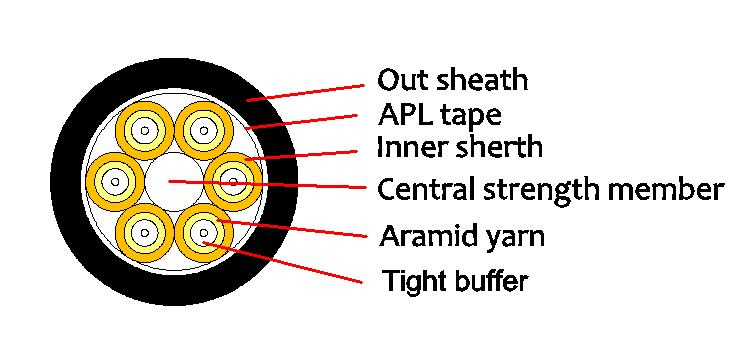

GJA waterproof optical cable uses simplex cable (Φ900µm tight buffer fibre, aramid yarn as strength member) as subunit. A fibre reinforced plastic (FRP) or Steel wire locates in the center of core as a non-metallic strength member. The subunits are stranded around the cable core. An aluminum polyethylene laminate is applied around the cable core. The cable is completed with a PE jacket.
Product Applications
- Optical fiber active connection jumper or tail fiber
- Indoor any purpose cable distribution
- Interconnect from outdoor to indoor for optical cable distribution equipment
Product Features
- Adopt a tight sleeve optical fiber for easy stripping
- Stranded strength member structure ensure the cable endure larger tensile strength
- The outer jacket material have many advantages such as anti-corrosion, anti-water and anti-ultraviolet radiation etc
- APL moisture barrier
- Meet various requirements of market and clients
Optical Parameter and Properties
Product Structure
Other Requirements
- Length of production optical cable: 2000M
- Optical cable outer sheath printing specifications, such as:
OPTICAL FIBER CABLE GJA 12C 14.8 SM G652D MM/YY 00000M
Why choose TAKFLY?
Professional manufacturer:
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experienced
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
