Indoor Tight Buffered Fiber 2000M LSZH/PVC/PU
Datos del producto:
| Lugar de origen: | China, Shenzhen |
| Nombre de la marca: | DF/OEM/Nuetral |
| Certificación: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Número de modelo: | TK-PC-48F-SC-OS2-50M |
Pago y Envío Términos:
| Cantidad de orden mínima: | Negociable |
|---|---|
| Precio: | negotiable denpend on QTY |
| Detalles de empaquetado: | Caja de ampolla + cartón |
| Tiempo de entrega: | Entre 5 y 9 días laborables dependiendo del QTY |
| Condiciones de pago: | Las condiciones de venta de los productos incluidos en el presente anexo son las siguientes: |
| Capacidad de la fuente: | 1000pcs/día |
|
Información detallada |
|||
| Nombre del producto: | Fibra interior estanca amortiguada 2000M LSZH/PVC/PU | Diámetro exterior (milímetros): | 3.0 mm |
|---|---|---|---|
| Conteo de fibra: | 2 | Refuerzo del núcleo: | Hilo aramido |
| Material: | Acero inoxidable | Diámetro (±1 µm): | 125 μm |
| Material de la chaqueta: | LSZH/PVC | Color: | Blanco o personalizado |
| Longitud de onda: | 1310nm, 1550nm | Longitud: | 2000m o personalizado |
| Temperatura de operación: | -20 ℃ ~ 70 ℃ | Diámetro del recubrimiento (±5 µm): | 250 μm |
| Marca de fibra: | Corning, YOFC, OFS, y Draka | ||
| Resaltar: | indoor tight buffered fiber optic cable,LSZH fiber optic cable 2000M,PVC tight buffered fiber cable |
||
Descripción de producto

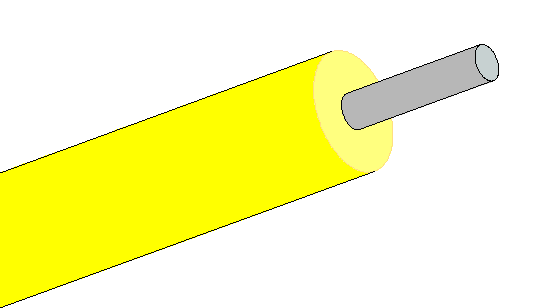

Indoor Tight Buffered Fiber 2000M LSZH/PVC/PU
Tight-buffered fiber is the basic element of various indoor cables. Because of different buffer materials, the relevant indoor cables made out of tight-buffered fibers can meet different mechanical and environmental requirements, for example, large tensile (crush), high or low temperature, frequent bends, low smoke, no corrosive, environmental, field use, etc.
Fiber Optic Cable Applications
- Optical fiber active connection jumper or tail fiber
- Indoor shaft stage and forced ventilation level wiring
- Interconnection of instruments and communication equipment
Fiber Optic Cable Features
- The coating layer has good protection and peeling performance
- Tight sleeve optical fiber has good flame retardant performance
- Accurate geometric parameters ensure low welding loss and high welding efficiency
Fiber Optic Cable Parameter and Properties
Fiber Optic Cable Structure
Product Picture
Why choose TAKFLY?
Professional manufacturer:
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experienced
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control:
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery:
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
If you're interested in our products or have any doubt, feel free to contact me at any time!
