Flat Duplex Armored Optical Cable 2000M LSZH/PVC
Datos del producto:
| Lugar de origen: | China, Shenzhen |
| Nombre de la marca: | DF/OEM/Nuetral |
| Certificación: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Número de modelo: | TK-PC-48F-SC-OS2-50M |
Pago y Envío Términos:
| Cantidad de orden mínima: | Negociable |
|---|---|
| Precio: | negotiable denpend on QTY |
| Detalles de empaquetado: | Caja de ampolla + cartón |
| Tiempo de entrega: | Entre 5 y 9 días laborables dependiendo del QTY |
| Condiciones de pago: | Las condiciones de venta de los productos incluidos en el presente anexo son las siguientes: |
| Capacidad de la fuente: | 1000pcs/día |
|
Información detallada |
|||
| Nombre del producto: | Cable óptico blindado dúplex plano | Pérdidas de interacción: | ≤0,3dB |
|---|---|---|---|
| Pérdida de retorno: | UPC SM ≥ 50 dB, APC SM ≥ 60 dB, PC MM ≥ 35 dB | Refuerzo del núcleo: | Hilo aramido |
| Material: | Acero inoxidable | Tipo de conector: | SC/UPC |
| Material de la chaqueta: | LSZH/PVC | Color: | Azul o personalizado |
| Longitud de onda: | 1310nm, 1550nm | Longitud: | 2000m o personalizado |
| Temperatura de operación: | -20 ℃ ~ 70 ℃ | Diámetro de fibra: | 50/125 |
| Marca de fibra: | Corning, YOFC, OFS, y Draka | ||
| Resaltar: | Flat duplex armored fiber optic cable,2000M LSZH PVC optical cable,Armored duplex fiber cable LSZH |
||
Descripción de producto
Flat Duplex Armored Optical Cable 2000M LSZH/PVC

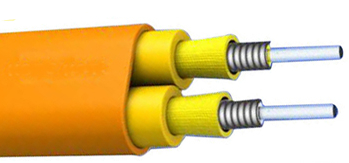

Flat Twin Duplex Indoor armored Cable uses Φ600µm or Φ900µm flame-retardant tight buffer fiber as optical communication medium. The tight buffer fiber is wrapped with a layer of steel wire, and aramid yarn as strength member units. Such unit is extruded with a layer of PVC or LSZH material as inner jacket. Then the cable is completed with a layer of flat PVC or LSZH (Low smoke, Zero halogen, Flame-retardant) jacket as out sheath.
Fiber Optic Cable Applications
- Optical fiber active connection jumper or tail fiber
- Optical connections in optical communication equipment rooms and optical distribution frames
- Interconnection of instruments and communication equipment
Fiber Optic Cable Features
- Two single-fiber as basic unit, flat twin configuration
- Single-cable with Φ600µm or Φ900µm tight buffer, aramid yarn with steel armored
- Flexible or out sheath independent strength member
- Excellent mechanical and environmental performance
- Meet various requirements of market and clients
Fiber Optic Cable Parameter and Properties
Fiber Optic Cable Structure
Product Picture
Why choose TAKFLY?
Professional manufacturer:
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experience
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control:
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery:
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
If you're interested in our products or have any questions, feel free to contact me at any time!
