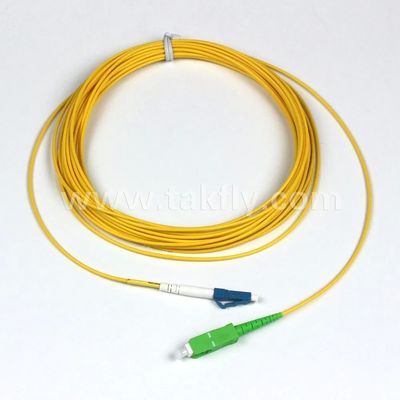

LC/UPC to SC/APC Fiber Optic Patch Cord with 3 Years Warranty 100N Lateral Pressure and >10000N Tensile Strength
Resumen del producto
LC/UPC to SC/APC Customized Optic Equipment Fiber Optic Patch Cord A high-performance fiber optic patch cord designed for connecting devices in signal routing applications, available in both singlemode and multimode configurations. Key Features Low insertion loss and high return loss MT based Multi...
Product Custom Attributes
Modelo No.:
El cable de parche LC/UPC
Estructura de conexión:
MPO-MPO
Forma de material:
Alambre redondo
Presión lateral permitido:
100 (N/100 mm) <1000 (N/100 mm)
Se permitió resistencia a la tracción:
> 10000n
Centro:
Multicore
Material de la vaina:
LSZH, PVC
Tipo de fibra:
OS1, OS2, OM1, OM2, OM3, OM4
Tipo de conector:
SC, FC, ST, LC, ODC, IPLC, PDLC, MTRJ, MPO, MTP, MU, SMA
Color de cable:
Amarillo, Azul, Verde, Aguamarina, Rojo, Beige, Púrpura
Pérdida de inserción:
≤0.3 dB
Pérdida de retorno:
≥45 dB
Longitud de onda de funcionamiento:
1310, 1510 nm
Temperatura de funcionamiento:
-40 ~ 75 ºC
Temperatura de almacenamiento:
-45 ~ 85 ºC
Resaltar:
3 Years Warranty Fiber Optic Patch Cord
,100N Lateral Pressure Fiber Optic Jumper
,>10000N Tensile Strength Fiber Optic Cable
Propiedades básicas
Lugar de origen:
Shenzhen, China
Nombre de la marca:
OED/ODM
Certificación:
RoHS, CE, Reach
Documento:
Propiedades comerciales
Cantidad de orden mínima:
10
Precio:
0.45
Detalles de empaquetado:
Caja de cartón de exportación estándar
Tiempo de entrega:
3-7 días laborables (depende de la cantidad)
Condiciones de pago:
T/T
Capacidad de la fuente:
5000 unidades/día
Descripción de producto
LC/UPC to SC/APC Customized Optic Equipment Fiber Optic Patch Cord
A high-performance fiber optic patch cord designed for connecting devices in signal routing applications, available in both singlemode and multimode configurations.
Key Features
- Low insertion loss and high return loss
- MT based Multi-fiber Connector supporting up to 12 fibers
- Exceptional reliability and stability
- Excellent repeatability and exchangeability
Applications
- Testing equipment
- FTTX+LAN networks
- Optical fiber CATV systems
- Optical communication systems
- Telecommunication infrastructure
Technical Specifications
| Parameter | Unit | FC, SC, LC/ Armoured | ST, MU | MT-RJ, MPO | E2000 |
|---|---|---|---|---|---|
| Insertion loss (typical) | dB | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 |
| Return loss | dB | ≥45 | ≥45 | ≥55 | ≥75 |
| Operating wavelength | nm | 1310, 1510 | |||
| Exchangeability | dB | ≤0.2 | |||
| Vibration | dB | ≤0.2 | |||
| Operating temperature | ºC | -40~75 | |||
| Storage temperature | ºC | -45~85 | |||
| Cable diameter | mm | φ3.0, φ2.0, φ0.9 | |||

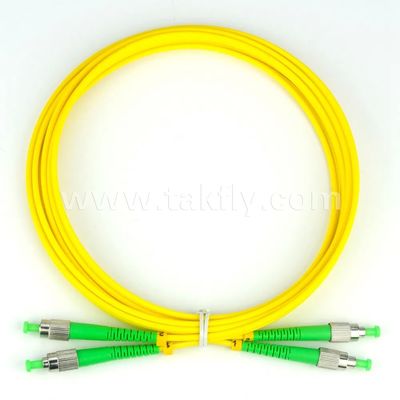

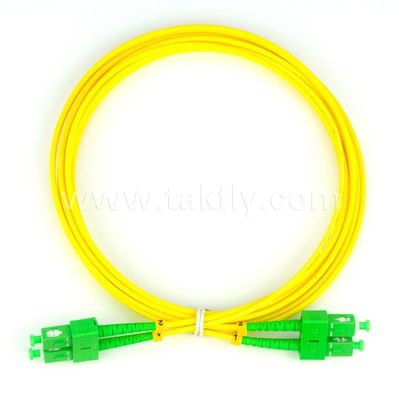

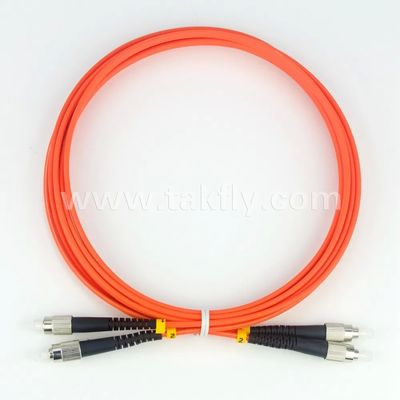

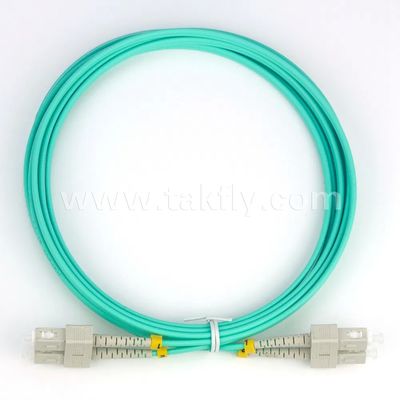

Product Images
