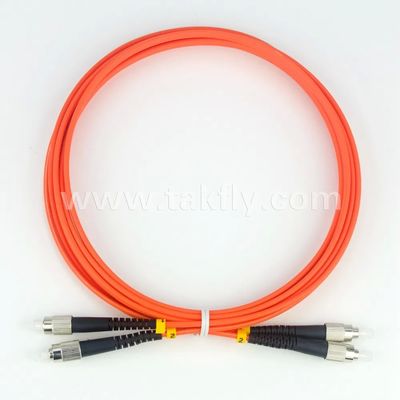

FC to FC Multimode 50/125 Duplex Fiber Optic Patch Cord for 10Gbps Networks with Low Insertion Loss and High Return Loss
Resumen del producto
FC to FC Multimode 50/125 Duplex Fiber Optical Patch Cord The FC to FC Multimode 50/125 Duplex Fiber Optical Patch Cord is designed for high-performance signal routing between devices. This OM3 50/125 multimode fiber optic cable complies with ISO/IEC 11801 standards, making it ideal for 10Gbps ...
Product Custom Attributes
Estructura de conexión:
El número de unidades de producción
Forma de material:
Alambre redondo
Presión lateral permitido:
> 1000 (N/100 mm)
Se permitió resistencia a la tracción:
> 10000n
Centro:
Núcleo único
Material de la vaina:
PVC o LSZH
Pérdida de inserción:
Menos que 0.3dB
Pérdida de retorno:
Más de 45dB
Longitud de onda de funcionamiento:
1310 1510nm
Temperatura de funcionamiento:
-40~75
Temperatura de almacenamiento:
-45 ~ 85
Tipo de fibra:
OS1, OS2, OM1, OM2, OM3, OM4
Cambio de pérdida de inserción:
Se trata de una
Cambio de pérdida de retorno:
<5db
Fuerza de inserción y extracción:
2 kg
Resaltar:
10Gbps Networks Fiber Optic Patch Cord
,Low Insertion Loss Optical Patch Cord
,High Return Loss Fiber Optic Cable
Propiedades básicas
Certificación:
RoHS, CE, ISO9001, VDE, CCC
Propiedades comerciales
Cantidad de orden mínima:
10
Precio:
0.45
Descripción de producto
FC to FC Multimode 50/125 Duplex Fiber Optical Patch Cord
The FC to FC Multimode 50/125 Duplex Fiber Optical Patch Cord is designed for high-performance signal routing between devices. This OM3 50/125 multimode fiber optic cable complies with ISO/IEC 11801 standards, making it ideal for 10Gbps networks to support growing high data rate requirements.
Key Features
- Low insertion loss and high return loss
- Compact, lightweight design for high-density connections
- Excellent exchangeability
- High reliability and stability
- Supports 10 Gigabit data transmission rates
- Available in multiple connector types: FC, LC, SC, MU, ST, MTRJ, E2000, MPO
- Polishing options: PC, UPC, and APC
- Compliant with IEC standards
Applications
- Telecommunication networks
- Fiber optic communication systems
- CATV, LAN, MAN, WAN infrastructure
- Test & Measurement equipment
- Optical access networks
Technical Specifications
| Parameter | Unit | Standard & Requirement |
|---|---|---|
| Insertion loss | dB | ≤0.20 |
| Changeability | dB | ≤ 0.20dB |
| Radius of curvature | nm | 10 ≤ r ≥25 |
| Curvature eccentricity | um | <50 |
| Fiber core undercut | nm | <50 |
| Insertion loss change | dB | < 0.1 |
| Return loss change | dB | < 5 |
| Insert & pull out (Max.) | kg | 2 |
| Insert and pull frequency | Time | > 1000 |
| Operating temperature | ºC | -40~+85 |
