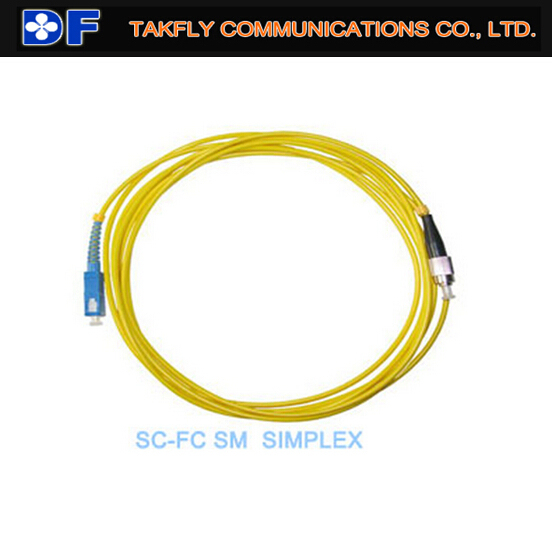

SC to FC Simplex Single Mode Fiber Optic Patch Cord with PVC Sheath and Customized Length Options
Datos del producto:
| Certificación: | RoHS, CE |
Pago y Envío Términos:
| Cantidad de orden mínima: | 100 |
|---|---|
| Precio: | 0.75 |
|
Información detallada |
|||
| Estructura de conexión: | El FC-SC | Presión lateral permitido: | > 1000 (N/100 mm) |
|---|---|---|---|
| Se permitió resistencia a la tracción: | 1000n <10000n | Centro: | Núcleo único |
| Material de la vaina: | CLORURO DE POLIVINILO | Tipo de fibra: | 0.9 mm 2.0 mm 3.0 mm |
| Longitud de fibra: | 1m 3m 5m 10m o personalizado | Conector: | SC a FC |
| Pérdida de inserción: | <0> | Pérdida de retorno: | ≥50dB |
| Repetibilidad: | ≤0.1 | Durabilidad: | <0.1dB de cambio típico, 1000 apareamiento |
| Intercambiabilidad: | ≤0.2db | Temperatura de funcionamiento: | -20 ° C ~ +70 ° C |
| Temperatura de almacenamiento: | -40°C ~ +80°C | ||
| Resaltar: | Simplex Fiber Optic Patch Cord,PVC Sheath Fiber Optic Cable,Customized Length Optical Patch Cord |
||
Descripción de producto
SC to FC SM Simplex Fiber Optic Patch Cord
High-performance SC to FC single mode simplex fiber optic patch cord designed for equipment jumper cables, cross connects, and work area connections. Manufactured using OFNR riser grade cable and 100% factory tested to ensure performance to TIA/EIA-568-B-3 standards.
Available Specifications
- Length options: 1.1m, 3m, 5m, 10m
- Cable diameter: 2.0mm or 3.0mm loose tube
- End face options: UPC or APC polish
Key Features
- Excellent durability and exchangeability
- High temperature stability
- Low insertion loss and back reflection loss
- Superior quality standard PC/UPC/APC polishing
- Compliant with Telcordia GR-326-CORE, TIA/EIA and IEC standards
- RoHS compliant, green production
- High stability in various environments
- Custom orders available
Technical Specifications
| Parameter | SM(PC) | SM(UPC) | SM(APC) | MM(PC) |
|---|---|---|---|---|
| Insertion loss | <0.3dB | ≤0.2dB | <0.3dB | <0.3dB |
| Return loss | ≥50dB | ≥50dB | ≥65dB | ≥35dB |
| Repeatability | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 |
| Durability | <0.1dB typical change, 1000 mating | |||
| Interchangeability | ≤0.2dB | |||
| Vibration | ≤0.2dB | |||
| Operating Temperature | -20°C ~ +70°C | |||
| Storage Temperature | -40°C ~ +80°C | |||
| Cable Diameter | 3.0mm, 2.0mm, 0.9mm | |||
All patch cords are available in both multimode (62.5/125µ M and 50/125µ M) and single mode cable-types, in duplex and simplex versions.
