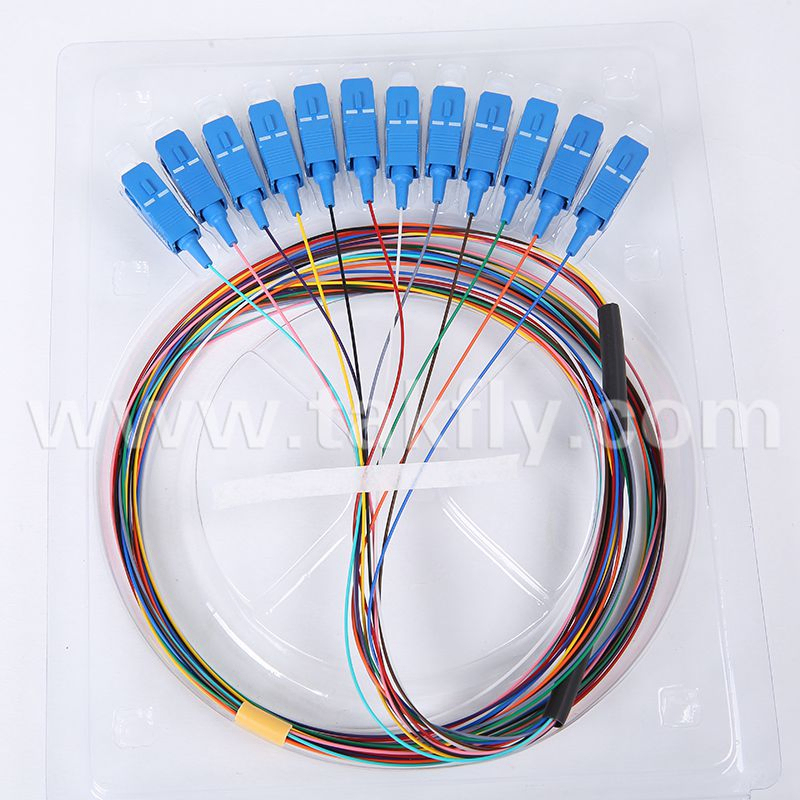

12 Core SC/UPC Single-Mode Fiber Optic Pigtail with 900um Tight Buffer and 2 Years Warranty
Datos del producto:
| Lugar de origen: | Shenzhen, China (continente) |
| Certificación: | RoHS, CE, ISO9001 |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 |
|---|---|
| Precio: | 0.21 |
|
Información detallada |
|||
| Estructura de conexión: | CAROLINA DEL SUR | Forma de material: | Alambre redondo |
|---|---|---|---|
| Presión lateral: | > 1000 (N/100 mm) | Resistencia a la tracción: | > 10000n |
| Recuento de núcleo: | 12 núcleo | Material de la vaina: | CLORURO DE POLIVINILO |
| Tipo de conector: | Sc, LC, FC, St, etc. | Chaqueta OD: | 0.9/2.0/3.0 mm |
| Tipo de esmalte: | UPC/APC | Material de férula: | Cerámica de circonía |
| Pérdida de inserción: | ≤0.3 dB | Pérdida de retorno: | ≥45 dB |
| Longitud de onda de funcionamiento: | 1310, 1510 nm | Temperatura de funcionamiento: | -40 ~ 80 °C |
| Temperatura de almacenamiento: | -45~85°C | ||
| Resaltar: | 900um Tight Buffer Fiber Optic Pigtail,2 Years Warranty Optical Pigtail,1-5 Days Delivery Fiber Pigtail |
||
Descripción de producto
12 Core SC/UPC Single-Mode Color Fiber Optic Pigtail
Fiber Optic Pigtails provide an optimal solution for fusion splicing within fiber optic enclosures. Featuring low insertion loss and low backreflection, these color-coded 900um tight buffer pigtails are designed for high fiber count splicing applications. The industry-standard color coding simplifies enclosure layout and organization.
Specifications
| Parameter | Unit | FC, SC, LC | ST, MU | MT-RJ, MPO | E2000 |
|---|---|---|---|---|---|
| Insertion loss (typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 |
| Operating wavelength | nm | 1310, 1510 | |||
| Exchangeability | dB | ≤0.1 | ≤0.1 | ≤0.2 | ≤0.2 |
| Vibration | dB | ≤0.2 | |||
| Operating temperature | °C | -40~80 | |||
| Storage temperature | °C | -45~85 | |||
| Cable diameter | mm | φ3.0, φ2.0, φ0.9 | |||
Fiber Optic Pigtail Color Coding
1. Blue
2. Orange
3. Green
4. Brown
5. Grey
6. White
7. Red
8. Black
9. Yellow
10. Purple
11. Pink
12. Aqua
Key Features and Applications
- Color-coded fiber jacket for easy identification and management
- Low insertion loss and back reflection loss
- Clearly identifiable fiber buffer colors under all lighting conditions
- Reduces installation time and prevents incorrect patching
Applications
- Data centers and premise installations
- Telecommunication networks
- Ethernet, fiber channel, ATM, LAN, MAN and WAN
- Data communication systems
- Indoor applications
Product Images
Applications
Order Information
Certificates
Factory Photo
