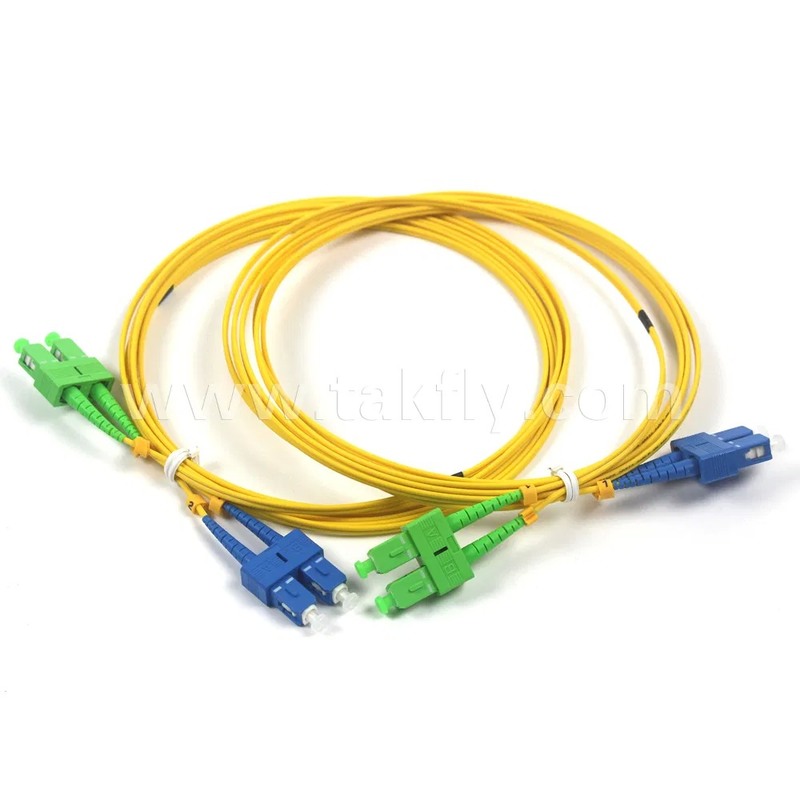

SC APC Single Mode Duplex Fiber Optic Patch Cord with 5 Years Warranty and 0.9mm-3.0mm Cable Diameter for Fast 1-3 Days Delivery
Datos del producto:
| Certificación: | RoHS, CE |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 |
|---|---|
| Precio: | 1.08 |
|
Información detallada |
|||
| Modelo no.: | TK-000902 | Estructura de conexión: | CAROLINA DEL SUR |
|---|---|---|---|
| Forma de material: | Alambre plano | Presión lateral permitido: | > 1000 (N/100 mm) |
| Se permitió resistencia a la tracción: | 1000n <10000n | Centro: | Núcleo único |
| Material de la vaina: | PVC/LSZH | Tipo de conector: | SC/APC |
| Diámetro de cable: | 0.9 mm 2.0 mm 3.0 mm | Longitud del cable: | 1m, 3m, 5m o personalizado |
| Pérdida de inserción: | Menos de 1dB | Pérdida de retorno: | más que 55db |
| Temperatura de funcionamiento: | -40°C~ +80°C | Especificaciones de la virola de cerámica: | Desviaciones de concentricidad de 125,5 um: <1 um |
| Fibra adecuada: | UPC,PC/APC(9/125um) | ||
| Resaltar: | 5 Years Warranty Fiber Optic Patch Cord,0.9mm-3.0mm Cable Diameter Fiber Optic Cable,Within 1 to 3 Days Delivery SC APC Patch Cord |
||
Descripción de producto
SC APC UPC Single Mode Duplex Fiber Optic Patch Cord
Key Features:
- Low insertion loss and return loss
- Free-floating ceramic ferrule
- UL-rated plastic housing and boot
- Available in various boot colors
- High precision alignment
Availability Options:
- Pre-assembled one-piece connector or connector kits
- Housing kits without ferrule available
- UPC, PC and APC connector types available
Applications:
- CATV, metro test equipment; FTTH
- Telecommunication networks
- Local area networks (LAN)
- Wide area networks (WAN)
- Premise installations
- Data processing networks
- Video and military active device termination
- Optical Distribution Frame
- Optical Network Equipment
Technical Parameters:
| Item | Single mode | Multi mode |
|---|---|---|
| Insertion loss | PC≤0.20dB, UPC ≤0.25dB, APC ≤0.25dB | <0.3dB |
| Return loss | PC ≥50 dB, UPC ≥55 dB & APC ≥60 dB | >25dB |
| Insert-pull test | 1000(times) <0.2dB | |
| Operating temperature | -40°C~ +80°C | |
| Ceramic ferrule spec | 125.5um concentricity deviations: <1um | 127um concentricity deviations: <3um |
| Suitable fiber | UPC,PC/APC(9/125um) | PC(50/125um, 62.5/125um) |
Order Information:
| CODE | CONNECTOR | CABLE SIZE | FIBER TYPE | CABLE TYPE | FIGURE |
|---|---|---|---|---|---|
| H02 | 1. SM Simplex | 1. 0.9 2. 2.0 3. 3.0 |
1.9/125 2.OM3 3.50/125 4.62.5/125 |
1.Yellow PVC 2.Orange PVC 3.White PVC 4.Yellow LSZH 5.Orange LSZH 6.White LSZH |
1.Blue 2.Beige 3. Green 4.Black 5.Blue and Yellow 6.Red and Black |
| 2. MM Simplex | |||||
| 3. APC Simplex | |||||
| 4. SM Duplex | |||||
| 5. MM Duplex | |||||
| 6. APC Duplex |
Takfly Worldwide Exhibition:
Takfly Certification:
Thank you for considering our products. Should you have any questions, please feel free to contact us. Takfly looks forward to hearing from you!
