OM3 Duplex LC Fiber Patch Cord 0.9mm-3.0mm PVC/LSZH
Datos del producto:
| Certificación: | RoHS, CE, ISO9001, VDE, CCC |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 |
|---|---|
| Precio: | 1.49 |
|
Información detallada |
|||
| Estructura de conexión: | con una longitud de más de 20 mm | Forma de material: | Alambre redondo |
|---|---|---|---|
| Presión lateral permitido: | 100 (N/100 mm) <1000 (N/100 mm) | Se permitió resistencia a la tracción: | 100n <1000n |
| centro: | Multicore | Material de la vaina: | PVC o LSZH |
| Tipo de conector: | SC, FC, ST, LC, MTRJ, MPO, MTP, MU, SMA, ECT | Diámetro exterior del cable: | 0.9 mm, 1.6 mm, 1.8 mm, 2.0 mm, 2.4 mm, 2.8 mm, 3.0 mm |
| MPO pulido MTP: | PC, UPC, APC | Tipo de fibra: | OS1, OS2, OM1, OM2, OM3, OM4 |
| Material de la chaqueta de cable: | PVC, LSZH, OFNP, PE | Núcleos de fibra: | SX, DX, 4 ~ 144 núcleos de múltiples fibras |
| Pérdida de retorno: | PC> 30dB; APC> 50DB | Pérdida de inserción: | <0.3 dB |
| Temperatura de funcionamiento: | -45 a +85 grados | ||
| Resaltar: | OM3 duplex LC fiber patch cord,0.9mm PVC fiber optic cable,LSZH duplex LC patch cord |
||
Descripción de producto
OM3 Duplex LC Fiber Optic Patch Cords
Product Description
Optical Fiber Connector provides quick and easy fiber termination in the field. Available for 900 micron applications, allowing installers to terminate and make connections in minutes at equipment and fiber patch panels. Our quick connector system eliminates the need for epoxy, adhesives, or costly curing ovens. All key manufacturing steps are completed in the factory to ensure excellent connection quality at a competitive price.
Key Features
- Low insertion loss
- High return loss (low reflection at interface)
- Easy installation
- Cost-effective solution
- Reliable performance
- Low environmental sensitivity
- User-friendly design
Applications
- CATV systems
- Active device termination
- Telecommunication networks
- Metro networks
- Local Area Networks (LANs)
- Data processing networks
- Test equipment
- Premise installation
- Wide Area Networks (WANs)
Technical Specifications
| Parameter | Singlemode (UPC) | Singlemode (APC) | Multimode |
|---|---|---|---|
| Insertion loss | ≤ 0.2dB | ≤ 0.3dB | ≤ 0.2dB |
| Return loss | ≥50dB | ≥60dB | ≥30dB |
| Durability | ≤ 0.1dB typical change, 1000 times mating | ||
| Operating Temperature | -45°C to +85°C | ||
| Ferrule Hole Sizes | 125.0+1/-0μm, Concentricity: ≤1.0μm 125.3+1/-0μm, Concentricity: ≤1.0μm 125.5+1/-0μm, Concentricity: ≤1.0μm 126.0+1/-0μm, Concentricity: ≤1.0μm |
125.0+1/-0μm, Concentricity: ≤0.5μm 125.3+1/-0μm, Concentricity: ≤0.5μm 125.5+1/-0μm, Concentricity: ≤0.5μm 126.0+1/-0μm, Concentricity: ≤0.5μm |
125.0μm, Concentricity: ≤3.0μm 127.0μm, Concentricity: ≤3.0μm 128.0μm, Concentricity: ≤3.0μm |
Product Variants
| Item | Connector Description | Item | Connector Description |
|---|---|---|---|
| PC/UPC/APC | PC/UPC/APC | ||
| Connector Singlemode 9/125 | ST | Connector Multimode (50/125 or 62.5/125) | ST |
| SC | SC | ||
| FC | FC | ||
| LC | LC | ||
| MU | MU | ||
| MTRJ(female) | MTRJ(female) | ||
| MTRJ(male) | MTRJ(male) | ||
| DIN | E2000 | ||
| E2000 |

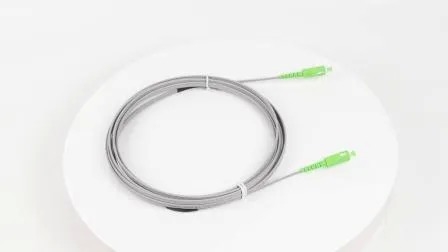

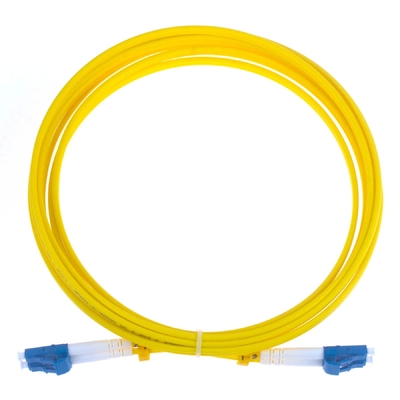

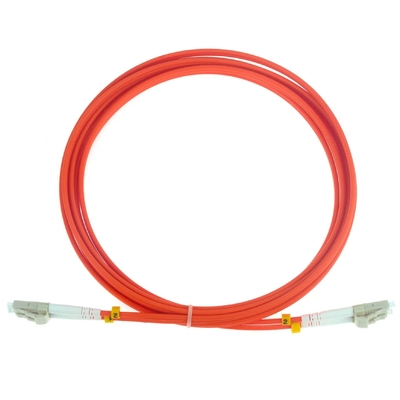

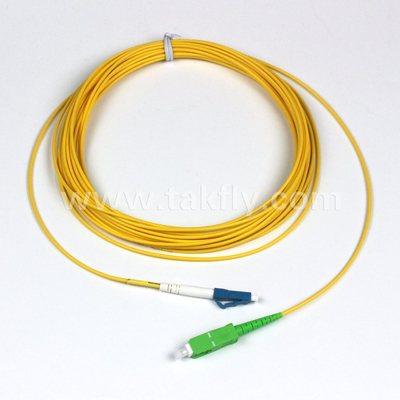

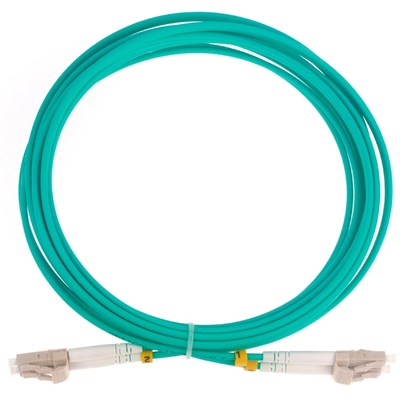

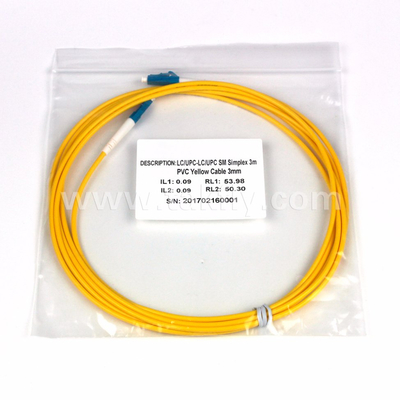

Product Images
