SC Simplex Fiber Optic Adapter Multimode APC UPC Low Loss
Datos del producto:
| Lugar de origen: | China |
| Nombre de la marca: | OEM |
| Certificación: | CE/REACH/RoHS |
| Número de modelo: | TK-FOA-SCS-888 |
Pago y Envío Términos:
| Cantidad de orden mínima: | 100 |
|---|---|
| Precio: | 0.08USD |
| Detalles de empaquetado: | Caja de cartón de 55*40*35 cm |
| Tiempo de entrega: | 3 a 5 días |
| Condiciones de pago: | T/T, Western Union, Moneygram |
| Capacidad de la fuente: | 100000/WEEK |
|
Información detallada |
|||
| pérdida de inserción: | ≤ 0,2 dB | Conteo de fibra: | El simple |
|---|---|---|---|
| Color: | Azul/Aguamarina/Rosa/Verde/Beige/Verde lima | Temperatura de funcionamiento: | -40~85℃ |
| Resaltar: | SC simplex fiber optic adapter,multimode APC fiber adapter,low loss UPC fiber adapter |
||
Descripción de producto

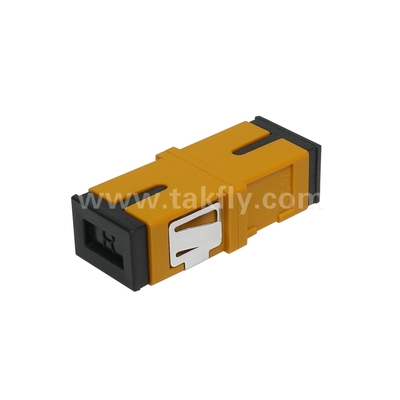

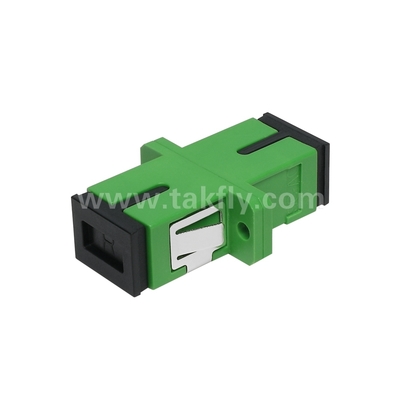

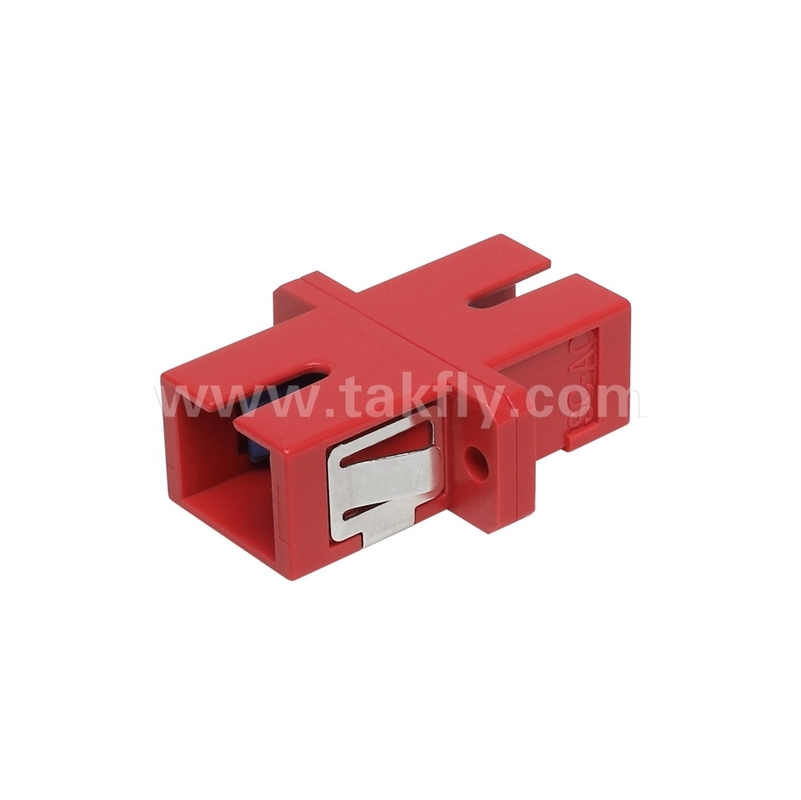

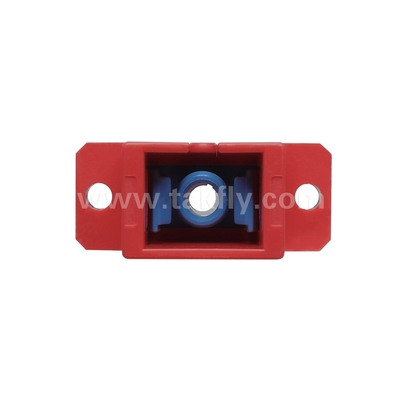

SC Simplex Fiber Optic Adapter Multimode APC UPC Low Loss
Product Attributes
| Attribute | Value |
|---|---|
| Insertion loss | ≤0.2dB |
| Fiber count | Simplex |
| Color | Blue/Aqua/Rose/Green/Beige/Lime green |
| Operating temperature | -40~85℃ |
Product Description
The fiber optic adapter is designed for connecting fiber optic connectors, enabling efficient coupling of output power from transmitting to receiving fibers. These SC adapters are ideal for cable-to-cable or cable-to-equipment connections. TAKFLY SC adapters feature easy installation, low insertion loss, excellent interchangeability, and superior temperature resistance.
Key Features
- Compatible with both single mode and multimode applications
- Available with zirconia sleeves or phosphor bronze sleeves
- NTT standard compatible design
- Space-saving options: available with or without flanges for duplex configurations
- Compliant with JIS5974 and Bellcore GR-326 standards
- Meets IEC874-14 & IEC874-19 specifications
- All components ROHS compliant
Technical Specifications
| Adapter type | SC | Optical fiber | Singlemode or Multimode |
| Insertion loss | ≤0.2dB | Mating Durability (500 times) | Additional Loss≤0.1dB |
| Temperature Stability (-40℃～85℃) | Additional Loss≤0.2dB | Operating Temperature | -40℃～+85℃ |
| Storage Temperature | -40℃～+85℃ |
