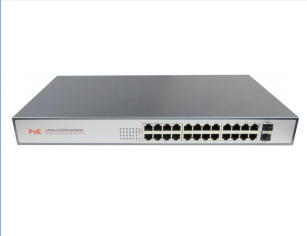

26-Port Full Gigabit PoE Fiber Switch (DF-2F-24GP)
Datos del producto:
| Lugar de origen: | China, Shenzhen |
| Nombre de la marca: | DF/OEM/Nuetral |
| Certificación: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Número de modelo: | Conmutador de fibra PoE Gigabit completo de 26 puertos (DF-2F-24GP) |
Pago y Envío Términos:
| Cantidad de orden mínima: | Negociable |
|---|---|
| Precio: | negotiable denpend on QTY |
| Detalles de empaquetado: | Caja de ampolla + cartón |
| Tiempo de entrega: | Entre 5 y 9 días laborables dependiendo del QTY |
| Condiciones de pago: | Las condiciones de venta de los productos incluidos en el presente anexo son las siguientes: |
| Capacidad de la fuente: | 1000pcs/día |
|
Información detallada |
|||
| Nombre del producto: | Conmutador de fibra PoE Gigabit completo de 26 puertos (DF-2F-24GP) | Puerto de Poe: | Port1-24 puede admitir POE @ IEEE802.3af/at |
|---|---|---|---|
| Puertos de red: | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T | Acuerdo del POE: | IEEE802.3af/en el estándar internacional |
| Modo de reenvío: | Almacenar y reenviar (velocidad de cable máxima) | Capacidad de cambio: | 52Gbps |
| Peso: | <4,0 kg/<4,8 kg | Garantía: | 3 años, mantenimiento de por vida |
| Temperatura de trabajo: | -20~+55°C; 5%~90% RH sin condensación | Temperatura de almacenamiento: | -40~+75°C; 5%~95% RH sin condensación |
| Dimensiones (L*W*H): | 440*290*44,5mm | Marca de fibra: | Corning, YOFC, OFS, y Draka |
| Resaltar: | 26-port Gigabit PoE switch,Gigabit fiber switch with PoE,Full Gigabit Ethernet fiber switch |
||
Descripción de producto
26-Port Full Gigabit PoE Fiber Switch (DF-2F-24GP)
Product Overview
The DF-4F4G-24GP is a high-performance network switch featuring 24 10/100/1000BASE-T ports with 30-watt 802.3at Power over Ethernet Plus (PoE+) copper interfaces, plus 4 10/100/1000BASE-T RJ45 ports combined with 4 additional 1000BASE-X SFP slots. With a total PoE power budget of up to 250/300/400 watts and non-blocking data switching performance, this switch meets the demanding requirements of HD IP surveillance systems.
This rack-mountable solution provides a safe and reliable power infrastructure for small to medium businesses deploying Power over Ethernet networks. The PoE in-line power complies with IEEE 802.3at/af standards, delivering Gigabit speed data and up to 30 watts of power per port to 24 PoE-compliant devices with a combined power output budget of up to 400 watts.
Key Features
- Full Gigabit Access with Fiber Uplink: All series support gigabit Ethernet port and gigabit SFP fiber port combinations for flexible networking configurations
- High Performance: Supports non-blocking wire speed forwarding with full duplex based on IEEE802.3x and half duplex based on backpressure
- Intelligent PoE Power Management: PoE ports support priority mechanisms to ensure high-priority devices remain powered during limited power availability
- Comprehensive PoE Support: 24×10/100/1000Base-T RJ45 ports provide PoE power for security monitoring, teleconferencing systems, and wireless coverage
- Standards Compliance: Conforms to IEEE 802.3af/at PoE standards with automatic PoE device recognition
- Rack-Mountable Design: Standard 1U form factor suitable for rack installation
- High Power Capacity: Maximum PoE output power reaches 400W (600W for AT models) with up to 30W per port
Reliability & Safety
This equipment fully meets CCC, CE, FCC, and RoHS safety regulations, ensuring safe and reliable operation. The ONV self-developed power supply features high redundancy design for long-term stable PoE power output.
Ease of Use
Users can easily monitor device status through power indicators (PWR), port status indicators, and PoE operation indicators. The unmanaged design enables plug-and-play operation with no configuration required.
Technical Specifications
Note: Product specifications are subject to change without prior notice. For optimal transmission distance, we recommend using standard Cat5e/6 cables.
Product Images
Why Choose TAKFLY
- 25+ years of manufacturing experience in fiber optic products
- 450+ assembly workers with 3+ years of experience
- 10+ R&D Engineers dedicated to innovation
- 16 Germany-imported Injection Machines and production lines
- 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
- Comprehensive testing equipment: tension strength testers, crush resistance testers, power meter testers, light checkers
- OEM branding accepted
- Global exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control
- Raw material spot checking before production
- Full inspection after every individual process
- Comprehensive half-done production checks
- Complete finished product inspection before packing
- Pre-shipping spot checks
Delivery Information
- Samples: 1-3 working days
- Mass Production Orders: 3-7 working days
- Packaging: Plastic bags, cartons, and pallets available per request
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
Yes, we may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
Shipping charges depend on your shipment size and shipping method. We will provide charges upon request.
Q4: Can I visit you?
Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is quality problem when we get the goods?
If you encounter quality issues upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, along with implementing quality improvements for future production.
Q6: What is your terms of packing?
We typically pack goods in blister boxes and cartons, but can accommodate custom packaging requests from customers.
Q7: What is your terms of payment?
T/T 30% as deposit, and 70% balance before delivery. We provide photos of products and packaging before final payment.
Q8: What is your terms of delivery?
EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
Generally 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
Q10: Can you produce according to the samples?
Yes, we can manufacture products based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
