DF-1.25G-16P-2E-2F Product Description
Datos del producto:
| Lugar de origen: | China, Shenzhen |
| Nombre de la marca: | DF/OEM/Nuetral |
| Certificación: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Número de modelo: | DF-1.25G-16P-2E-2F Descripción del producto |
Pago y Envío Términos:
| Cantidad de orden mínima: | Negociable |
|---|---|
| Precio: | negotiable denpend on QTY |
| Detalles de empaquetado: | Caja de ampolla + cartón |
| Tiempo de entrega: | Entre 5 y 9 días laborables dependiendo del QTY |
| Condiciones de pago: | Las condiciones de venta de los productos incluidos en el presente anexo son las siguientes: |
| Capacidad de la fuente: | 1000pcs/día |
|
Información detallada |
|||
| Nombre del producto: | DF-1.25G-16P-2E-2F Descripción del producto | Consumo de energía: | El dispositivo <20W, fuente de alimentación POE <350W |
|---|---|---|---|
| Puertos de red: | 1 ～ 16 puertos: puerto Ethernet de 10/100/1000 Mbps, control adaptativo Puerto Ethernet de ENLACE AR | Acuerdo del POE: | Estándares de IEEE802.3 af/at |
| Modo de fuente de alimentación PoE: | Método de final de tramo | Capacidad de cambio: | 40Gbps |
| Peso: | 4,5 kg | Fiabilidad: | >50000h |
| Temperatura de trabajo: | -10 ℃ ~ 55 ℃ | Temperatura de almacenamiento: | -40 ℃ ~ 85 ℃ |
| Dimensiones (L*W*H): | 442 mm × 224 mm × 44,5 mm | Marca de fibra: | Corning, YOFC, OFS, y Draka |
| Resaltar: | 16-port Ethernet fiber switch,1.25G fiber optic switch,2E-2F Ethernet switch |
||
Descripción de producto
DF-1.25G-16P-2E-2F Product Description
Product Overview

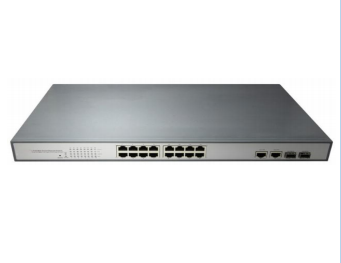

DF-1.25G-16P-2E-2F is a 20-Port Gigabit PoE Switch with 16 PoE Ports, 2 RJ45 Uplink ports, 2 SFP Gigabit Uplink Optical Ports, port 1 to port 16 supports PoE IEEE 802.3at international standard, each port power is 30W. Total power is 350W.
This POE network switch can meet customer’s general demands. POE network switch with POE function, designed for high-definition network camera’s internet access. It provides 16 1000Mbps PoE Ethernet switches, complies with IEEE802.3af/at standards, and also simplifies wiring, avoids the troublesome of installing power socket for powered devices.
Product Features
-
20-Port Gigabit PoE Switch with 16 PoE Ports, 2 RJ45 uplink, 2 SFP Gigabit Uplink Optical Ports;
-
Supply power to wireless access points AP and network IP surveillance cameras;
-
Port 1 to Port 16 supports IEEE802.3at power (each port maximum power is 30W);
-
16x 10/100/1000 Mbps ports + 2RJ45 + 2x SFP gigabit optical uplink ports;
-
Compatible with IEEE 802.3 10i and IEEE 802.3u standard;
-
The packet forwarding speed is 1.488Mbps of one wire-speed port;
-
Port features with auto-flip(Auto MDI/MDIX);
-
Network port comes with lighting-proof;
-
All ports support wire-speed switching, frame size within the range of 64 to 1536 can achieve wire-speed;
-
Standard 1U rack design, suitable for rack installation mode;
-
Automatic adjustment, plug and play, no need software and protocol conversion.
Highlight
-
No Frame Loss IP Data Transmission
-
PoE+ Standard 250m in CCTV Mode
-
10 KB Jumbo frames support
-
Few video time delay
-
4KV Lightning Protection
Technical Specifications
Note:
If any changes with product specification, forgive without prior notice.
1) As transmission distance has certain relation with the cable, so you are suggested to use standard cat5e/6
cable for longest distance needed.
Product Images
Why Choose TAKFLY
- 25+ years manufacturing experience in fiber optic products
- 450+ assembly workers with 3+ years experience
- 10+ R&D Engineers dedicated to innovation
- 16 Germany imported Injection Machines and production lines
- 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
- Comprehensive testing equipment: tension strength testers, crush resistance testers, power meter testers, light checkers
- OEM branding accepted
- Global exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control
- Raw material spot checking before production
- Full inspection after every individual process
- Comprehensive half-done production checks
- Complete finished product inspection before packing
- Pre-shipping spot checks
Delivery Information
- Samples: 1-3 working days
- Mass Production Orders: 3-7 working days
- Packaging: Plastic bags, cartons, and pallets available per request
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
Yes, we may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
Shipping charges depend on your shipment size and shipping method. We will provide charges upon request.
Q4: Can I visit you?
Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is quality problem when we get the goods?
If you encounter quality issues upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, along with implementing quality improvements for future production.
Q6: What is your terms of packing?
We typically pack goods in blister boxes and cartons, but can accommodate custom packaging requests from customers.
Q7: What is your terms of payment?
T/T 30% as deposit, and 70% balance before delivery. We provide photos of products and packaging before final payment.
Q8: What is your terms of delivery?
EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
Generally 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
Q10: Can you produce according to the samples?
Yes, we can manufacture products based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
